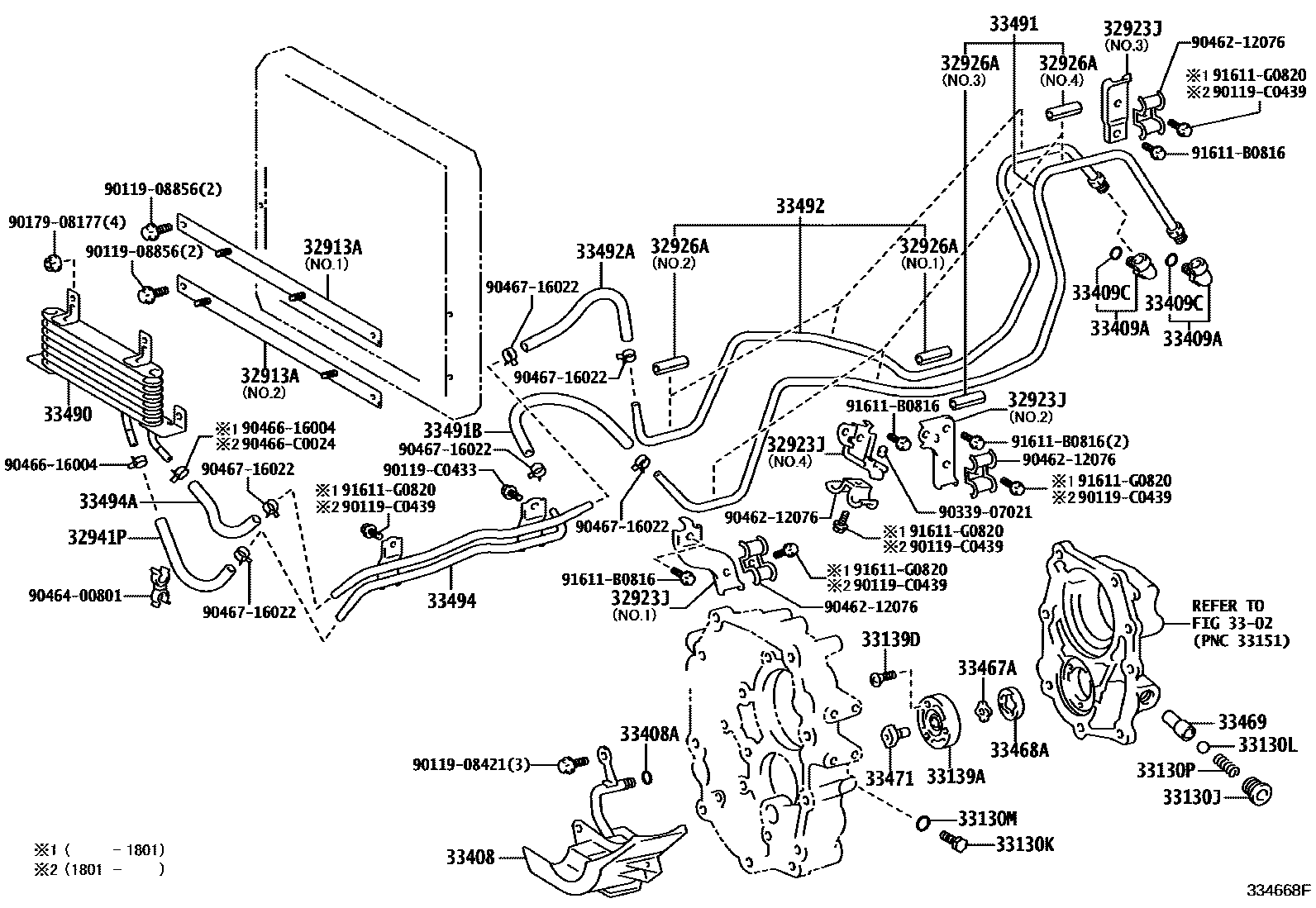

OIL PUMP, OIL COOLER & PIPE (MTM)

0001 1 0002 1

32913ABRACKET, TRANSMISSION OIL COOLER

main32913-36070iGRB53,XZB53201301-201507

NO.2

main32913-36080iGRB53..EX,STD201801

NO.1

32923JCLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.4

main32923-0S010iGRB53201507-201801

NO.1

main32923-0S030iGRB53201301-201507

NO.2

main32923-25010iXZB53201403-201507

NO.1

main32923-36040iXZB53201403-201507

NO.2

main32923-36060iXZB53201403-201507

NO.3

main32923-36080iGRB53201301-201507

NO.4

main32923-65030iXZB53201403-201507

NO.4

32926ACUSHION, OIL COOLER TUBE(MTM)

main32926-36060iGRB53..LX201801-202412

NO.1

main32926-60010×3iGRB53201507-201801

NO.2

32941PHOSE, OIL COOLER INLET, NO.1

main32941-36130iGRB53,XZB53201301-201507

3302

33130JPLUG, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90341-18039iGRB53,XZB53201301-201507

33130KPLUG, NO.2(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90341-08001iGRB53,XZB53201301-201507

33130LBALL(FOR TRANSMISSION OIL PUMP COVER)

main90360-10003iGRB53,XZB53201301-201507

33130MRING, O, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90301-06196iGRB53,XZB53201301-201507

33130PSPRING, COMPRESSION(FOR TRANSMISSION OIL PUMP COVER)

main90501-08145iGRB53,XZB53201301-201507

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-36010iGRB53,XZB53201301-201507

33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)

main90149-60053×3iGRB53..LX201801-202412

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-36010iGRB53201507-201801

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19009iGRB53,XZB53201301-201507

33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90407-20004×2iGRB53,XZB53201301-201507

33409CRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)

main90301-11006×2iGRB53,XZB53201301-201507

33467AROTOR, OIL PUMP DRIVE (FOR MANUAL TRANSMISSION)

main33467-36010iGRB53,XZB53201301-201507

33468AROTOR, OIL PUMP DRIVEN (FOR MANUAL TRANSMISSION)

main33468-36010iGRB53,XZB53201301-201507

33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)

main33469-60010iGRB53,XZB53201301-201507

33471SHAFT, MANUAL TRANSMISSION OIL PUMP DRIVE, NO.1

main33471-36010iGRB53,XZB53201301-201507

33490COOLER ASSY, MANUAL TRANSMISSION OIL

main32910-36060iGRB53201507-201801

33491TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1

main33491-0S010iGRB53201301-201507

main33491-36070iXZB53201403-201507

33491BHOSE, NO.1 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main32941-36100iXZB53201403-201507

main90445-17103iGRB53201301-201507

33492TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2

main33492-0S010iGRB53..EX,STD201801

main33492-36060iXZB53201403-201507

33492AHOSE, NO.2 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main32942-35070iXZB53201403-201507

main90445-17103iGRB53201301-201507

33494TUBE, MANUAL TRANSMISSION OIL COOLER, NO.3

main33494-0S010iGRB53..LX201801-202412

main33494-36090iXZB53201403-201507

33494AHOSE, NO.3 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90445-17088iGRB53,XZB53201301-201507

9011908421

main90119-08421

9011908856

main90119-08856

90119C0433

main90119-C0433

90119C0439

main90119-C0439

9017908177

main90179-08177

9033907021

main90339-07021

9046212076

main90462-12076

9046400801

main90464-00801

9046616004

main90466-16004

90466C0024

main90466-C0024

9046716022

main90467-16022

91611B0816

main91611-B0816

91611G0820

main91611-G0820

40 parts on this diagram · 2 diagrams in section
