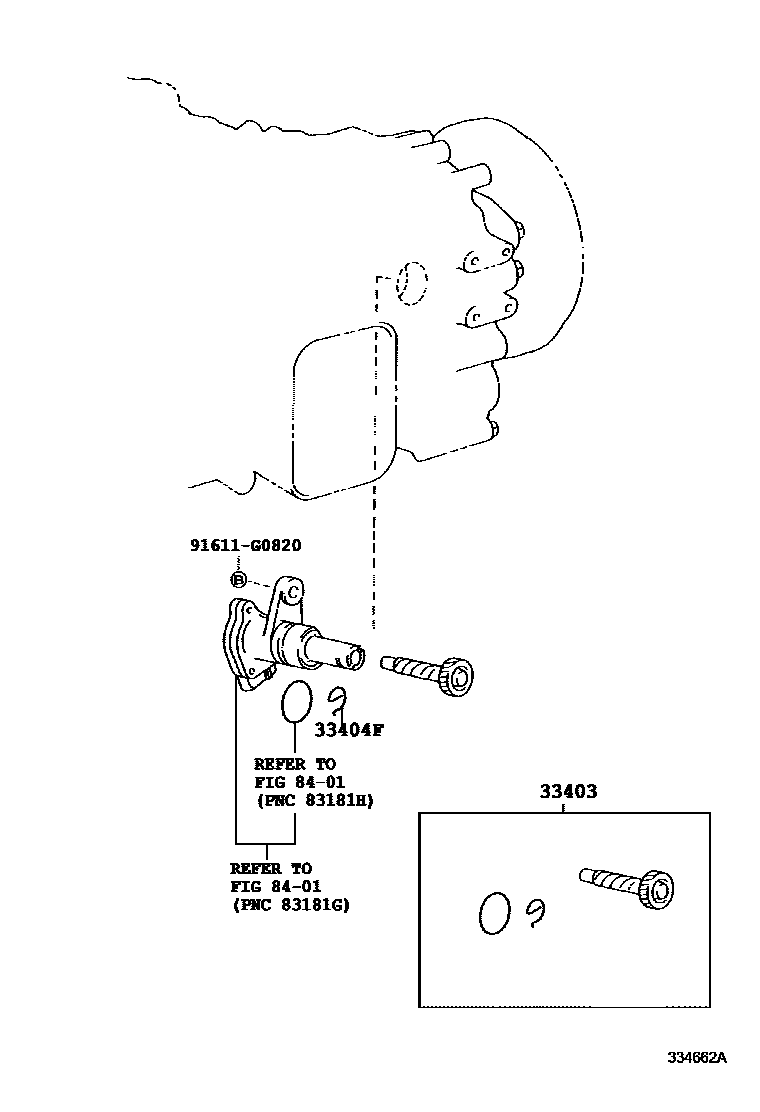

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39435iXZB53201403-201507

N=21,MARK 21:6

main33482-39465iTRB53201301-201910

N=24,MARK 24:6

main33482-80027iGRB53..CBU201301-201911

N=21,MARK 21:6

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iTRB53201301-201911

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

main91611-G0820

4 parts on this diagram · 1 diagram in section
