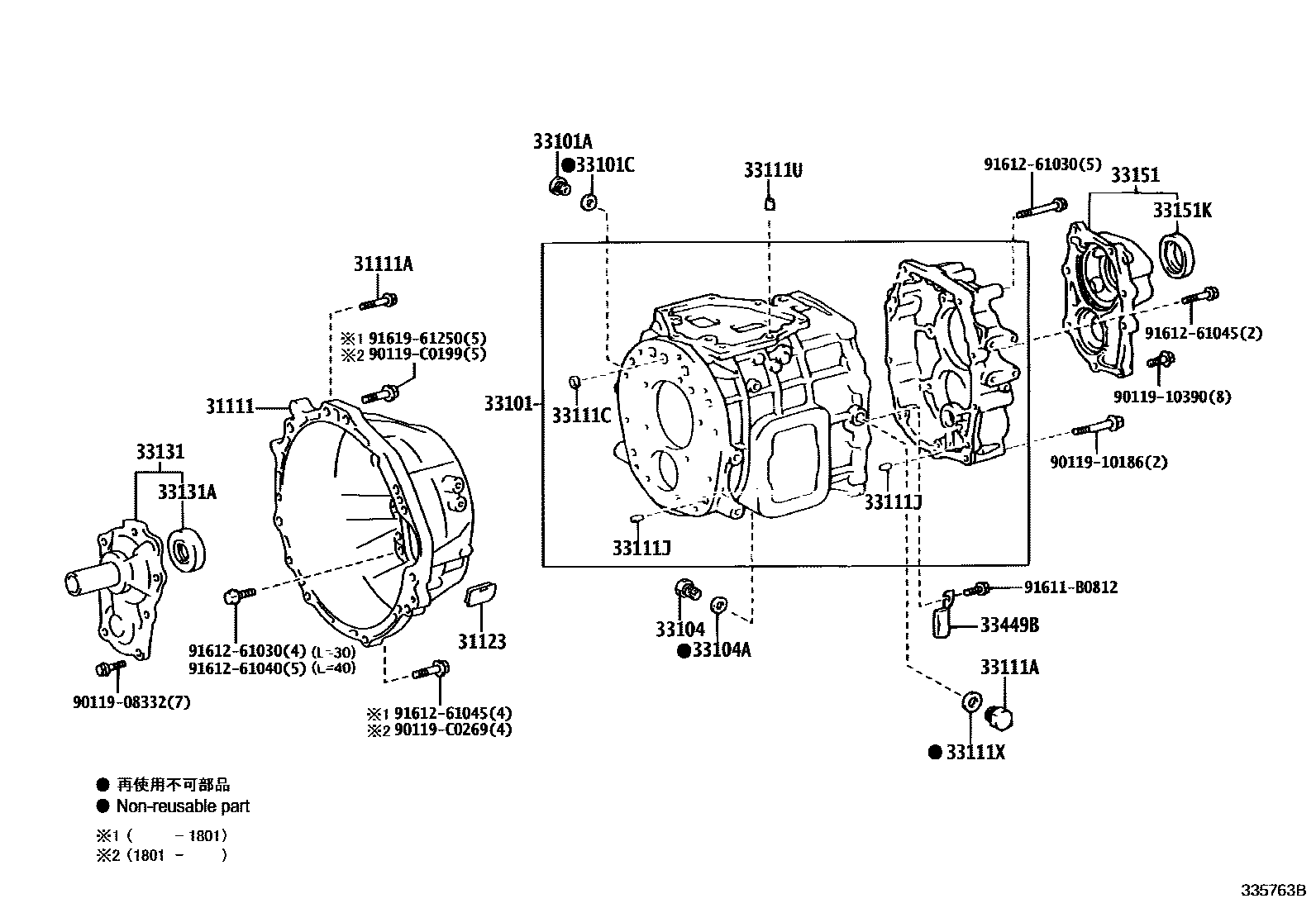

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31111ABOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
31123COVER, CLUTCH HOUSING, NO.2
33101CASE SUB-ASSY, MANUAL TRANSMISSION
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11
L=12,OD=13
33111XGASKET, TRANSMISSION CASE PLUG
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151KSEAL, TYPE T OIL
9011908332
main90119-08332
9011910186
main90119-10186
9011910390
main90119-10390
90119C0199
main90119-C0199
90119C0269
main90119-C0269
91611B0812
main91611-B0812
9161261030
main91612-61030
9161261040
main91612-61040
9161261045
main91612-61045
9161961250
main91619-61250
28 parts on this diagram · 3 diagrams in section
