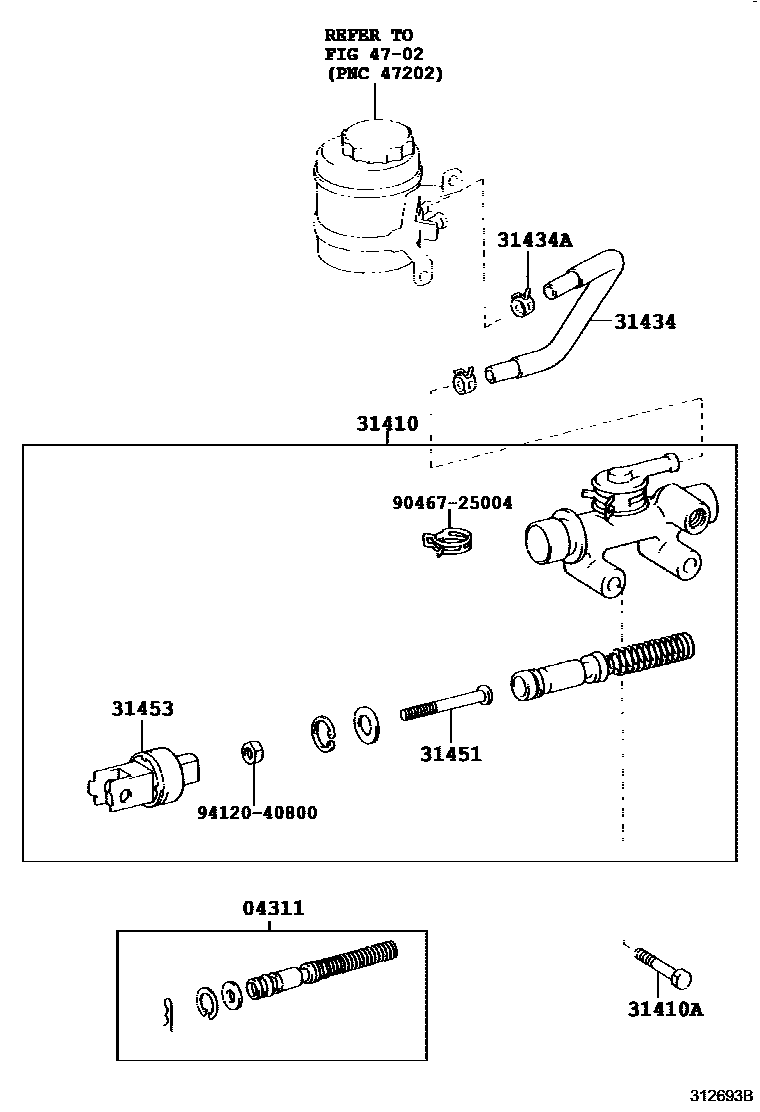

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-26050iTRB53,XZB53201301-201507

31410CYLINDER ASSY, CLUTCH MASTER

main31420-36130iTRB53201507-201801

main31420-36260iGRB53201507-201801

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90119-08108×2iGRB53,TRB53201301-201401

main90119-C0412×2iGRB53,TRB53..EX,STD201801

31434TUBE, CLUTCH RESERVOIR

main31434-36270iGRB53,TRB53,XZB53201301-201507

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-51300×2iGRB53,TRB53,XZB53201301-201507

main96138-41501×2iGRB53..EX,STD202412

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iTRB53,XZB53201301-201507

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-35013iTRB53,XZB53201301-201507

4702

9046725004

main90467-25004

9412040800

main94120-40800

10 parts on this diagram · 1 diagram in section
