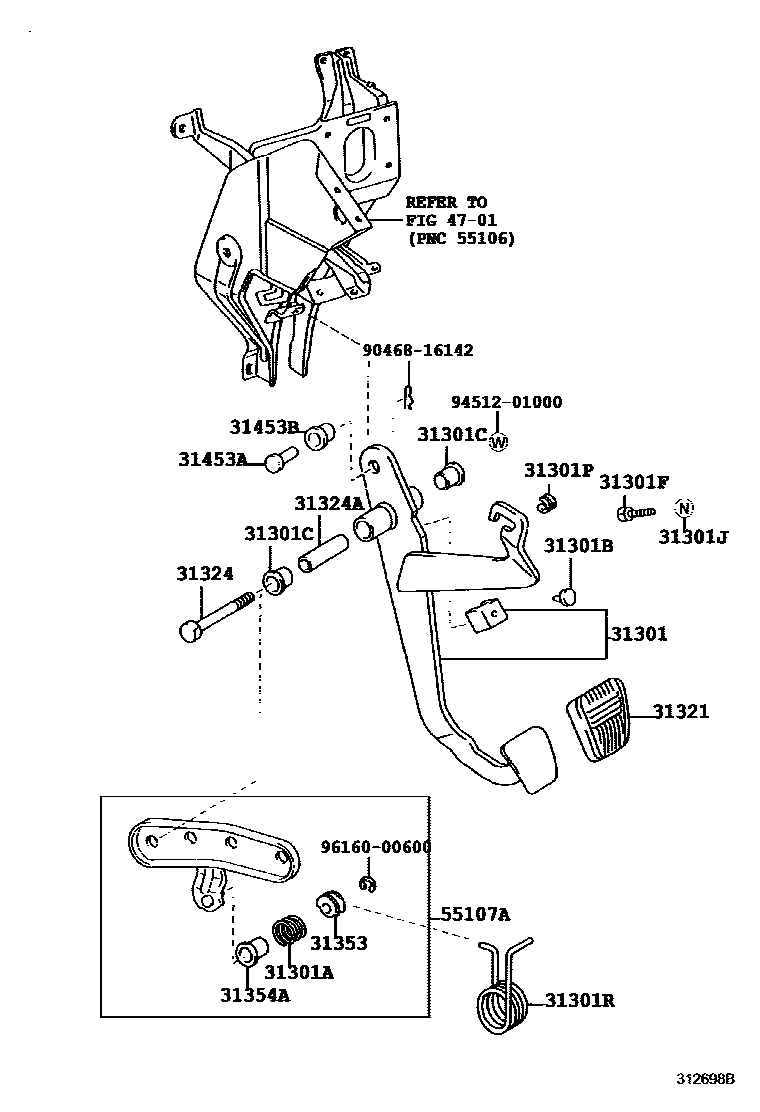

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-36230iTRB53201301-201507

main31310-36090iGRB53,XZB53201301-201507

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35013iTRB53201301-201507

main90949-03010iGRB53201507-201801

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iGRB53,TRB53..EX,STD201801

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iGRB53,TRB53,XZB53201301-201507

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90240-08006iGRB53,XZB53201301-201507

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iGRB53,XZB53201301-201507

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iGRB53,XZB53201301-201507

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03092iGRB53,XZB53201301-201507

31321PAD, CLUTCH PEDAL

main31321-14020iGRB53,TRB53..EX,STD201801

31324SHAFT, CLUTCH PEDAL

main91112-61070iTRB53201801-201910

main91121-61070iGRB53201507-201801

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iGRB53,TRB53,XZB53201301-201507

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iGRB53,XZB53201301-201507

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-13015iGRB53,XZB53201301-201507

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iTRB53201301-201507

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGRB53,TRB53,XZB53201301-201507

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55105-36010iGRB53..LX201801-202412

main55136-36010iTRB53201801-201910

9046816142

main90468-16142

9451201000

main94512-01000

9616000600

main96160-00600
