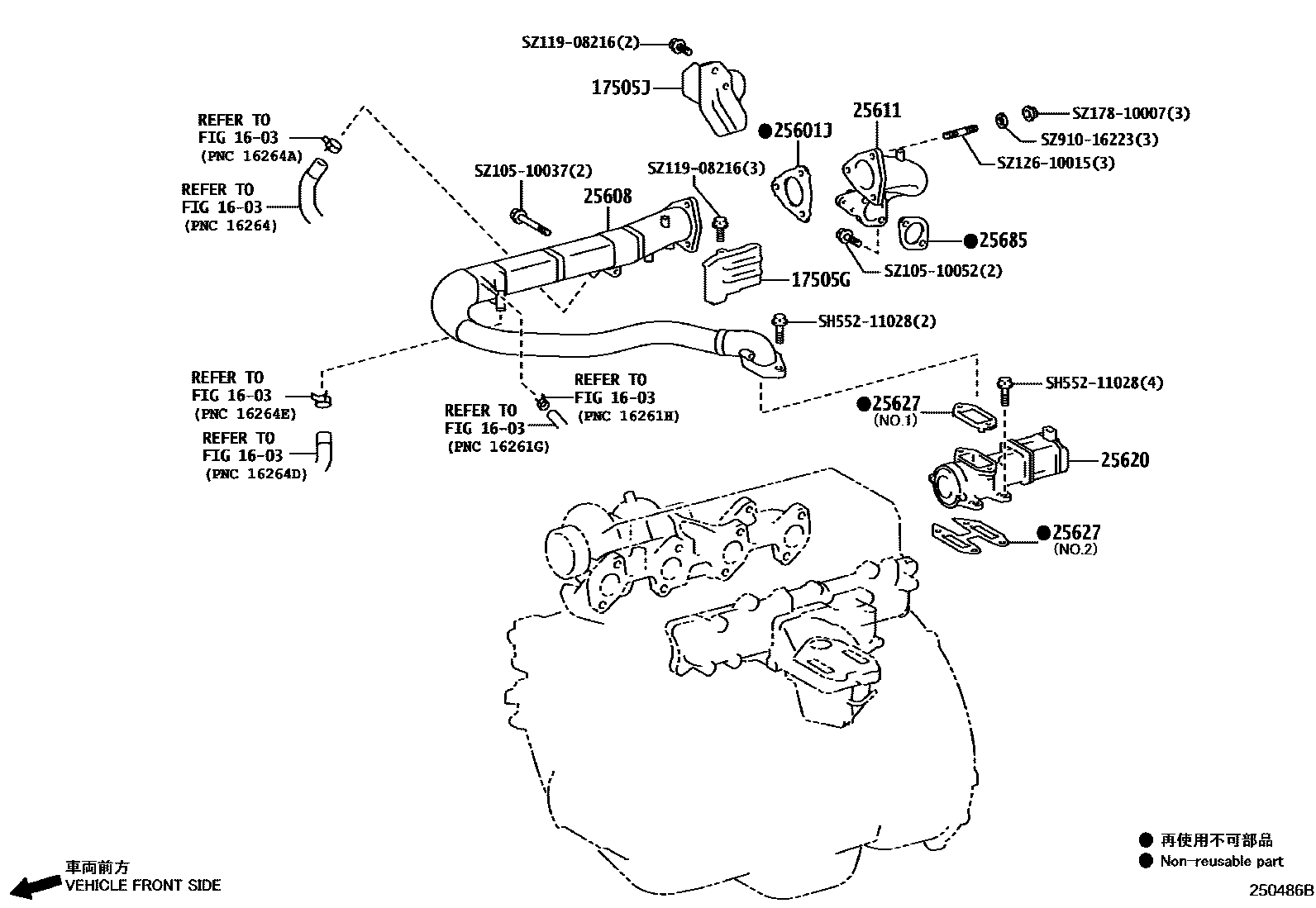

EXHAUST GAS RECIRCULATION SYSTEM

1603

17505GINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1

main17505-E0710iN041..XZB53201403

17505JINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.3

main17505-E0730iN041..XZB53201403

25601JGASKET(FOR EGR PIPE, NO.1)

main17451-E0110iN041..XZB53201403

25608COOLER SUB-ASSY, EGR

main25608-E0201iN041..XZB53201403

25611CONNECTOR, EGR PIPE

main25611-E0370iN041..XZB53201403

sub25611-E0371

25620VALVE ASSY, EGR

main25620-E0262iN041..XZB53201403

sub25620-E0263

25627GASKET, EGR VALVE

main25627-E0130iN041..XZB53201403

NO.1:REFER ILLUST.

main25627-E0140iN041..XZB53201403

NO.2:REFER ILLUST.

25685GASKET, EGR COOLER, NO.1

mainS171042020iN041..XZB53201403

SH55211028

mainSH552-11028

SZ10510037

mainSZ105-10037

SZ10510052

mainSZ105-10052

SZ11908216

mainSZ119-08216

SZ12610015

mainSZ126-10015

SZ17810007

mainSZ178-10007

SZ91016223

mainSZ910-16223

16 parts on this diagram · 1 diagram in section
