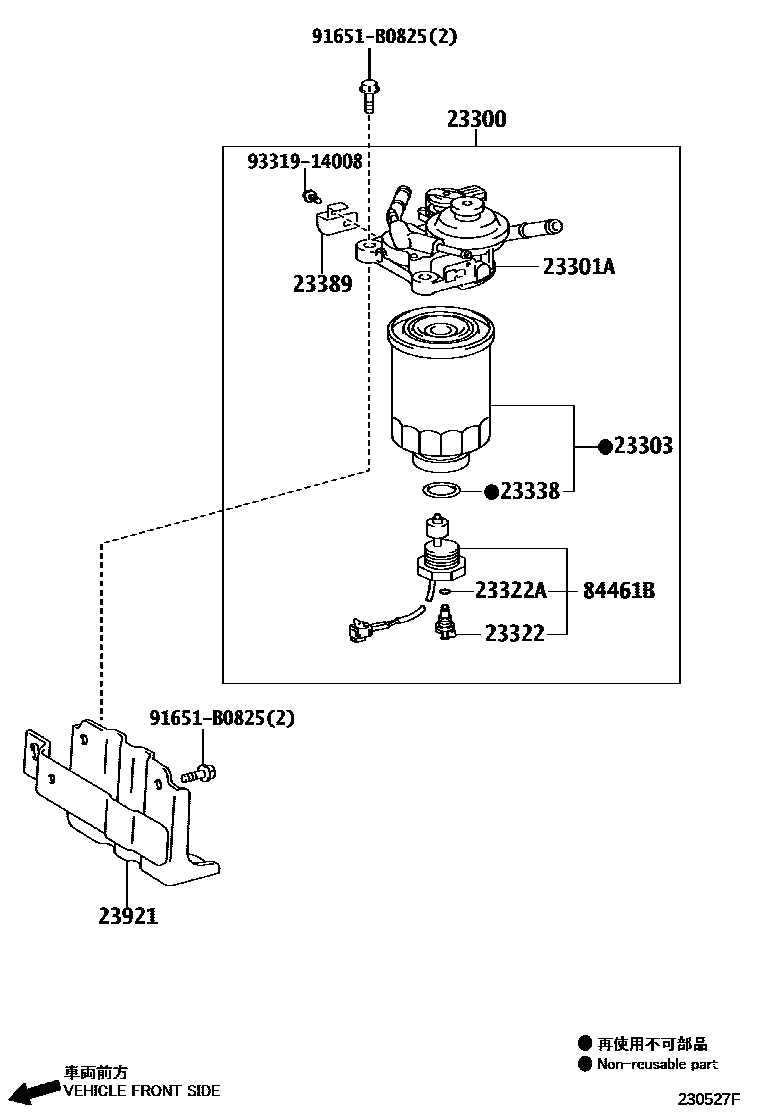

FUEL FILTER

0001 1FRAME SIDE 0002 1ENGINE SIDE

23300FILTER ASSY, FUEL

main23300-78342iN041..XZB53201403

23301ACAP ASSY, FUEL FILTER

main23380-78342iN041..XZB53201403

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-78340iN041..XZB53201403

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470iN041..XZB53201403

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iN041..XZB53201403

23338GASKET(FOR WARNING SWITCH)

main23344-64010iN041..XZB53201403

23389CLAMP, FUEL FILTER

main23389-78340iN041..XZB53201403

23921SUPPORT, FUEL FILTER

main23921-78240iN041..XZB53201403

84461BSWITCH, LEVEL WARNING

main84461-28041iXZB53201403-201507

91651B0825

main91651-B0825

9331914008

main93319-14008

11 parts on this diagram · 2 diagrams in section
