E
EPC Data

INJECTION PUMP ASSEMBLY

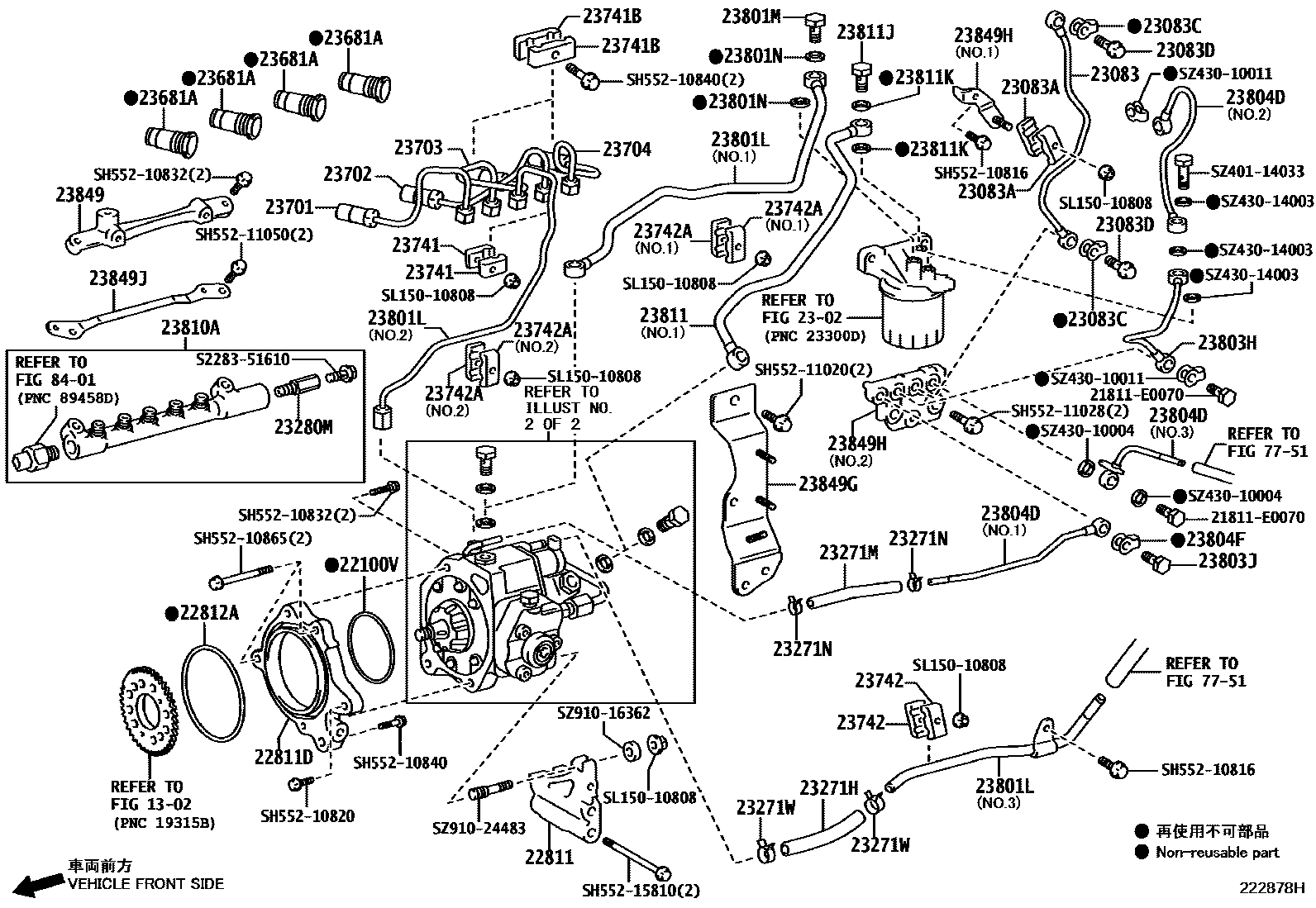

Parts diagram
1302
22100PUMP ASSY, INJECTION OR SUPPLY
main22100-E0550i201403
sub22100-E0551
sub26223-E0010
22100VRING, O(FOR INJECTION PUMP)
mainSN73210493i201403
22811STAY, INJECTION PUMP, NO.1
main22811-78141i201403
22811DSTAY, INJECTION PUMP, NO.2
mainS225122060i201403
22812ARING, O
mainSN73210793i201403
2302
23083PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
main23816-E0330i201403-201504
sub23816-E0331
main23816-E0331i201505
23083ACLAMP, NOZZLE LEAKAGE
mainS799043390i201403
23083CGASKET(NOZZLE LEKAGE PIPE NO.3)
mainSZ43008013i201403
23083DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
main21811-E0060i201403
23271HHOSE, FUEL, NO.1
main23271-E0540i201403
23271MHOSE, FUEL
main95337-06012i201403
23271NCLIP, HOSE
main21576-E0170i201403
23271WCLIP(FOR FUEL HOSE NO.1)
mainSZ46618001i201403
23280MLIMITTER ASSY, FUEL PRESSURE
main23280-E0020i201403
23681ASEAL, NOZZLE HOLDER
mainS230741070i201403
sub23681-78030
23701PIPE SUB-ASSY, INJECTION, NO.1
main23701-78160i201403
23702PIPE SUB-ASSY, INJECTION, NO.2
main23702-78160i201403
23703PIPE SUB-ASSY, INJECTION, NO.3
main23703-78150i201403
sub23703-78151
23704PIPE SUB-ASSY, INJECTION, NO.4
main23704-78150i201403
sub23704-78151
23741CLAMP, INJECTION PIPE, NO.1
mainS799041240i201403
23741BCLAMP, INJECTION PIPE
mainS2304E0010i201403
23742CLAMP, INJECTION PIPE, NO.2
mainS2304E0020i201403
23742ACLAMP, INJECTION PIPE, NO.3
mainS799042150i201403
NO.1:REFER ILLUST.
mainS799043390i201403
NO.2:REFER ILLUST.
23801LPIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
main23801-78180i201403-201507
NO.2:REFER ILLUST.
main23801-E0282i201403-201505
NO.1:REFER ILLUST.
sub23801-E0283
main23801-E0284i201506-201507
NO.1:REFER ILLUST.
main23801-E0390i201403-201507
NO.3:REFER ILLUST.
23801MBOLT, UNION
mainSZ40114004i201403
23801NGASKET
mainSZ43014003i201403
23803HPIPE SUB-ASSY, FUEL RETURN
main23816-E0341i201403-201504
sub23816-E0342
main23816-E0342i201505
23803JBOLT, UNION(FOR FUEL RETURN PIPE)
main21811-E0070i201503
mainSZ40110004i201403-201502
23804DPIPE SUB-ASSY, FUEL, NO.4
main23803-E0882i201403
NO.3:REFER ILLUST.
main23816-78150i201403-201504
NO.2:REFER ILLUST.
sub23816-78151
main23816-78151i201505
NO.2:REFER ILLUST.
main23816-E0351i201403-201504
NO.1:REFER ILLUST.
sub23816-E0352
main23816-E0352i201505
NO.1:REFER ILLUST.
23804FGASKET(FOR FUEL PIPE NO.4)
mainSZ43010011i201403
23810ARAIL ASSY, COMMON
main23810-E0240i201403
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
main23811-E0851i201403-201505
sub23811-E0852
main23811-E0853i201506-201507
23811JBOLT, UNION
mainSZ40114004i201403
23811KGASKET
mainSZ43014003i201403
23849SUPPORT, FUEL
main23849-E0600i201403
23849GSUPPORT, FUEL PIPE
main23809-E0400i201403
23849HSUPPORT, FUEL PIPE
main23809-78100i201403
NO.2:REFER ILLUST.
sub23809-78080
main23849-78210i201403
NO.1:REFER ILLUST.
23849JSUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON)
main23849-78220i201403
7751
8401
21811E0070BOLT, UNION NIPPLE
main21811-E0070
S228351610
mainS2283-51610
SH55210816
mainSH552-10816
SH55210820
mainSH552-10820
SH55210832
mainSH552-10832
SH55210840
mainSH552-10840
SH55210865
mainSH552-10865
SH55211020
mainSH552-11020
SH55211028
mainSH552-11028
SH55211050
mainSH552-11050
SH55215810
mainSH552-15810
SL15010808
mainSL150-10808
SZ40114033
mainSZ401-14033
SZ43010004WASHER, SOFT, NO.1
mainSZ430-10004
SZ43010011WASHER, SOFT, NO.1
mainSZ430-10011
SZ43014003WASHER, SOFT, NO.1
mainSZ430-14003
SZ91016362
mainSZ910-16362
SZ91024483
mainSZ910-24483

60 parts on this diagram · 2 diagrams in section
