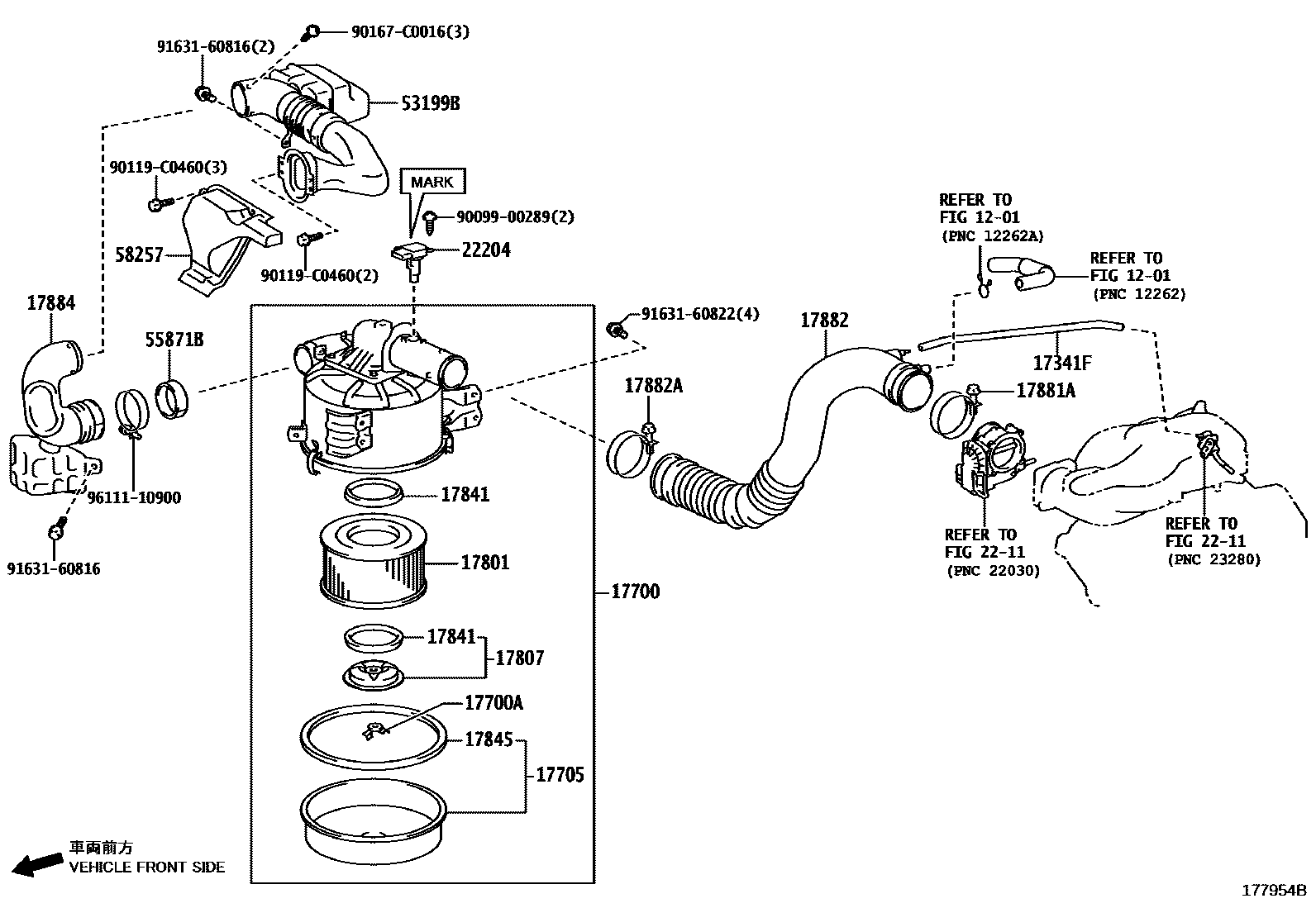

AIR CLEANER
1201
17700CLEANER ASSY, AIR
17700ANUT, WING(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17807PLATE SUB-ASSY, AIR CLEANER FILTER SET
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17884HOSE, AIR CLEANER, NO.4
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK=C
53199BDUCT SUB-ASSY, COOL AIR INTAKE
55871BSEAL, AIR DUCT
9009900289
main90099-00289
90119C0460
main90119-C0460
90167C0016
main90167-C0016
9163160816
main91631-60816
9163160822
main91631-60822
9611110900
main96111-10900
25 parts on this diagram · 3 diagrams in section
