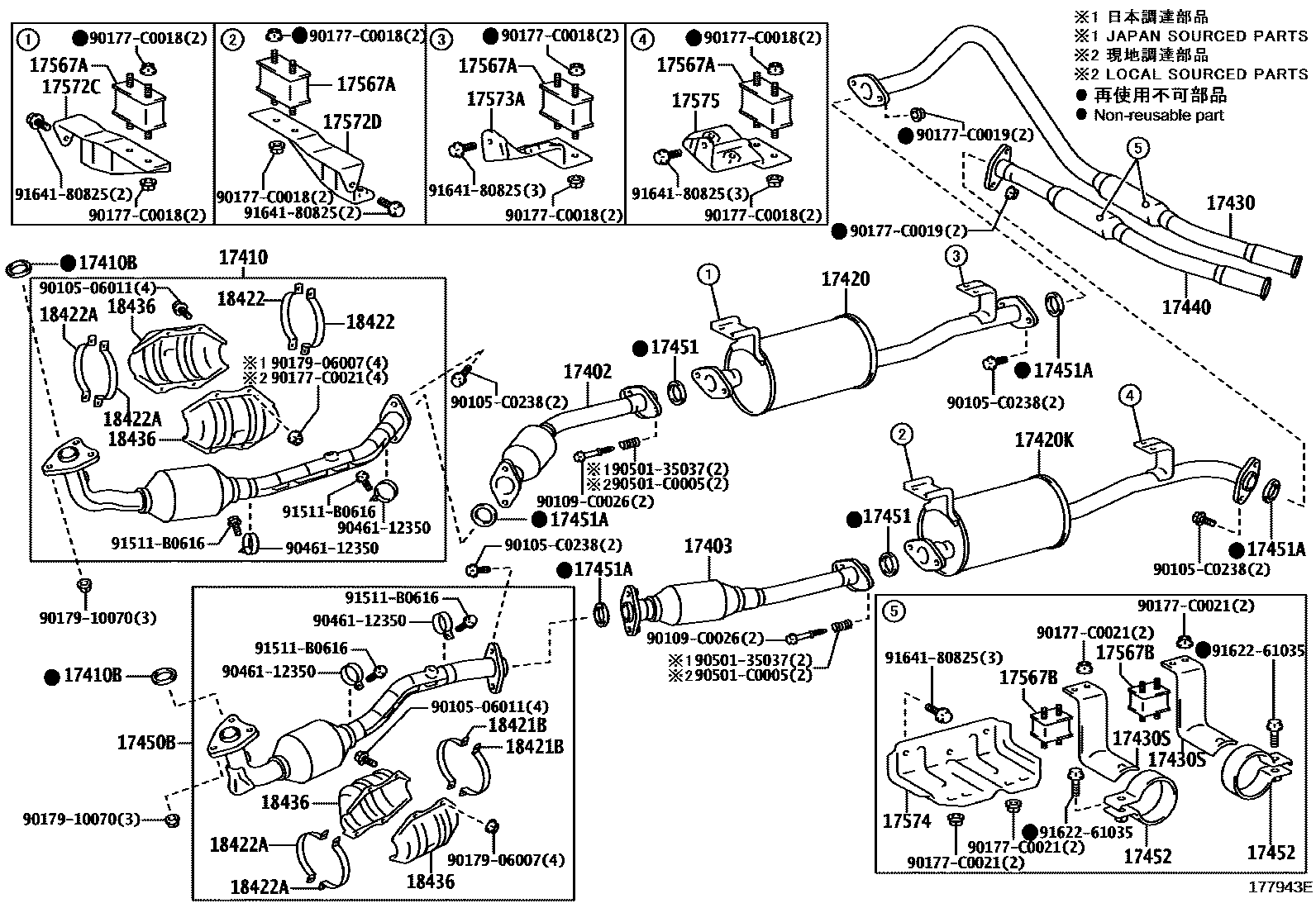

EXHAUST PIPE
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17410PIPE ASSY, EXHAUST, FRONT
17420PIPE ASSY, EXHAUST, CENTER
NO.1
NO.2
17420KPIPE ASSY, EXHAUST, CENTER NO.2
17430PIPE ASSY, EXHAUST, TAIL
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17440PIPE, EXHAUST TAIL, LH
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
NO.2
NO.1
17451AGASKET, EXHAUST PIPE, NO.2
17452CLAMP, EXHAUST PIPE
17567CUSHION, EXHAUST PIPE SUPPORT
17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2
17567BCUSHION, EXHAUST PIPE SUPPORT, NO.3
17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
18421BSTAY, CONVERTER PROTECTOR, NO.2
18422STAY, CONVERTER PROTECTOR, NO.2
18422ASTAY, CONVERTER PROTECTOR, NO.3
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
9010506011
main90105-06011
90105C0238
main90105-C0238
90109C0026
main90109-C0026
90177C0018
main90177-C0018
90177C0019
main90177-C0019
90177C0021
main90177-C0021
9017906007
main90179-06007
9017910070
main90179-10070
9046112350
main90461-12350
9050135037
main90501-35037
90501C0005
main90501-C0005
91511B0616
main91511-B0616
9162261035
main91622-61035
9164180825
main91641-80825
39 parts on this diagram · 3 diagrams in section
