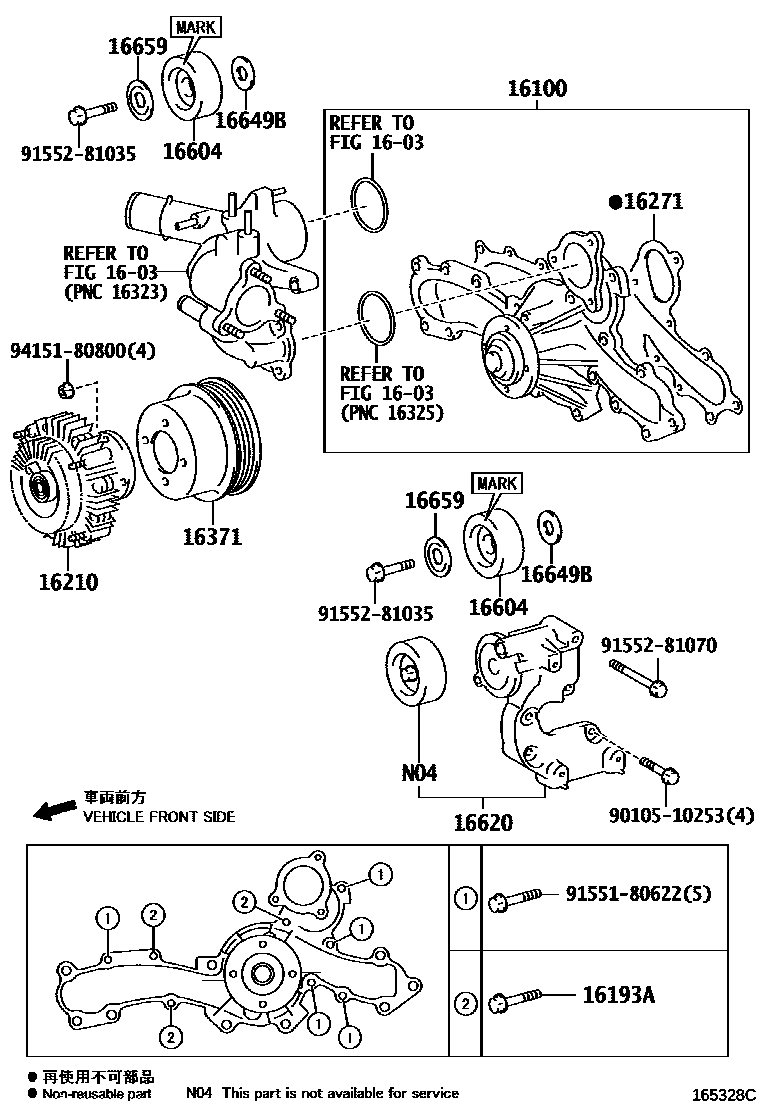

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39545i6GRFE..GRB53201301-202412

main16100-79445i3TRFE..TRB53201301-201910

main16100-E0780iN041..XZB53201403

sub16100-E0B60

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i6GRFE..GRB53201301-202412

16210COUPLING ASSY, FLUID

main16210-31040i6GR#..GRB53..EX,STD201301-202412

main16210-75120i3TRFE..TRB53201301-201910

mainS162501850iN041..XZB53201403

16271GASKET, WATER PUMP

main16271-31040i6GRFE..GRB53201301-202412

16371PULLEY, FAN

main16107-E0040iN041..XZB53201403

main16371-31040i6GRFE..GRB53..LX201301-202412

main16371-75040i3TRFE..TRB53201301-201910

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31020i6GRFE..GRB53201301-202407

MARK=PU107013ARMXY3

main16604-31030i6GRFE..GRB53201301-202412

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31051i6GRFE..GRB53201301-202412

16649BPLATE, IDLER PULLEY COVER

main16649-31020i6GRFE..GRB53201301-202407

MARK=PU107013ARMXY3

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i6GR#..GRB53201301-202407

MARK=PU107013ARMXY3

9010510253

main90105-10253

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9415180800

main94151-80800

15 parts on this diagram · 3 diagrams in section
