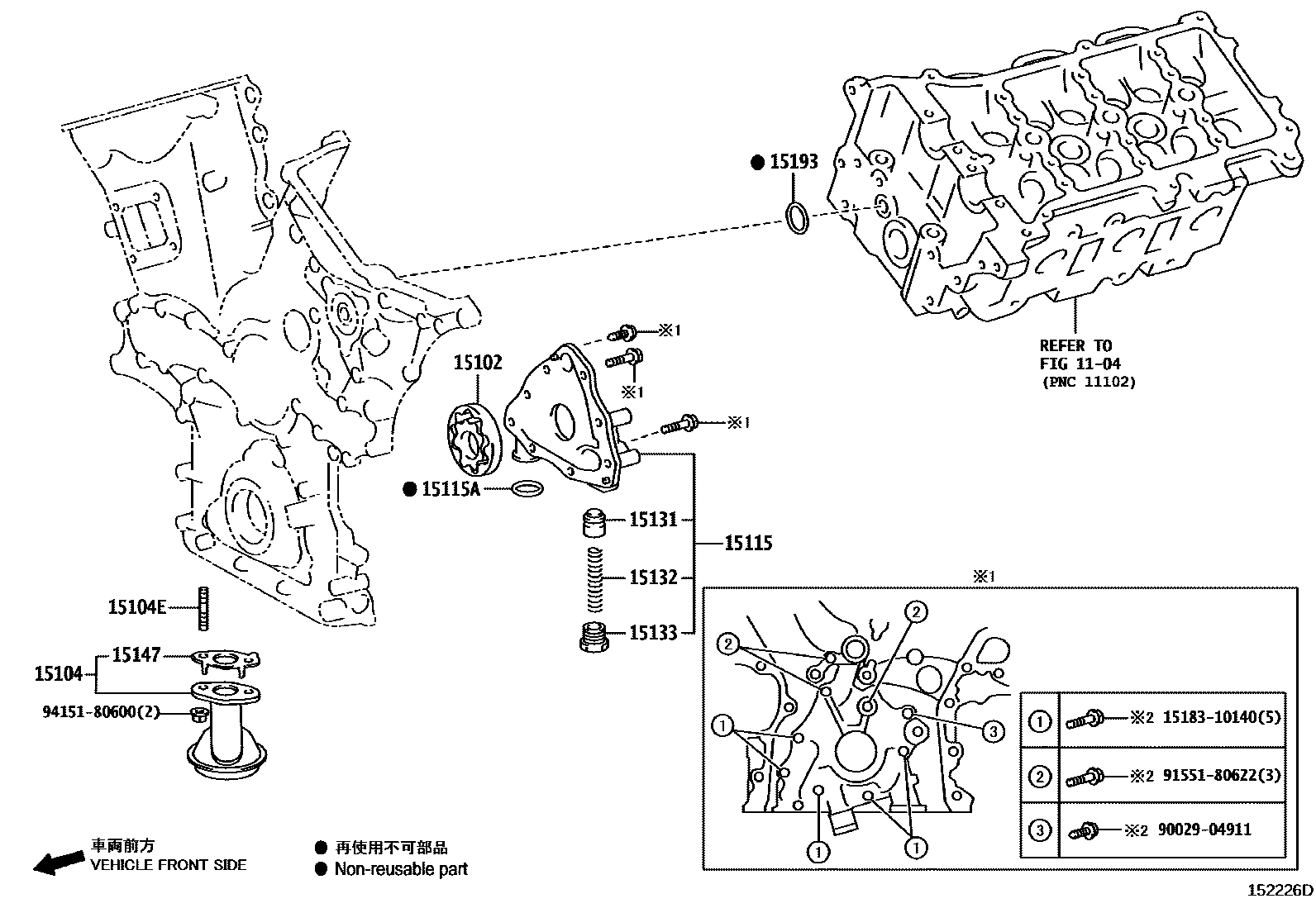

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

15102ROTOR SET, OIL PUMP

main15103-31080i6GRFE..GRB53201507-201801

15104STRAINER SUB-ASSY, OIL

main15104-31150i6GRFE..GRB53201301-201507

main15104-75140i3TRFE..TRB53201801-201910

mainS151041940iN041..XZB53201403

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06029×2i6GRFE..GRB53..LX201801-202412

main90126-08052×2i3TRFE..TRB53201801-201910

15115COVER, OIL PUMP

main15115-31080i6GRFE..GRB53201301-201507

15115ARING, O(FOR OIL PUMP COVER)

main96722-24030i6GR#..GRB53..EX,STD201801

15131VALVE, OIL PUMP RELIEF

main15131-17010i6GRFE..GRB53..LX201801-202412

main15131-46040i3TRFE..TRB53201801-201910

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i6GRFE..GRB53201301-201507

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i6GRFE..GRB53..LX201801-202412

15147GASKET, OIL STRAINER

main15147-31070i6GRFE..GRB53201507-201801

main15147-75030i3TRFE..TRB53201801-201910

15193GASKET, OIL PUMP

main15193-38010i6GRFE..GRB53201301-201507

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9002904911

main90029-04911

9155180622

main91551-80622

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
