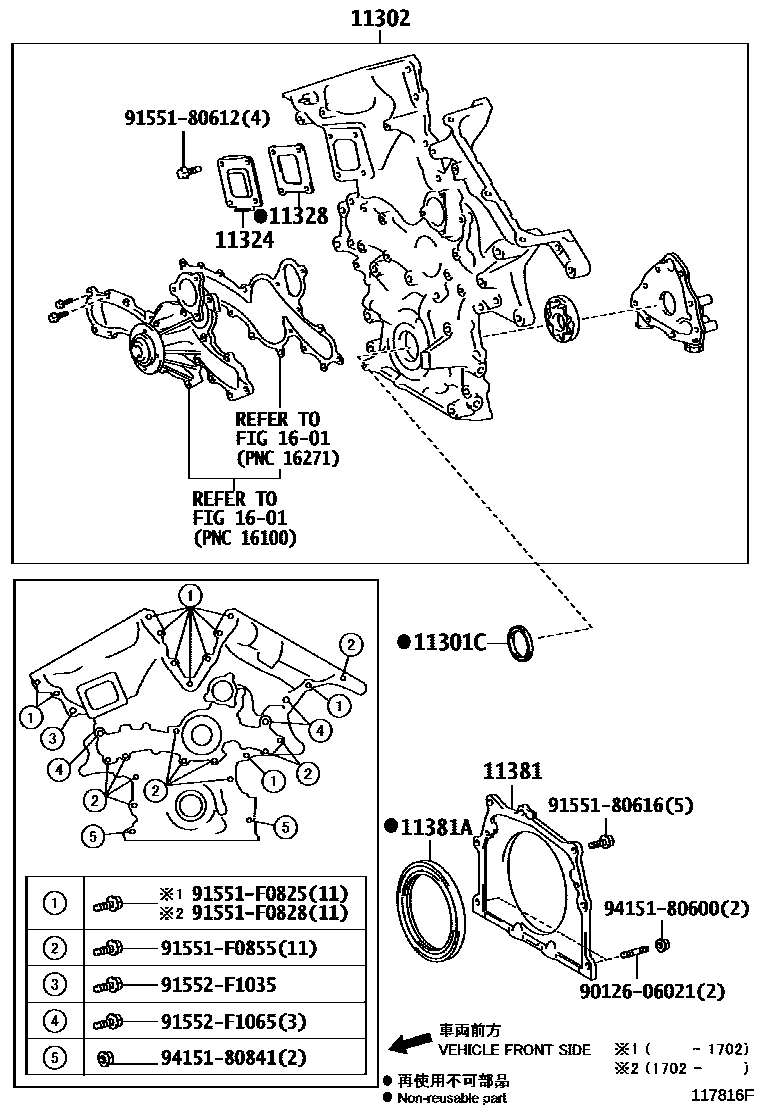

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42048i6GRFE..GRB53..LX201301-202412

main90311-48029i3TRFE..TRB53201301-201410

sub90311-48031

main90311-48031i3TRFE..TRB53201411-201910

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31050i6GRFE..GRB53201301-202412

main11310-75073i3TRFE..TRB53201301-201406

sub11310-75074

sub91671-80840

main11310-75074i3TRFE..TRB53201406-201910

11324PLATE, TIMING CHAIN COVER

main11324-31020i6GRFE..GRB53..LX201301-202412

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i6GRFE..GRB53201301-202412

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31010i6GRFE..GRB53201301-202412

main11381-75011i3TRFE..TRB53201301-201406

sub11381-75012

main11381-75012i3TRFE..TRB53201407-201910

11381ASEAL, ENGINE REAR OIL

main90311-88005i3TRFE..TRB53201301-201410

sub90311-88006

main90311-88006i3TRFE..TRB53201411-201910

main90311-99010i6GRFE..GRB53201301-202412

mainSZ31100002iN041..XZB53201403

subSZ311-00004

1601

9012606021

main90126-06021

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0828

main91551-F0828

91551F0855

main91551-F0855

91552F1035

main91552-F1035

91552F1065

main91552-F1065

9415180600

main94151-80600

9415180841

main94151-80841

17 parts on this diagram · 5 diagrams in section
