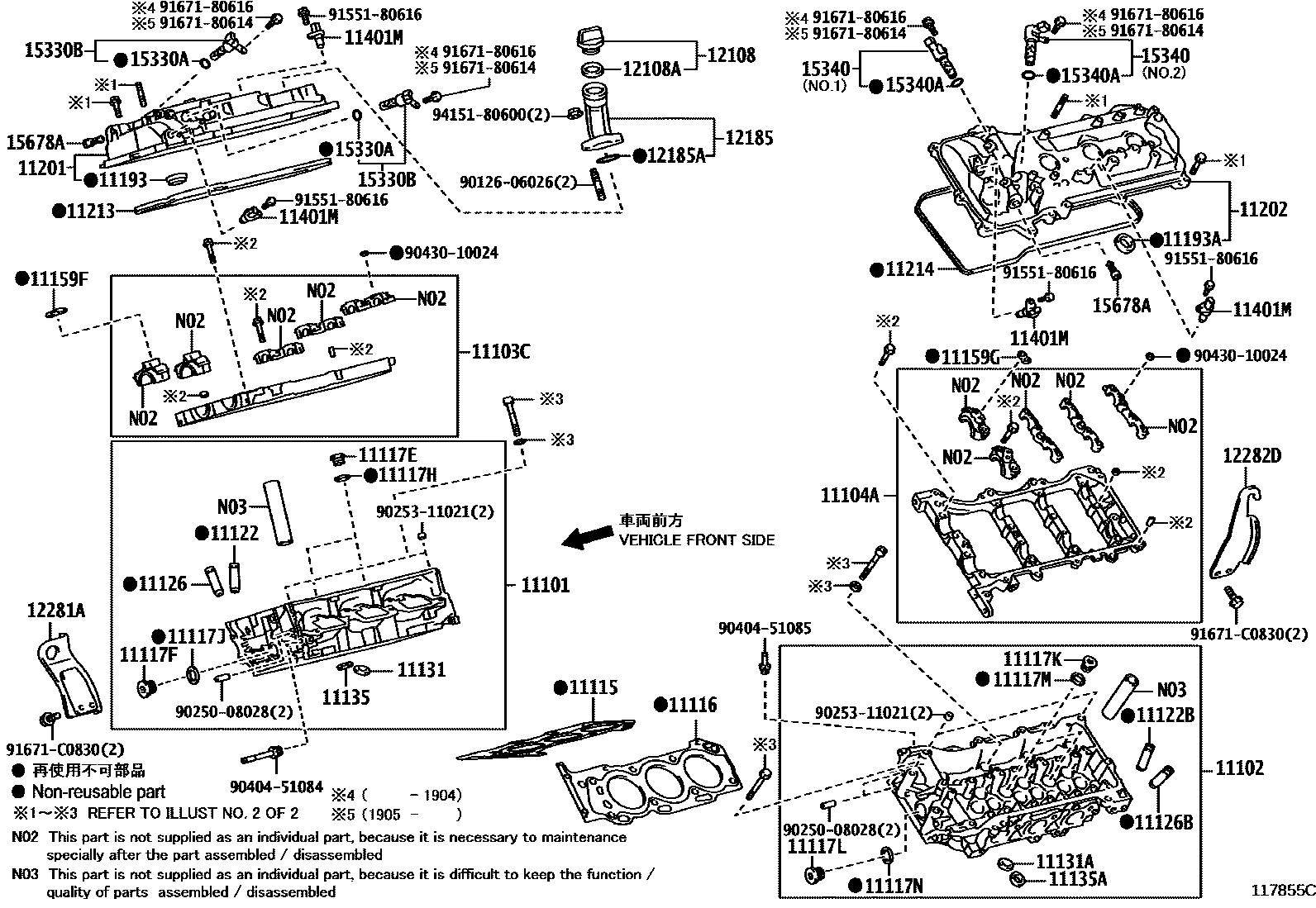

CYLINDER HEAD
11102HEAD, CYLINDER, LH
11103CHOUSING SUB-ASSY, CAMSHAFT, RH
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
STD
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
STD
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
O/S 0.03
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11213GASKET, CYLINDER HEAD COVER
11401MSENSOR, CRANK POSITION, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
NO.1
NO.2
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
9012606026
main90126-06026
9025008028
main90250-08028
9025311021
main90253-11021
9040451084
main90404-51084
9040451085
main90404-51085
9043010024
main90430-10024
9155180616
main91551-80616
9167180614
main91671-80614
9167180616
main91671-80616
91671C0830
main91671-C0830
9415180600
main94151-80600
53 parts on this diagram · 4 diagrams in section
