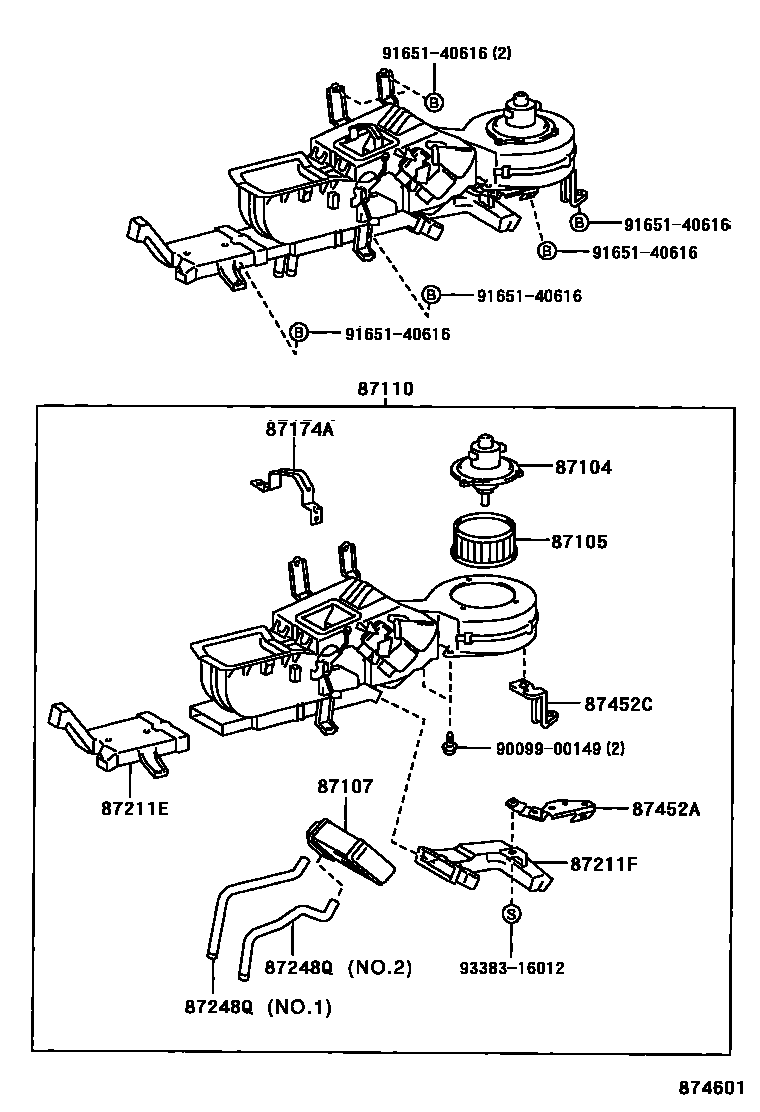

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1REAR

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-36320iBB5#200012-200310

main87104-36330iBB5#200012-200310

COLD SPEC

main87104-36340iRZB5#200012-200310

main87104-36380iXZB53200701

87105FAN SUB-ASSY, HEATER BLOWER

main87105-36100iBB5#,RZB5#200012-200310

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-36200iBB5#,RZB5#200012-200310

87110HEATER ASSY

main87110-36520iBB5#200012-200310

main87110-36560iBB5#200012-200310

COLD SPEC

main87110-36570iRZB5#,TRB53200310

main87110-36730iXZB53200701

87174AGUIDE, AIR HEATER

main87174-36060iBB5#,RZB5#200012-200310

87211EDUCT, AIR

main87211-36120iBB5#,RZB5#200012-200310

87211FDUCT, AIR

main87211-36130iBB5#,RZB5#200012-200107

main87211-36131iBB5#,RZB5#200107-200310

87248QPIPE, FRONT HEATER RADIATOR WATER

main87248-36460iBB5#,RZB5#,TRB53,XZB53200310

NO.1

main87248-36470iBB5#,RZB5#200012-200310

NO.2

87452ABRACKET, HEATER, FRONT

main87452-36300iBB5#,RZB5#200012-200310

87452CBRACKET, FRONT HEATER, NO.2

main87452-36310iBB5#,RZB5#200012-200310

9009900149

main90099-00149

9165140616

main91651-40616

9338316012

main93383-16012

13 parts on this diagram · 2 diagrams in section
