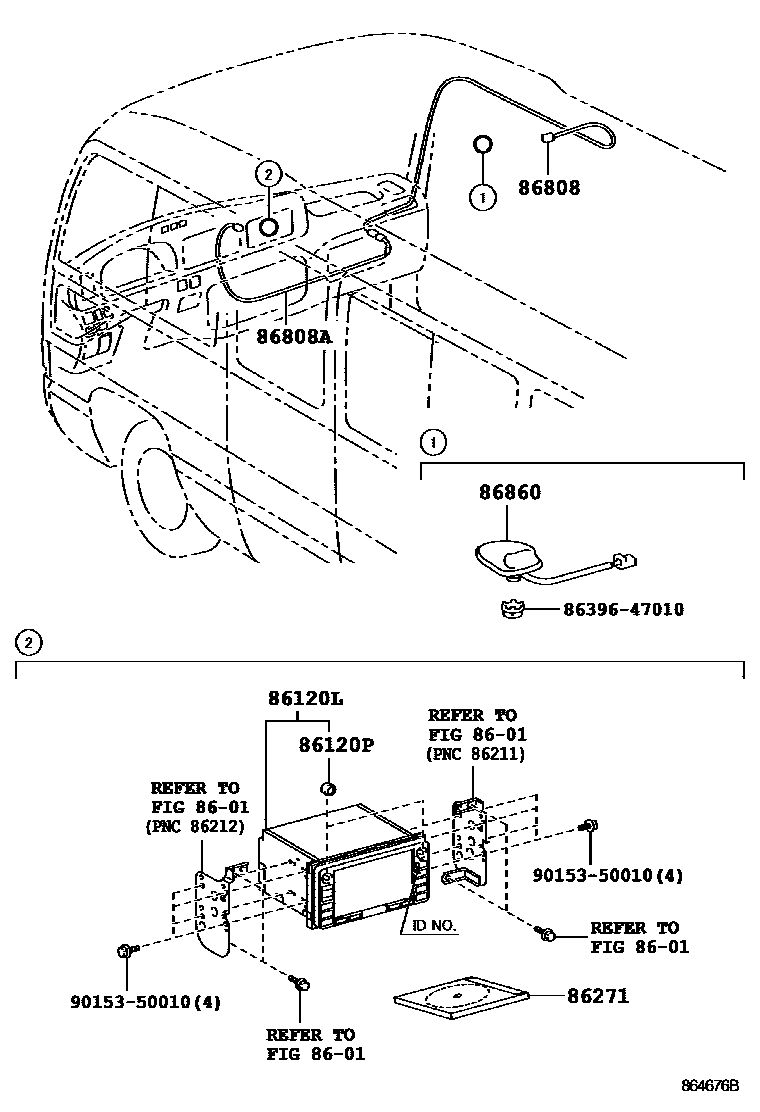

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-28540iTRB53,XZB53..EX,LX201108-201201

DENSO,ID=E8001

main86120-28541iTRB53,XZB53..EX,LX201201

DENSO,ID=E8001

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90010-26001×2iTRB53,XZB53..EX,LX201108

86271DISC, DISC PLAYER

main86807-0W029iTRB53,XZB53..EX,LX201108-201109

main86807-0W190iTRB53,XZB53..EX,LX201110-201204

main86807-0W191iTRB53,XZB53..EX,LX201205-201209

main86807-0W192iTRB53,XZB53..EX,LX201210-201301

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-36010iTRB53,XZB53..EX,LX201108

86808ACORD SUB-ASSY, NAVIGATION ANTENNA, NO.2

main86808-36020iTRB53,XZB53..EX,LX201108

86860ANTENNA ASSY, NAVIGATION

main86860-36080iTRB53,XZB53..EX,LX201108-201207

main86860-36081iTRB53,XZB53..EX,LX201208

8639647010NUT, ANTENNA

main86396-47010

9015350010

main90153-50010

9 parts on this diagram · 1 diagram in section
