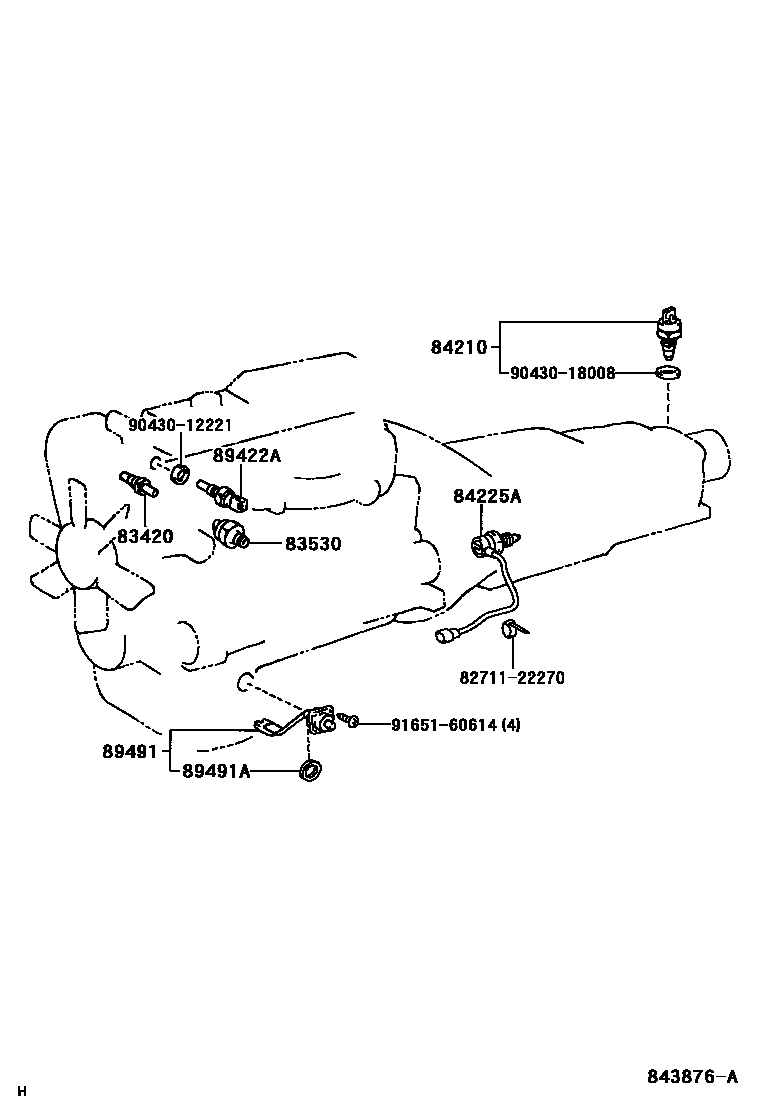

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1IGNITION & COMBINATION SWITCH0011 1IGNITION & COMBINATION SWITCH0012 1IGNITION & COMBINATION SWITCH0013 1FLOOR & ROOF 0014 1FLOOR & ROOF

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBB5#200012-200701

main83420-20040iRZB5#200012-200701

main83420-37020iXZB53200701

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iBB5#200012-200701

DENSO

main83530-28020iRZB5#200012-200310

DENSO

main83530-37040iXZB53200701

main83530-60010iBB5#200012-200701

YAZAKI

main83530-60020iTRB53200701

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iBB5#,RZB5#200012-201206

sub84210-52050

main84210-52050iTRB53,XZB53201206-201403

84225ASWITCH, SHIFT POSITION

main84225-35010iBB54..29S200310-200701

89422ASENSOR, WATER TEMPERATURE

main89422-20010iBB5#200012-200701

89491SENSOR, ENGINE OIL LEVEL

main89491-26111iXZB53200701

subS8346-01580

main89491-36070iBB5#200012-200701

sub89491-36071

main89491-36091iRZB5#200012-200701

main89491-36110iTRB53200701

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iRZB5#200012-201403

main90430-27001iBB5#200012-200701

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9043012221

main90430-12221

9043018008

main90430-18008

9165160614

main91651-60614

11 parts on this diagram · 14 diagrams in section
