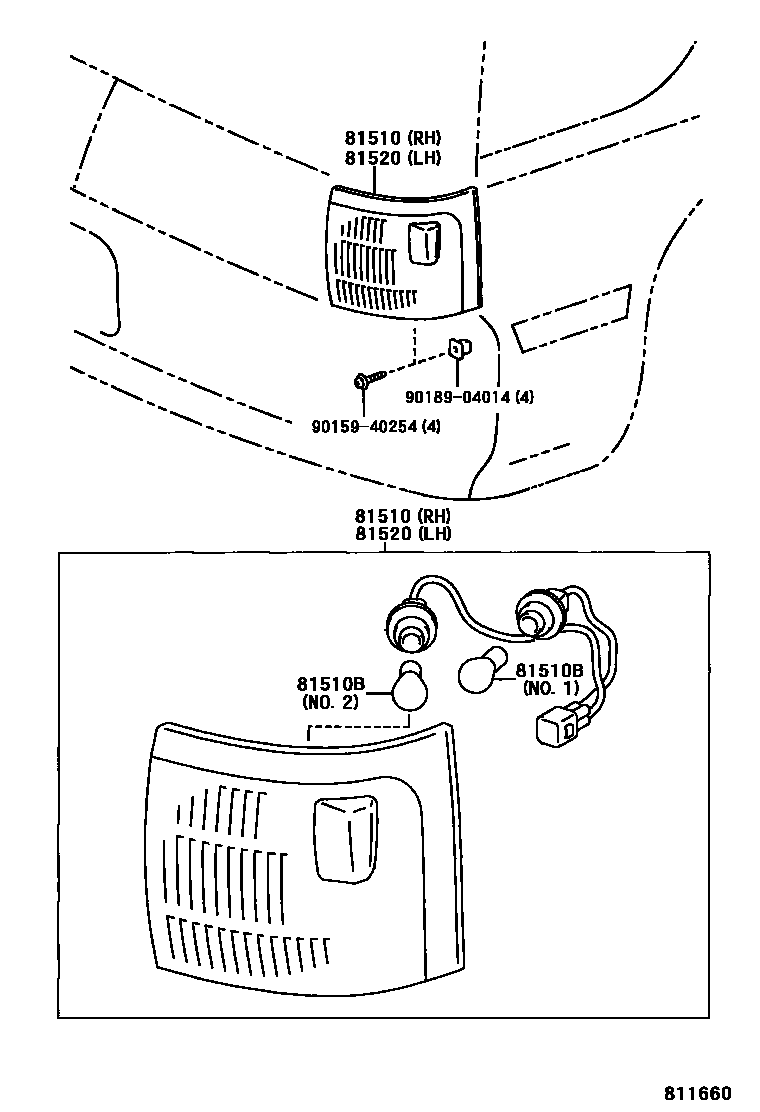

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-36310iBB54200012-200301

main81510-36320iRZB54200012-200301

main81510-36330iBB53200012-200301

main81510-36340iRZB53200012-200301

main81510-36360iBB54200310-200611

main81510-36361iBB54200611-200701

main81510-36410iRZB54200301-200310

main81510-36411iRZB54200611-200701

main81510-36420iBB53200310-200611

main81510-36421iBB53200611-200701

main81510-36430iRZB53200310-200611

main81510-36431iRZB53200611-200701

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-12015×2iBB54..29S200310-200701

24V 5W,NO.2

main90981-16014×2iBB5#200611-200701

24V 21W,NO.1

main99132-11210×2iRZB5#200611-200701

12V 21W,NO.1

main99132-12050×2iRZB5#..20S,23S,24S200310-200610

12V 5W,NO.2

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-36250iBB54200012-200301

main81520-36260iRZB54200012-200301

main81520-36270iBB53200012-200301

main81520-36280iRZB53200012-200301

main81520-36340iBB54200301-200310

main81520-36341iBB54200611-200701

main81520-36350iRZB54200301-200310

main81520-36351iRZB54200611-200701

main81520-36360iBB53200301-200310

main81520-36361iBB53200611-200701

main81520-36370iRZB53200310-200611

main81520-36371iRZB53200611-200701

9015940254

main90159-40254

9018904014

main90189-04014

5 parts on this diagram · 1 diagram in section
