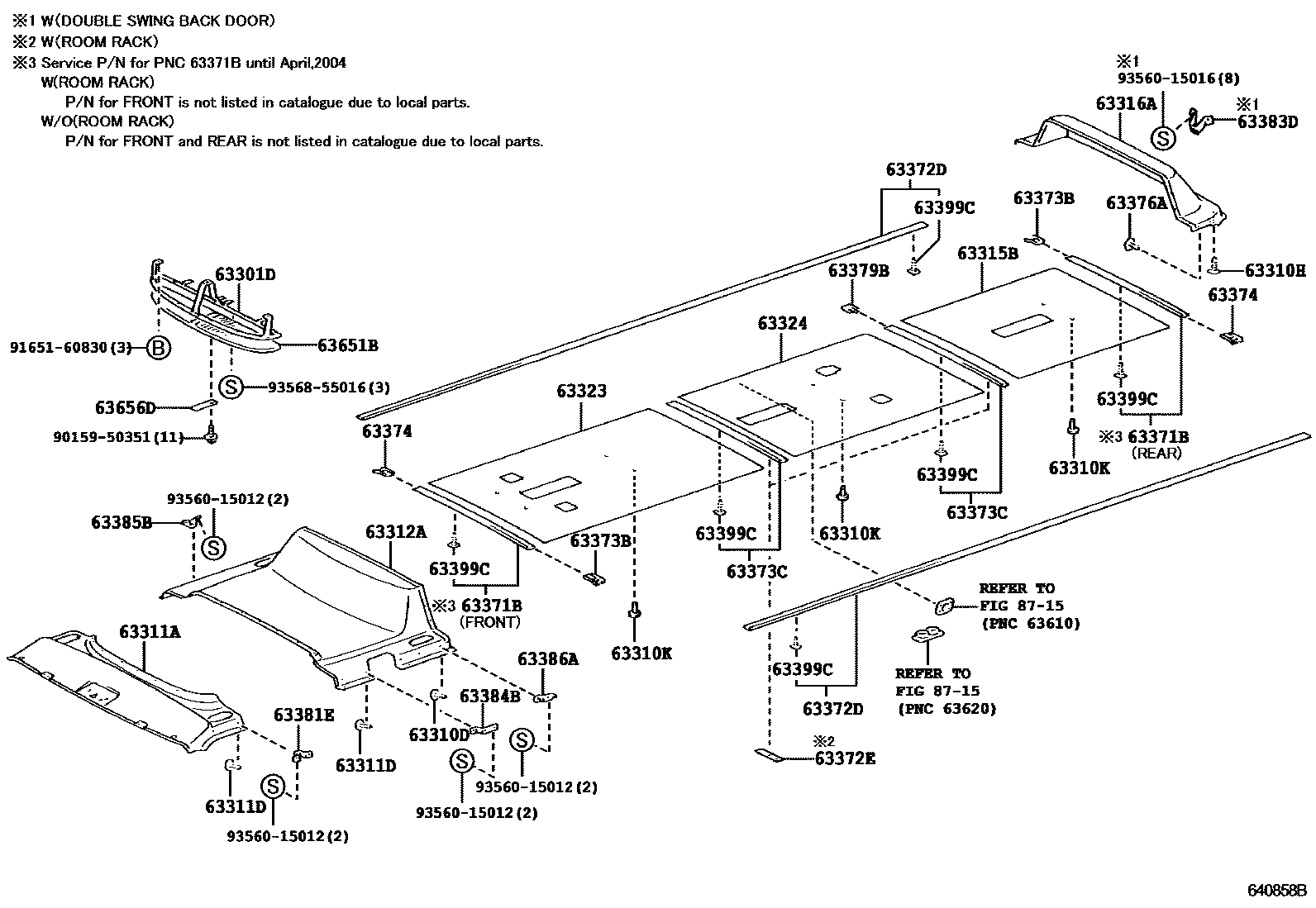

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(ESAPE HATCH) 0003 1

63301DPLATE SUB-ASSY, ROOF HEADLINING SET

main63301-36010iBB5#,RZB5#200012-200310

63310DCLIP, ROOF HEADLINING

main63382-36010-A0×2iTRB53,XZB53200704-201403

IVORY,TRIM4#

main90467-07132×2iBB5#,RZB5#200012-200310

63310HCLIP(FOR ROOF HEADLINING)

main90467-08104-A1×6iBB5#,RZB5#200012-200310

IVORY,TRIM4#

63310KCLIP

main63399-36070-A0×8iBB5#,RZB5#200012-200310

IVORY,TRIM4#

63311AHEADLINING, ROOF NO.1

main63311-36220-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63311-36240-A0iBB54,RZB54200310-200610

IVORY,TRIM4#

main63311-36241-A0iBB54,RZB54200611-200701

IVORY,TRIM4#

main63311-36250-A0iBB5#,RZB5#200310-200610

W(CURTAIN),IVORY,TRIM4#

main63311-36251-A0iBB5#,RZB5#200611-200701

W(CURTAIN),IVORY,TRIM4#

63311DCLIP(HEADLINING, ROOF, FRONT)

main90467-08104-A1×12iBB5#,RZB5#200012-200310

IVORY,TRIM4#

63312AHEADLINING, ROOF, NO.2

main63312-36230-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63312-36340-A0iBB5#,RZB5#200310-200610

IVORY,TRIM4#

main63312-36341-A0iBB5#,RZB5#200611-200701

IVORY,TRIM4#

63315BBOARD, ROOF HEADLINING, NO.5

main63315-0S010-A0iTRB53,XZB53..STD200711-201403

IVORY,TRIM4#

main63315-0S020-A0iTRB53,XZB53..CBU200711-201403

W(ROOM RACK),IVORY,TRIM4#

main63315-0S030-A0iTRB53,XZB53..STD201209-201403

W(ESCAPE HATCH),IVORY,TRIM4#

main63315-0S040-A0iTRB53,XZB53..CBU201209-201403

W(ESCAPE HATCH & ROOM RACK),IVORY,TRIM4#

main63315-36180-A0iBB54,RZB54200012-200310

IVORY,TRIM4#

main63315-36181-A0iBB54,RZB54200611-200701

IVORY,TRIM4#

main63315-36190-A0iBB5#,RZB5#200012-200310

W(ROOM RACK),IVORY,TRIM4#

main63315-36191-A0iBB53,RZB53;BB54,RZB54..20S200611-200701

W(ROOM RACK),IVORY,TRIM4#

63316AHEADLINING, ROOF, NO.6

main63316-36270-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63316-36320-A0iBB54,RZB54200310-200610

IVORY,TRIM4#

main63316-36321-A0iBB54,RZB54200611-200701

IVORY,TRIM4#

main63316-36330-A0iBB5#,RZB5#200310-200610

W(CURTAIN),IVORY,TRIM4#

main63316-36331-A0iBB5#,RZB5#200611-200701

W(CURTAIN),IVORY,TRIM4#

main63316-36340-A0iBB54,RZB54..23S,29S,30S200310-200610

W(DOUBLE SWING BACK DOOR),IVORY,TRIM4#

63323BOARD, ROOF, NO.3

main63313-0S010-A0iTRB53,XZB53..STD200711-201403

IVORY,TRIM4#

main63313-0S020-A0iTRB53,XZB53..CBU200711-201403

W(ROOM RACK),IVORY,TRIM4#

main63313-0S030-A0iTRB53,XZB53..STD201209-201403

W(ESCAPE HATCH),IVORY,TRIM4#

main63313-0S040-A0iTRB53,XZB53..CBU201209-201403

W(ESCAPE HATCH & ROOM RACK),IVORY,TRIM4#

main63313-36380-A0iBB54,RZB54200012-200310

IVORY,TRIM4#

main63313-36381-A0iBB54,RZB54200611-200701

IVORY,TRIM4#

main63313-36390-A0iBB5#,RZB5#200012-200310

W(ROOM RACK),IVORY,TRIM4#

main63313-36391-A0iBB53,RZB53;BB54,RZB54..20S200611-200701

W(ROOM RACK),IVORY,TRIM4#

63324BOARD, ROOF, NO.4

main63314-0S010-A0iTRB53,XZB53..STD200711-201403

IVORY,TRIM4#

main63314-0S020-A0iTRB53,XZB53..CBU200711-201403

W(ROOM RACK),IVORY,TRIM4#

main63314-0S030-A0iTRB53,XZB53201209-201403

W(ESCAPE HATCH),IVORY,TRIM4#

main63314-0S040-A0iTRB53,XZB53..EX,LX200808-201403

W(ROOM RACK & VENTILATION FAN),IVORY,TRIM4#

main63314-0S050-A0iTRB53,XZB53..EX,LX201209-201403

W(ESCAPE HATCH & VENTILATION FAN),IVORY,TRIM4#

main63314-36560-A0iBB54,RZB54200012-200310

IVORY,TRIM4#

main63314-36561-A0iBB54,RZB54200611-200701

IVORY,TRIM4#

main63314-36570-A0iBB5#,RZB5#200012-200310

W(ROOM RACK),IVORY,TRIM4#

main63314-36571-A0iBB53,RZB53;BB54,RZB54..20S200611-200701

W(ROOM RACK),IVORY,TRIM4#

63371BMOULDING, ROOF BOARD SET, NO.1

main63371-36120-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63371-36180-A0iBB54,RZB54,TRB53,XZB53..STD,STDH; BB54,RZB54..20S;BB53,RZB53,TRB53,XZB53..CBU200404-201403

IVORY,TRIM4#; W(ROOM RACK),IVORY,TRIM4#,FRONT

main63371-36190-A0iBB54,RZB54..20S;BB53,RZB53,TRB53,XZB53..CBU200404-201403

W(ROOM RACK),IVORY,TRIM4#,REAR

63372DMOULDING, ROOF BOARD SET, NO.2

main63372-0S030-A0×2iTRB53,XZB53201209-201403

W(ESCAPE HATCH),IVORY,TRIM4#

main63372-36040-A0×2iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63372-36090-A0×2iBB5#,RZB5#,TRB53,XZB53200404-201403

IVORY,TRIM4#

63372EMOULDING, ROOF BOARD SET, NO.2

main63372-0S040-A0×2iTRB53,XZB53201209-201403

W(ESCAPE HATCH),IVORY,TRIM4#

main63372-36050-A0×2iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63372-36100-A0×2iBB54,RZB54..20S;BB53,RZB53,TRB53,XZB53..CBU200404-201403

IVORY,TRIM4#

63373BMOULDING, ROOF BOARD SET, NO.3

main63373-36050-A0×2iBB5#,RZB5#200012-200310

IVORY,TRIM4#

63373CMOULDING, ROOF BOARD SET, NO.3

main63373-36070-A0×2iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63373-36120-A0×3iTRB53,XZB53..STD201209-201403

W(ESCAPE HATCH),IVORY,TRIM4#

main63373-36130-A0×3iTRB53,XZB53..CBU201209-201403

W(ESCAPE HATCH & ROOM RACK),IVORY,TRIM4#

63374MOULDING, ROOF BOARD SET

main63374-36040-A0×2iBB5#,RZB5#200012-200310

IVORY,TRIM4#

63376ACLIP, HEADLINING, NO.2

main63382-36010-A0×4iTRB53,XZB53..CBU200704-201403

IVORY,TRIM4#

main90467-07132×4iBB5#,RZB5#200012-200310

63379BCOVER, ROOF HEADLINING MOULDING END

main63379-36010-A1×8iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63379-36040-A0×8iBB5#,RZB5#,TRB53,XZB53200410-201403

IVORY,TRIM4#

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-36010×3iBB5#,RZB5#200012-200310

63383DRETAINER, ROOF HEADLINING, REAR

main63383-36020×4iTRB53,XZB53200310-201108

63384BBRACKET, ROOF HEADLINING TRIM RETAINER

main63384-36020iBB5#,RZB5#200012-200310

63385BRETAINER, ROOF HEADLINING TRIM SIDE, NO.1

main63385-36010×6iBB5#,RZB5#200012-200310

63386ARETAINER, ROOF HEADLINING TRIM SIDE, LH

main63386-36010×4iBB5#,RZB5#200012-200101

63399CCLIP, ROOF HEADLINING

main63399-36060×67iBB5#,RZB5#; BB54,RZB54200012-200310

W(ROOM RACK)

main63399-37010×46iTRB53,XZB53200903-201301

RH & LH

63651BNET, AIR INTAKE

main63651-36011-A1iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63651-36030-A0iBB5#,RZB5#,TRB53,XZB53200410-201403

IVORY,TRIM4#

63656DCOVER, AIR INTAKE, CENTER

main63656-36010-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

main63656-36030-A0iBB5#,RZB5#,TRB53,XZB53200410-201403

IVORY,TRIM4#

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9015950351

main90159-50351

9165160830

main91651-60830

9356015012

main93560-15012

9356015016

main93560-15016

9356855016

main93568-55016

33 parts on this diagram · 3 diagrams in section
