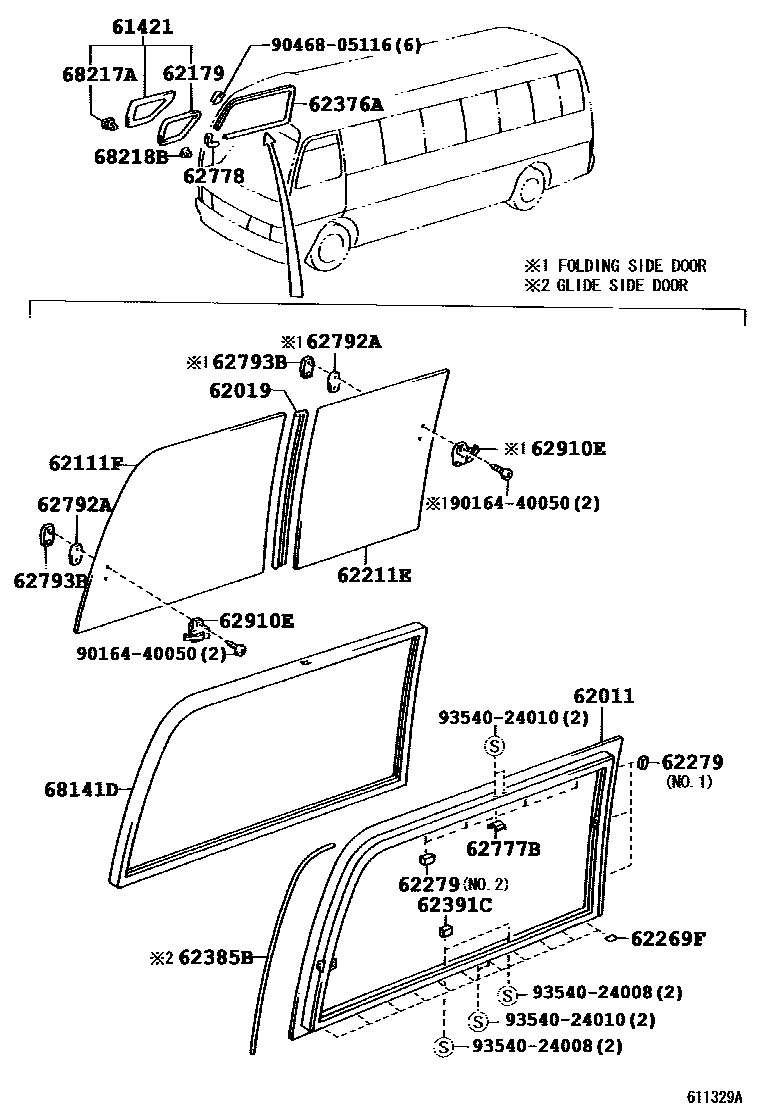

SIDE WINDOW

0001 1 0002 1SLIDE TYPE 0003 1FIX TYPE 0004 1SLIDE TYPE 0005 1FIX TYPE 0006 1SLIDE TYPE 0007 1FIX TYPE 0008 1SLIDE TYPE 0009 1FIX TYPE 0010 1SLIDE TYPE 0011 1FIX TYPE 0012 1

61421GLASS, SIDE LOWER WINDOW

main62109-36070iBB5#,RZB5#200012-200304

*TT,T=3.5,GREEN

main62109-36071iBB5#,RZB5#200304-200310

*TT,T=3.5,GREEN

62011FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER RH

main62011-36040iBB54,RZB54,TRB53,XZB53..STD,STDH200310

main62011-36050iBB53,RZB53200012-200310

62019FRAME SUB-ASSY, SIDE WINDOW, CENTER RH

main62019-36050iBB54,RZB54200012-200310

main62019-36060iBB53,RZB53200012-200310

62111FGLASS, FRONT SIDE WINDOW, FRONT RH

main62111-36070iBB5#,RZB5#200012-200304

*TT,T=5.0,GREEN

main62111-36071iBB5#,RZB5#200304-200310

*TT,T=5.0,GREEN

62179DAM, SIDE LOWER WINDOW

main62179-36010iBB5#,RZB5#200012-200310

62211EGLASS, SIDE WINDOW, REAR RH

main62221-36090iBB54,RZB54200012-200304

*TT,T=5.0,GREEN

main62221-36091iBB54,RZB54200304-200310

*TT,T=5.0,GREEN

main62711-36050iBB53,RZB53200012-200304

*TT,T=5.0,GREEN

main62711-36051iBB53,RZB53,TRB53,XZB53..EX,LX200310

*TT,T=5.0,GREEN

62269FFILM, SIDE WINDOW FRAME

main62269-90K01×11iBB5#,RZB5#200012-200310

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-36010×3iBB5#,RZB5#200012-200310

NO.1

main62279-36030×4iBB5#,RZB5#200012-200310

NO.2

62376ACLIP, SIDE WINDOW, NO.2

main62376-0S010-A0iTRB53,XZB53200708-201403

IVORY,TRIM4#

main62376-36020-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

62385BSEAL, SIDE WINDOW, NO.5

main62385-36020iBB53,RZB53200012-200310

62391CSTOPPER, SIDE WINDOW, NO.1 RH

main62391-36010×2iBB5#,RZB5#200012-200310

62777BCAP, SIDE WINDOW CENTER SASH

main62777-36021iBB5#,RZB5#200012-200310

62778CAP, SIDE WINDOW FRONT SASH

main62778-36010-A1iBB5#,RZB5#200012-200310

IVORY,TRIM4#

62792APACKING, SIDE WINDOW LOCK, RH

main62792-95A00iBB5#,RZB5#200012-200310

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95J00iBB54,RZB54,TRB53,XZB53..STD,STDH200310

62910ELOCK ASSY, SIDE WINDOW

main62910-95702iBB5#,RZB5#200012-200310

68141DRUN, SIDE FRONT WINDOW, RH

main68141-36012iBB54,RZB54200012-200310

main68141-36022iBB53,RZB53200012-200310

68217APIN, SIDE WINDOW , NO.1

main68217-36010iBB5#,RZB5#200012-200310

BLACK

main68217-36020iBB5#,RZB5#,TRB53,XZB53200310

WHITE

main68217-36030iBB5#,RZB5#200012-200310

ORANGE

68218BBUSH, SIDE WINDOW

main68218-36010×3iBB5#,RZB5#200012-200310

9016440050

main90164-40050

9046805116

main90468-05116

9354024008

main93540-24008

9354024010

main93540-24010

23 parts on this diagram · 12 diagrams in section
