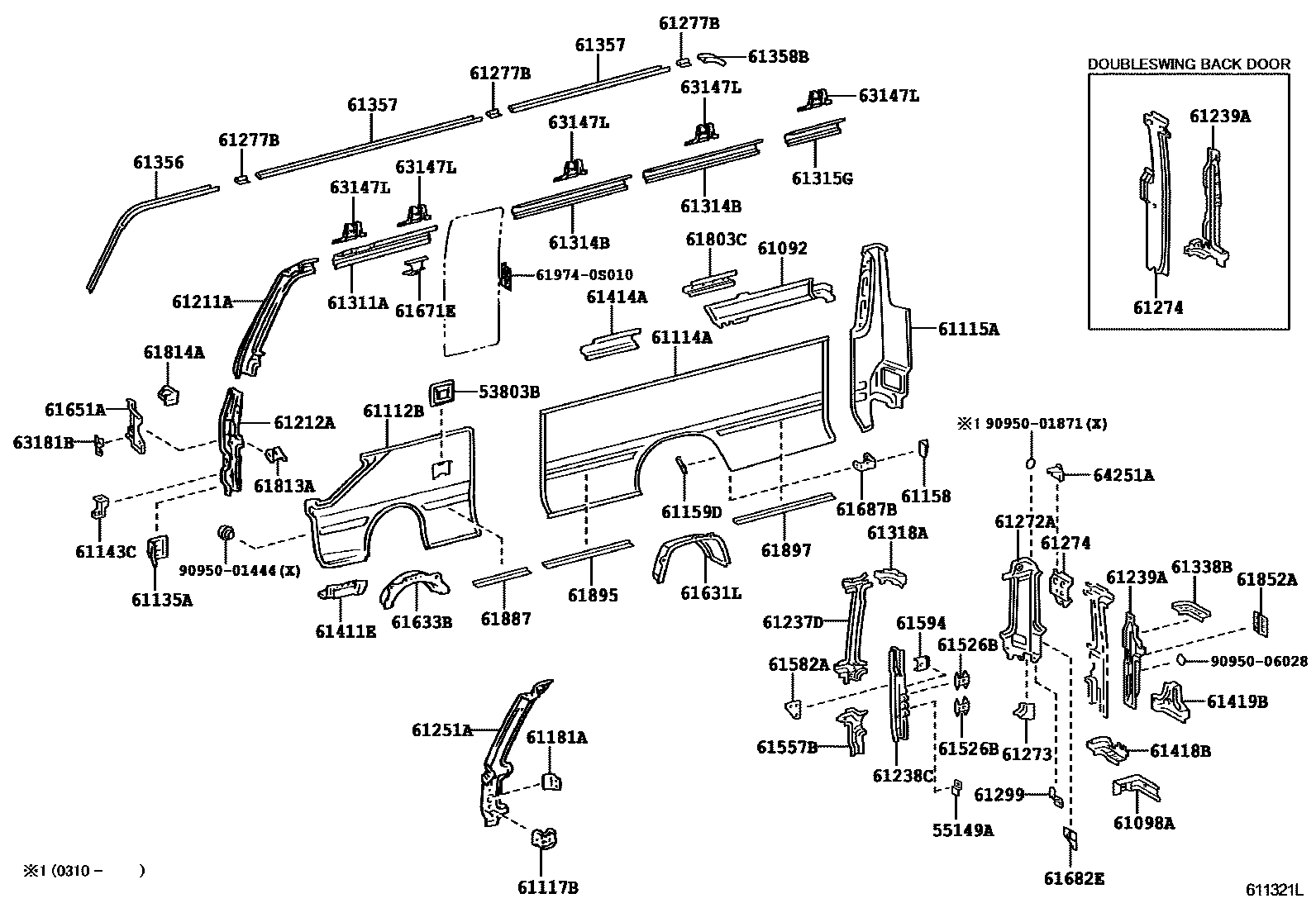

SIDE MEMBER
53803BBRACKET SUB-ASSY, FRONT SIDE PANEL, RH
55149ABRACKET, DASH WIRING HARNESS
61092RAIL SUB-ASSY, NO.3 LOWER INNER, RH
61098ASTIFFENER SUB-ASSY, PILLAR NO.10, INNER RH
61112BPANEL, NO.2 SIDE, RH
61114APANEL, NO.3 SIDE, RH
61115APANEL, NO.4 SIDE, RH
61117BRETAINER, WASHER TANK
61135AREINFORCEMENT, FRONT BODY PILLAR, OUTER
61143CSUPPORT, FRONT BUMPER SIDE, RH
61158RETAINER, SIDE PANEL, NO.1
61159DRETAINER, SIDE PANEL, NO.2 RH
61181ABRACKET, INSTRUMENT SIDE, RH
61211APILLAR, NO.1 OUTER, UPPER RH
61212APILLAR, NO.1 OUTER, LOWER RH
61237DPILLAR, NO.9 OUTER, UPPER RH
61238CRAIL, ROOF SIDE, INNER NO.4 LH
61251APILLAR, NO.1 INNER, RH
61272APILLAR, NO.9 INNER, RH
61273PILLAR, NO.9 INNER, LOWER RH
61274PILLAR, NO.10 INNER, RH
W(DOUBLE SWING BACK DOOR)
61277BJOINT, ROOF DRIP CHANNEL
61299BRACKET, NO.9 INNER PILLAR BLOWER
61311ARAIL, NO.1 UPPER OUTER, RH
61314BRAIL, NO.2 UPPER OUTER, RH
W(SIDE WINDOW FIX TYPE)
61315GRAIL, NO.3 UPPER OUTER, RH
61318ARAIL, NO.6 UPPER OUTER, RH
61338BRAIL, REAR SIDE NO.2, RH
61356CHANNEL, ROOF DRIP SIDE, FRONT RH
61357CHANNEL, ROOF DRIP SIDE, CENTER NO.1
61358BCHANNEL, ROOF DRIP SIDE, REAR RH
61411ERAIL, NO.1 LOWER OUTER, RH
61414ARAIL,NO.4 LOWER OUTER, RH
61418BRAIL, NO.8 LOWER OUTER, RH
61419BRAIL, NO.9 LOWER OUTER
61526BBRACKET, SEAT ANCHOR, NO.2 RH
LOWER
61557BGUSSET, PILLAR TO RAIL, NO.2
61582ABRACKET, REAR SEAT, NO.2
61594BRACKET, STIFFENER, NO.4
61631LPANEL, REAR WHEEL HOUSE, OUTER RH
61651AGUSSET, PILLAR SHEAR, NO.1 RH
61671EREINFORCEMENT, SEAT BELT ANCHOR, UPPER
61682EPLATE, QUARTER PANEL, LOWER NO.2
61687BBRACKET, MUDGUARD, REAR RH
61803CRAIL SUB-ASSY, NO.4 LOWER OUTER, RH
61813APLATE, DUSTPROOF, NO.1 RH
61814APLATE, DUST PROOF, NO.2 RH
61852APLATE, NO.5 PILLAR BOARD SET
61887RAIL, SIDE PANEL DUST PROOF, NO.1 RH
61895RAIL, SIDE PANEL DUST PROOF, NO.2 RH
61897RAIL, SIDE PANEL DUST PROOF, NO.3 RH
63147LBRACKET, ROOF PANEL REINFORCEMENT
63181BBRACKET, SIGNAL, FRONT RH
64251ABRACKET, REAR SEATBACK STOP
619740S010REINFORCEMENT, CENTER PILLAR, NO.4
main61974-0S010
9095001444
main90950-01444
9095001871
main90950-01871
9095006028
main90950-06028
60 parts on this diagram · 5 diagrams in section
