FLOOR MAT & SILENCER PAD

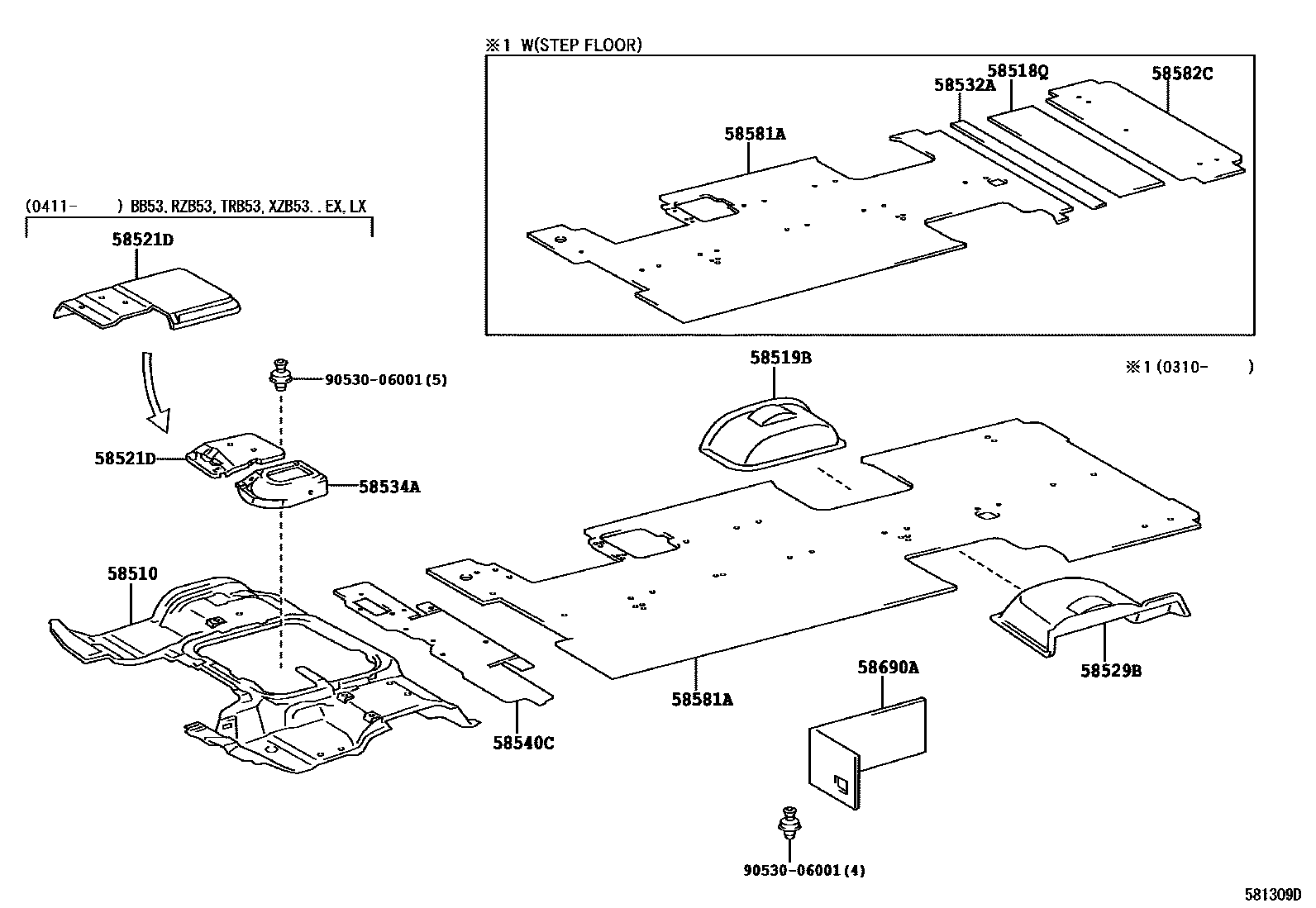

Parts diagram
58510MAT ASSY, FRONT FLOOR, FRONT NO.1
main58510-3B020-E0i200012-200310
GREIGE,TRIM4#
main58510-3B021i200611-200701
main58510-3B021-E0i200701-201403
GREIGE,TRIM4#
58518QPAD, HEEL, NO.2
main58518-36100-E0i200310-200407
GREIGE,TRIM4#
main58518-36101i200407-201403
58519BMAT, REAR WHEEL HOUSE, RH
main58580-36070-E0i200401-200411
GREIGE,TRIM4#
main58580-36080-E0i200012-200310
GREIGE,TRIM4#
main58580-36090-E0i200401-200610
GREIGE,TRIM4#
main58580-36091i200611-200701
main58580-36091-E0i200701-201403
GREIGE,TRIM4#
main58580-36101-E0i200701-201403
GREIGE,TRIM4#
58521DMAT, ENGINE SERVICE HOLE COVER
main58521-0S010-E0i201108-201403
GREIGE,TRIM4#
main58521-36140-E0i200310-200411
GREIGE,TRIM4#
main58521-36170-E0i200411-201108
GREIGE,TRIM4#
58529BMAT, REAR WHEEL HOUSE, LH
main58590-36070-E0i200012-200310
GREIGE,TRIM4#
main58590-36071i200611-200701
main58590-36071-E0i200701-201403
GREIGE,TRIM4#
58532AMAT, CENTER FLOOR CROSMMBER
main58532-36020i200701-201403
main58532-36020-E0i200310-200701
GREIGE,TRIM4#
58534AMAT, TRANSMISSION COVER
main58534-36050-E0i200012-200310
GREIGE,TRIM4#
58540CMAT ASSY, FLOOR, REAR
main58540-0S010-E0i201108-201403
GREIGE,TRIM4#
main58540-36350-E0i200310-200411
GREIGE,TRIM4#
main58540-36360-E0i200310-200610
GREIGE,TRIM4#
main58540-36361i200611-200701
main58540-36361-E0i200701-201403
GREIGE,TRIM4#
58581AMAT, REAR FLOOR
main58581-0S010-E0i201108-201209
GREIGE,TRIM4#
main58581-0S011-E0i201209-201403
GREIGE,TRIM4#
main58581-0S020-E0i201108-201209
GREIGE,TRIM4#
main58581-0S021-E0i201209-201403
GREIGE,TRIM4#
main58581-0S030-E0i201108-201209
W(*FD AUTO(W/BUZZER)),GREIGE,TRIM4#
main58581-0S031-E0i201209-201403
W(*FD AUTO(W/BUZZER)),GREIGE,TRIM4#
main58581-0S040-E0i201108-201209
GREIGE,TRIM4#
main58581-0S041-E0i201209-201403
GREIGE,TRIM4#
main58581-0S050-E0i201108-201209
GREIGE,TRIM4#
main58581-0S051-E0i201209-201403
GREIGE,TRIM4#
main58581-0S060-E0i201108-201209
W(*FD AUTO(W/BUZZER)),GREIGE,TRIM4#
main58581-0S061-E0i201209-201403
W(*FD AUTO(W/BUZZER)),GREIGE,TRIM4#
main58581-36P10-E0i200312-200407
W(*FD AUTO & REAR HEATER),GREIGE,TRIM4#
main58581-36Y80-E0i200701-201108
GREIGE,TRIM4#
main58581-36Y90-E0i200701-201108
W(*FD AUTO),GREIGE,TRIM4#
main58581-3J400-E0i200012-200111
W(*FD),GREIGE,TRIM4#
main58581-3J401-E0i200111-200310
W(*FD),GREIGE,TRIM4#
main58581-3J410-E0i200012-200111
W(*FD AUTO),GREIGE,TRIM4#
main58581-3J411-E0i200111-200310
W(*FD AUTO),GREIGE,TRIM4#
main58581-3J420-E0i200012-200111
W(*FD & REAR HEATER),GREIGE,TRIM4#
main58581-3J421-E0i200310-200407
GREIGE,TRIM4#
main58581-3J422-E0i200407-200411
GREIGE,TRIM4#
main58581-3J430-E0i200012-200111
W(*FD AUTO & REAR HEATER),GREIGE,TRIM4#
main58581-3J431-E0i200111-200310
W(*FD AUTO & REAR HEATER),GREIGE,TRIM4#
main58581-3J432-E0i200407-200411
W(*FD AUTO & REAR HEATER),GREIGE,TRIM4#
main58581-3J440-E0i200012-200111
GREIGE,TRIM4#
main58581-3J441-E0i200111-200310
GREIGE,TRIM4#
main58581-3L070-E0i200310-200407
GREIGE,TRIM4#
main58581-3L071-E0i200407-201108
GREIGE,TRIM4#
main58581-3L080-E0i200310-200407
W(STEP FLOOR),GREIGE,TRIM4#
main58581-3L081i200407-200701
58582CMAT, REAR FLOOR, REAR
main58581-3L070-E0i200407-201403
GREIGE,TRIM4#
main58582-36040-E0i200310-200407
GREIGE,TRIM4#
58690ACARPET ASSY, CENTER DOOR STEP
main58690-36070-E0i200310-200610
GREIGE,TRIM4#
main58690-36071i200611-200701
main58690-36071-E0i200701-201403
GREIGE,TRIM4#
9053006001
main90530-06001

12 parts on this diagram · 2 diagrams in section
