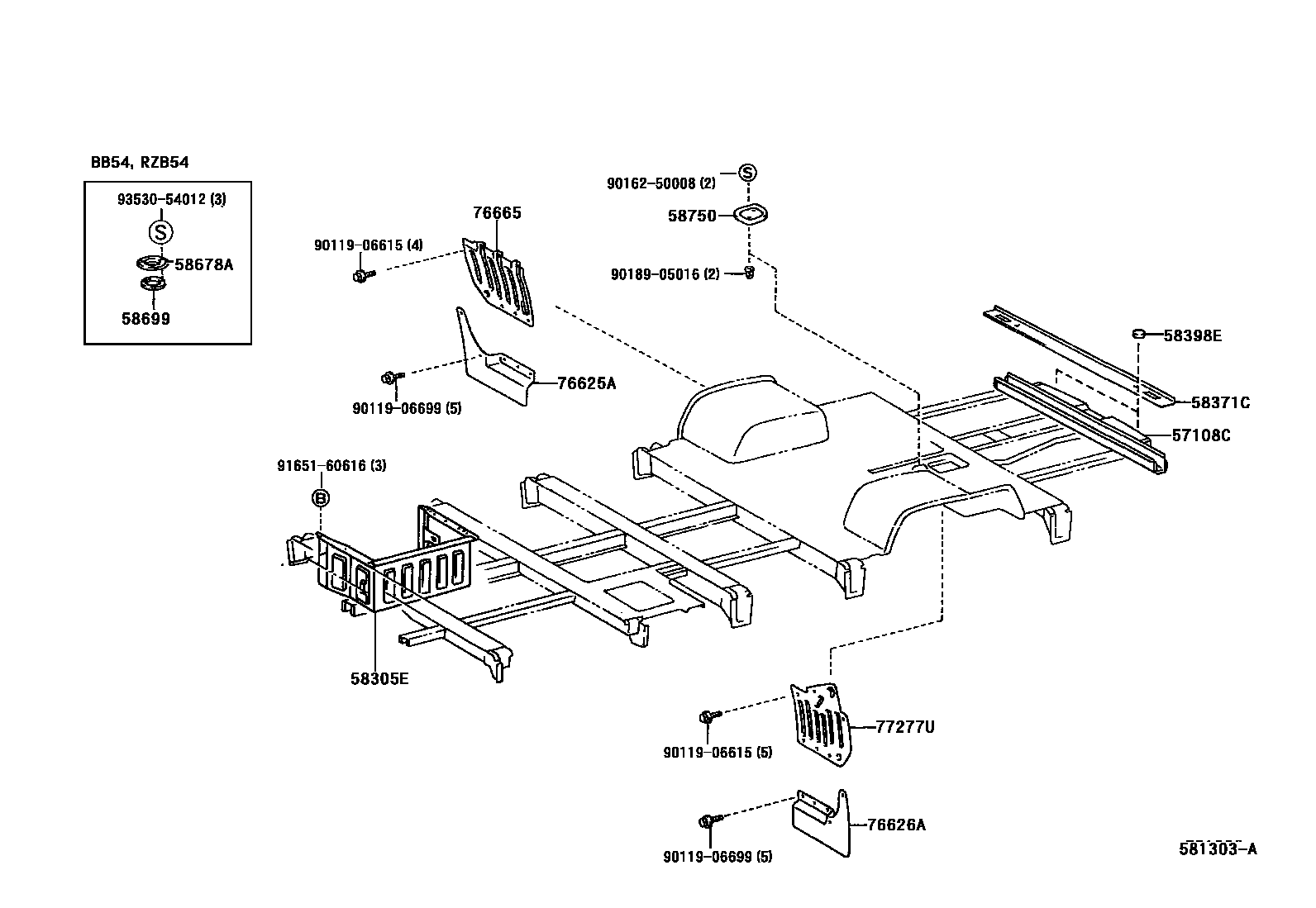

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

57108CCROSSMEMBER SUB-ASSY, FLOOR, NO.8

main57108-36030iBB5#,RZB5#200012-200310

main57108-36040iTRB53,XZB53;BB54,RZB54..23S,29S,30S200310-201108

W(STAIR FLOOR)

58305EPANEL SUB-ASSY, CENTER DOOR STEP

main58305-0S010iTRB53,XZB53..STD201108

main58305-0S030iTRB53,XZB53..EX,LX201108-201209

main58305-0S040iTRB53,XZB53..EX,LX201209

main58305-36220iBB54,RZB54,TRB53,XZB53..STD,STDH200310-201107

main58305-36240iBB53,RZB53200012-200310

58371CPANEL, BODY LOWER BACK, UPPER

main58371-36010iBB5#,RZB5#,TRB53,XZB53200310

58398ECOVER, FLOOR UNDER, NO.1

main58398-36020×2iBB5#,RZB5#200012-200310

58678APLATE, REAR FLOOR MAT DRIP

main58678-90B00-A0iBB54,RZB54200012-200104

IVORY,TRIM4#

main58678-90B00-E0iBB54,RZB54,TRB53,XZB53..23S,29S,30S200310-201403

GREIGE,TRIM4#

58699PACKING, REAR FLOOR MAT DRIP

main58699-90B00iTRB53,XZB53..23S200310

58750COVER ASSY, FUEL TANK INSPECTION HOLE

main58750-0S010-E0iTRB53,XZB53200709-201403

GREIGE,TRIM4#

main58750-36020-E0iBB5#,RZB5#200012-200310

GREIGE,TRIM4#

76625AMUDGUARD, REAR BODY, RH

main76625-36030iBB5#,RZB5#200012-200310

76626AMUDGUARD, REAR BODY, LH

main76626-36030iBB5#,RZB5#200012-200310

76665BRACE, REAR MUDGUARD

main76665-36010iBB5#,RZB5#200012-200310

main76665-36020iBB5#,RZB5#,TRB53,XZB53200404

77277UPROTECTOR, FUEL TANK FILLER PIPE

main77277-36010iBB5#,RZB5#200012-200310

main77277-36020iBB5#,RZB5#,TRB53,XZB53200404

9011906615

main90119-06615

9011906699

main90119-06699

9016250008

main90162-50008

9018905016

main90189-05016

9165160616

main91651-60616

9353054012

main93530-54012

17 parts on this diagram · 5 diagrams in section
