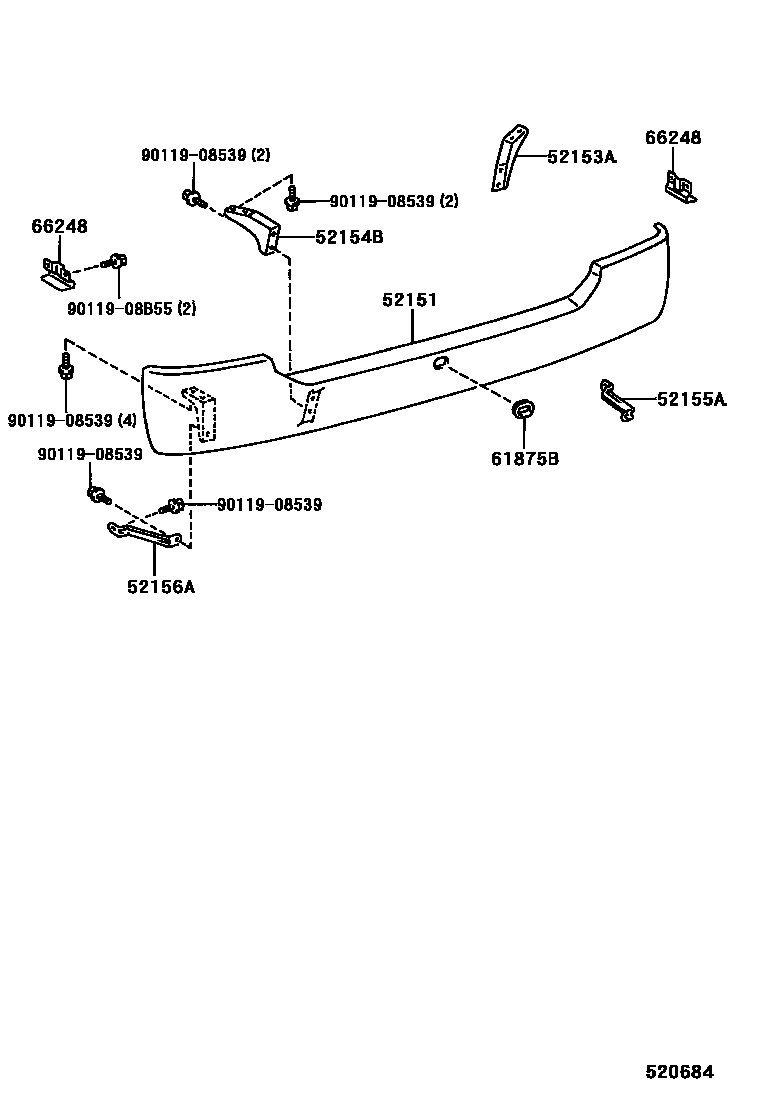

REAR BUMPER & BUMPER STAY

52151BUMPER ASSY, REAR

main52105-36900iBB5#,RZB5#200012-200310

main52105-36902iBB5#,RZB5#,TRB53,XZB53..CBU200310

52153ASTAY, REAR BUMPER SIDE, RH

main52153-0S010iTRB53,XZB53..CBU201104

main52153-36010iBB5#,RZB5#,TRB53,XZB53200310-201103

52154BSTAY, REAR BUMPER SIDE, LH

main52154-0S010iTRB53,XZB53..CBU201104

main52154-36010iBB5#,RZB5#200012-200310

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-36010iBB5#,RZB5#,TRB53,XZB53..CBU200310

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-36010iBB5#,RZB5#200012-200310

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-36010iBB5#,RZB5#200012-200310

66248PROTECTOR, REAR BODY SIDE PANEL, RH

main66248-36010×2iBB5#,RZB5#200012-200310

9011908539

main90119-08539

9011908B55

main90119-08B55

9 parts on this diagram · 1 diagram in section
