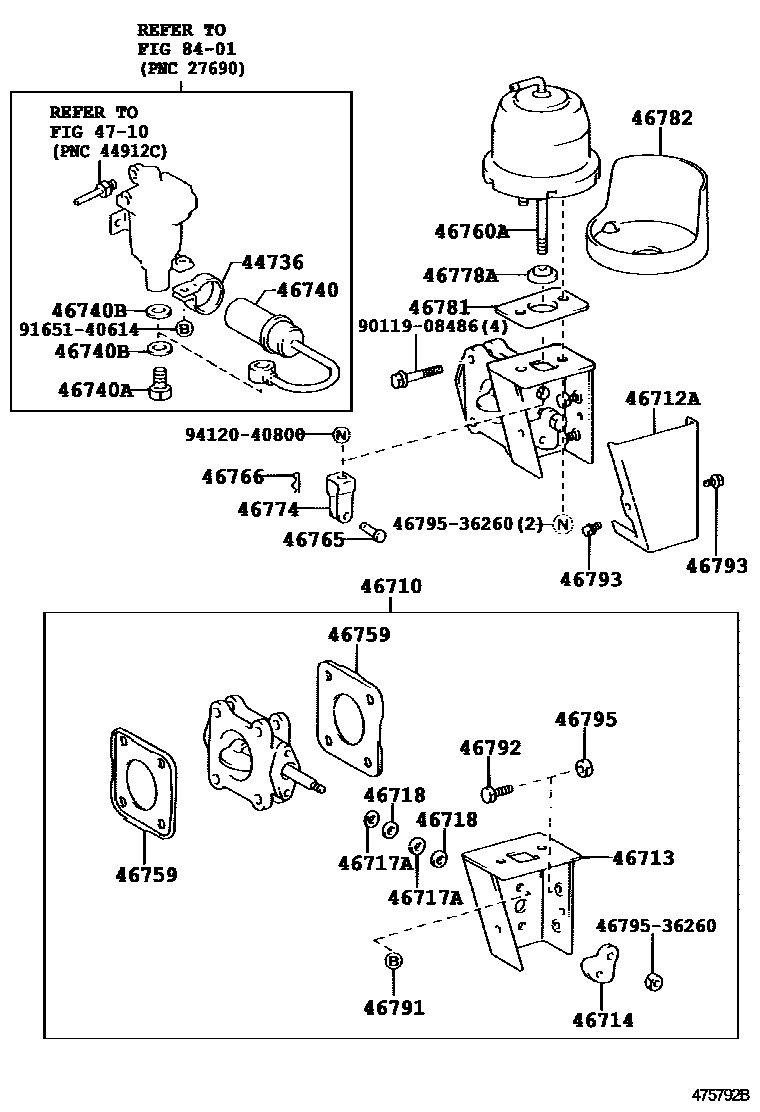

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER
44736BRACKET, AIR CLEANER
46710VALVE ASSY, EXHAUST BRAKE
46712ACOVER, EXHAUST BRAKE BRACKET
46713BRACKET, EXHAUST VALVE
46717ARING, EXHAUST VALVE SEAL, NO.1
46718RING, EXHAUST VALVE SEAL, NO.2
46740CLEANER ASSY, EXHAUST RETARDER
46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)
46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)
46759GASKET, EXHAUST RETARDER
46760CYLINDER ASSY, EXHAUST RETARDER VACUUM
46760ACHAMBER ASSY, EXHAUST BRAKE
46765PIN, VACUUM CYLINDER CLEVIS
46766PIN, VACUUM CYLINDER CLEVIS SNAP
46778BEARING, VACUUM CYLINDER
46778ABEARING, EXHAUST BRAKE CHAMBER ROD
46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2
46791BOLT, EXHAUST VALVE COVER
46792BOLT, EXHAUST VALVE STOPPER
46793BOLT, EXHAUST VALVE LINK COVER
4710
8401
4679536260NUT, EXHAUST VALVE BRACKET
main46795-36260
9011908486
main90119-08486
9165140614
main91651-40614
9412040800
main94120-40800
31 parts on this diagram · 3 diagrams in section
