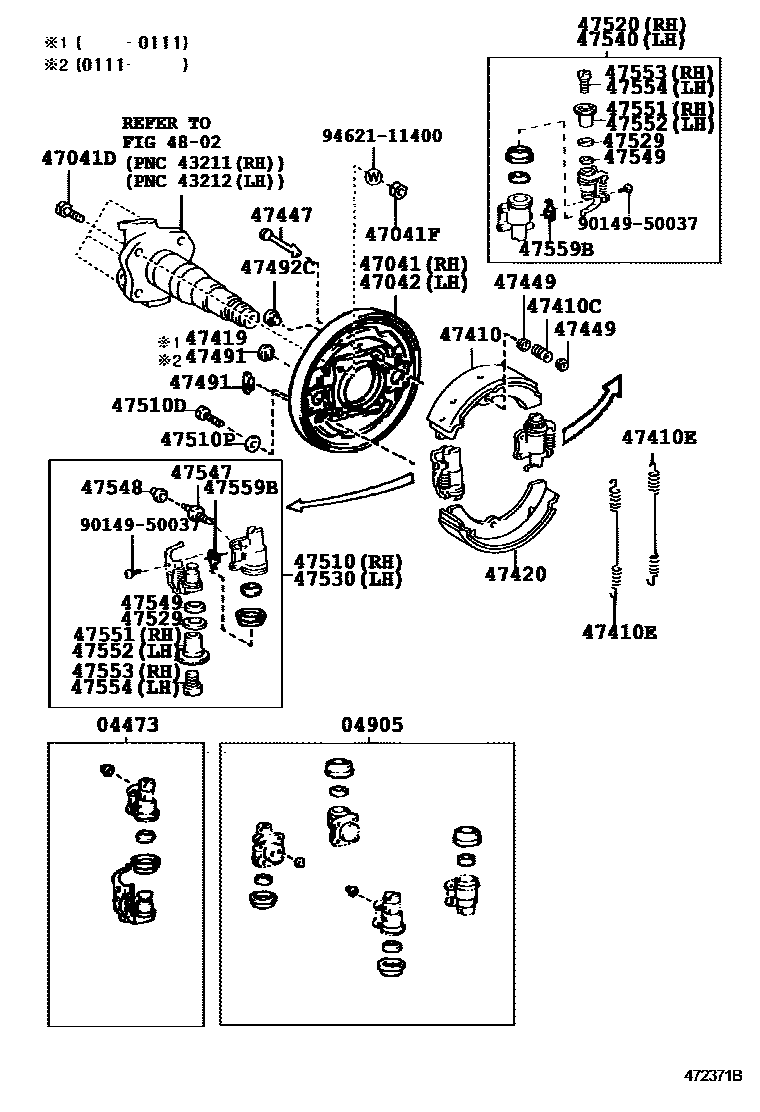

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04473CYLINDER KIT, FRONT WHEEL

main04473-36050×2iBB54,RZB54200012-200310

RH

sub04473-36051

main04473-36060×2iBB54,RZB54200012-200310

LH

sub04473-36061

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36150iBB54,RZB54200012-200310

sub04905-36151

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36190iBB54,RZB54200012-200310

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-14001×8iBB54,RZB54200012-200310

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94130-01441×8iBB54,RZB54200012-200310

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36190iBB54,RZB54200012-200310

47410SHOE ASSY, FRONT BRAKE(FOR FRONT OR UPPER SIDE)

main47420-36130iBB54,RZB54200012-200310

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012×4iBB54,RZB54200012-200310

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90507-29006×4iBB54,RZB54200012-200310

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011×4iBB54,RZB54200012-200111

47420SHOE ASSY, FRONT BRAKE(FOR REAR OR LOWER SIDE)

main47420-36130iBB54,RZB54200012-200310

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-36020×4iBB54,RZB54200012-200310

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iBB54,RZB54200012-200310

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×4iBB54,RZB54200012-200111

main47491-36020×8iBB54,RZB54200111-200310

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47492-28010×4iBB54,RZB54200012-200310

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36180iBB54,RZB54200012-200310

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-10127×16iBB54,RZB54200012-200310

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-10287×16iBB54,RZB54200012-200310

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36190iBB54,RZB54200012-200310

47529SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST

main47529-36010×4iBB54,RZB54200012-200310

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36180iBB54,RZB54200012-200310

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36190iBB54,RZB54200012-200310

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iBB54,RZB54200012-200310

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iBB54,RZB54200012-200310

47549SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT

main47549-36010×4iBB54,RZB54200012-200310

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-36020×2iBB54,RZB54200012-200310

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47507-36020×2iBB54,RZB54200012-200310

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36070×2iBB54,RZB54200012-200310

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36070×2iBB54,RZB54200012-200310

47559BSPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT

main47559-36010×4iBB54,RZB54200012-200310

4802

9014950037

main90149-50037

9462111400

main94621-11400

33 parts on this diagram · 1 diagram in section
