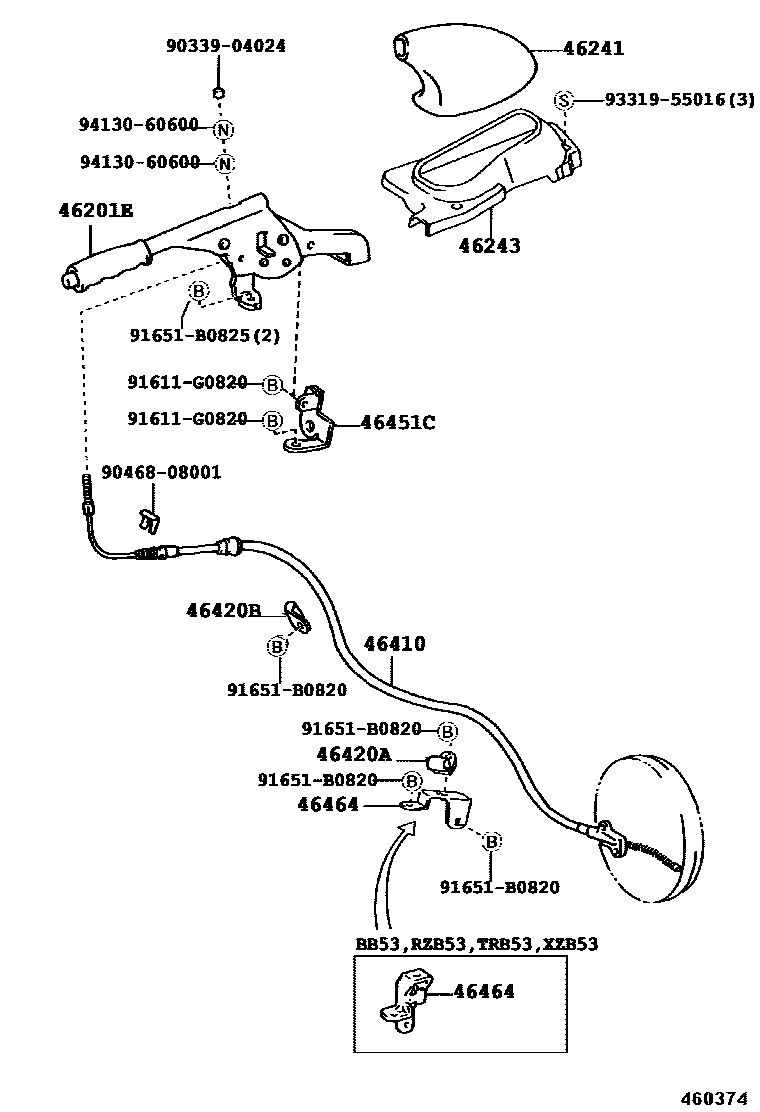

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-0S010-E0iTRB53,XZB53200710-201403

GREIGE,TRIM4#

main46210-36050-E0iBB5#,RZB5#200012-200710

GREIGE,TRIM4#

sub46210-0S010

46241BOOT, PARKING BRAKE LEVER

main46241-0S010-E0iTRB53,XZB53200710-201403

GREIGE,TRIM4#

main46241-36030-E0iBB5#,RZB5#200012-200404

GRAIGE,TRIM4#

main46241-36040-E0iBB5#,RZB5#,TRB53,XZB53200404-200710

GREIGE,TRIM4#

sub46241-0S010

46243COVER, PARKING BRAKE LEVER

main46243-36031-E0iBB5#,RZB5#200012-200404

GREIGE,TRIM4#

sub46243-36031

main46243-36040-E0iBB5#,RZB5#,TRB53,XZB53200404-201403

GREIGE,TRIM4#

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36520iBB54,RZB54200012-200701

main46410-36550iRZB53200012-200310

main46410-36560iBB53200012-200310

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01359iBB54,RZB54200012-200701

main90949-01839iBB53,RZB53200012-200310

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01842iBB5#,RZB5#200012-200310

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-36060iBB5#,RZB5#,TRB53,XZB53200012-200310

46464PLATE, CABLE CLAMP SUPPORT

main46464-36030iBB53,RZB53,TRB53,XZB53200012-200310

main46464-36040iBB54,RZB54200012-200701

9033904024

main90339-04024

9046808001

main90468-08001

91611G0820

main91611-G0820

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9331955016

main93319-55016

9413060600

main94130-60600

15 parts on this diagram · 2 diagrams in section
