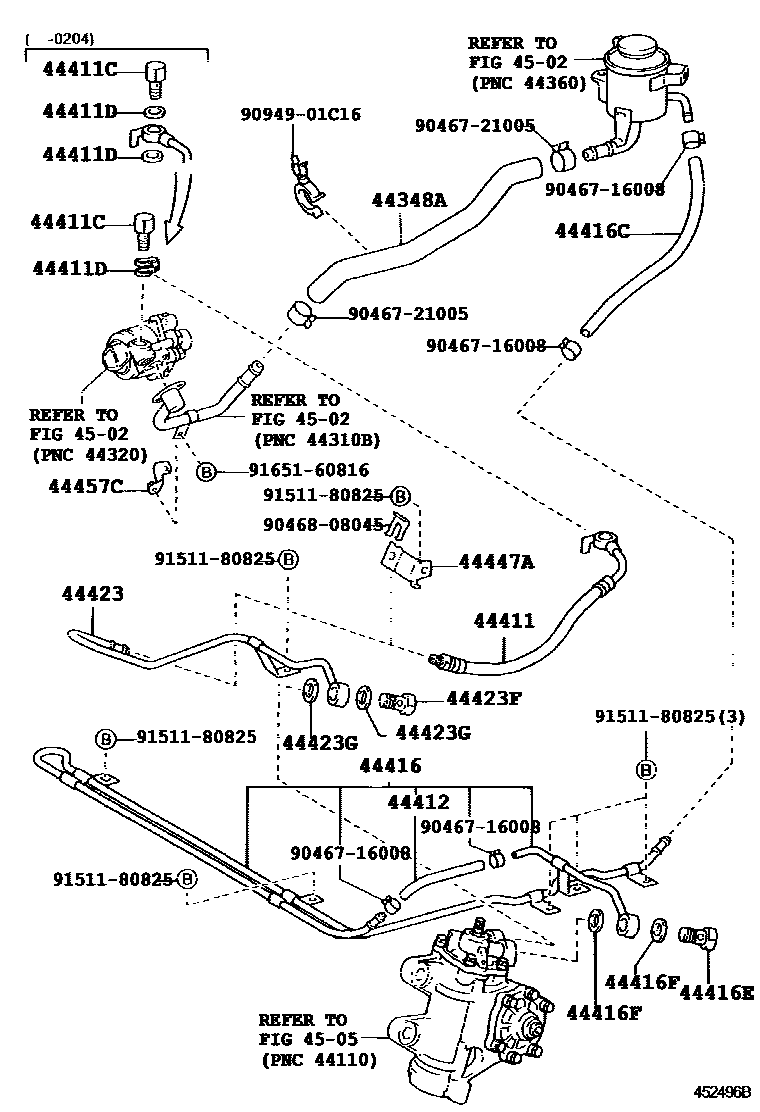

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36170iRZB53200012-200701

sub44348-36171

main44348-36330iRZB54200012-200701

main44348-36340iBB5#200012-200310

main44348-36360iXZB53200701-201108

main44348-36370iTRB53200701

main44348-36380iXZB53201108

main44348-37010iBB5#200310-200504

sub44348-36410

main44348-37011iBB5#200504-200701

sub44348-36420

44411HOSE, PRESSURE FEED

main44411-36371iBB53200012-200701

main44411-36471iRZB53200012-200701

main44411-36520iBB54200012-200310

main44411-36530iRZB54200012-200701

main44411-36540iBB54200310-200701

main44411-36560iXZB53200701

main44411-36570iTRB53200701

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iTRB53200701

main90404-16024iBB5#200012-200701

main90904-01001iRZB5#200012-200701

main96341-41603iXZB53200701

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30030iBB5#,RZB5#,XZB53200204-200310

main44327-30040iTRB53200701

main90430-16168iBB5#,RZB5#200012-200204

44412HOSE, RETURN

main44428-36010iRZB54200012-200701

main90445-18137iBB53,RZB53,TRB53,XZB53200012-200310

main90445-18158iBB54200012-200701

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36320iBB54200012-200310

main44416-36340iRZB54200012-200701

main44416-36361iBB53,XZB53200310

main44416-36381iRZB53200012-200310

main44416-36390iBB53200012-200310

main44416-36400iBB54200310-200701

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main44412-36020iBB54200012-200310

main44412-36050iBB5#200504-200701

main44412-36060iXZB53200701-201108

main44412-36070iXZB53201108

main90445-18129iBB53200012-200310

main90445-18139iRZB5#200012-200310

main90445-18150iBB5#200310-200504

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-14003iBB5#,RZB5#200012-200310

44416FGASKET(FOR RETURN TUBE)

main90430-14014iTRB53,XZB53200709

main90430-14235iBB5#,RZB5#200012-200708

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36241iXZB53200012-200701

main44423-36260iBB54..29S200012-200701

44423FBOLT, UNION

main90401-14003iBB5#,RZB5#,TRB53,XZB53200012-200310

44423GGASKET, UNION BOLT

main90430-14014iTRB53,XZB53200709

main90430-14235iBB5#,RZB5#200012-200708

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36210iBB5#200012-200701

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-36040iBB5#200012-200701

4502

4505

9046716008

main90467-16008

9046721005

main90467-21005

9046808045

main90468-08045

9094901C16

main90949-01C16

9151180825

main91511-80825

9165160816

main91651-60816

22 parts on this diagram · 8 diagrams in section
