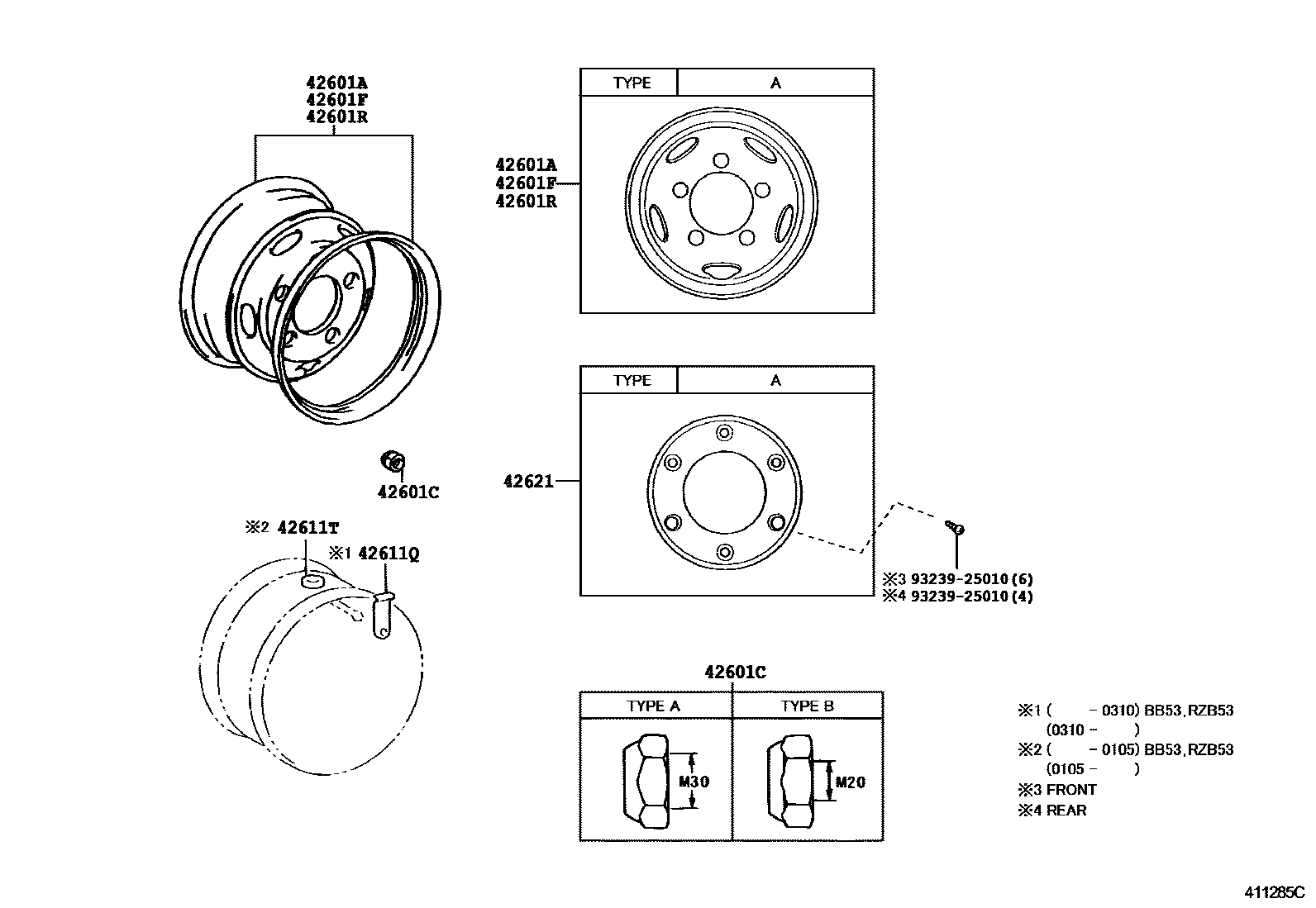

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42610-36490iBB5#,RZB5#200012-200310

16X5.50F,TYPE A:REFER ILLUST.

sub42610-36491

42601CNUT, HUB (FOR AXLE)

main42633-55030×5iBB5#,RZB5#,TRB53,XZB53..CBU200310

TYPE A:REFER TO ILLUSTRATION,RH

main42634-55030×5iBB5#,RZB5#,TRB53,XZB53..CBU200310

TYPE A:REFER TO ILLUSTRATION,LH

main90942-01107×5iBB5#,RZB5#,TRB53,XZB53..CBU200310

TYPE B:REFER TO ILLUSTRATION,RH

main90942-01108×5iBB5#,RZB5#,TRB53,XZB53..CBU200310

TYPE B:REFER TO ILLUSTRATION,LH

42601FWHEEL, DISC (FOR FRONT)

main42610-36490×2iBB5#,RZB5#200012-200310

16X5.50F,TYPE A:REFER ILLUST.

sub42610-36491

42601RWHEEL, DISC (FOR REAR)

main42610-36490×4iBB5#,RZB5#,TRB53,XZB53200310

16X5.50F

sub42610-36491

42611QCLIP (FOR TUBE)

main90468-10014×7iBB53,RZB53200012-200310

42611TWASHER (FOR TUBE)

main90201-11009×7iBB5#,RZB5#,TRB53,XZB53200310

42621CAP, WHEEL

main42621-36160×2iBB5#,RZB5#200012-200310

TYPE A:REFER TO ILLUSTRATION,FRONT

main42621-36170×2iBB5#,RZB5#200012-200310

TYPE A:REFER TO ILLUSTRATION,REAR

9323925010

main93239-25010

8 parts on this diagram · 2 diagrams in section
