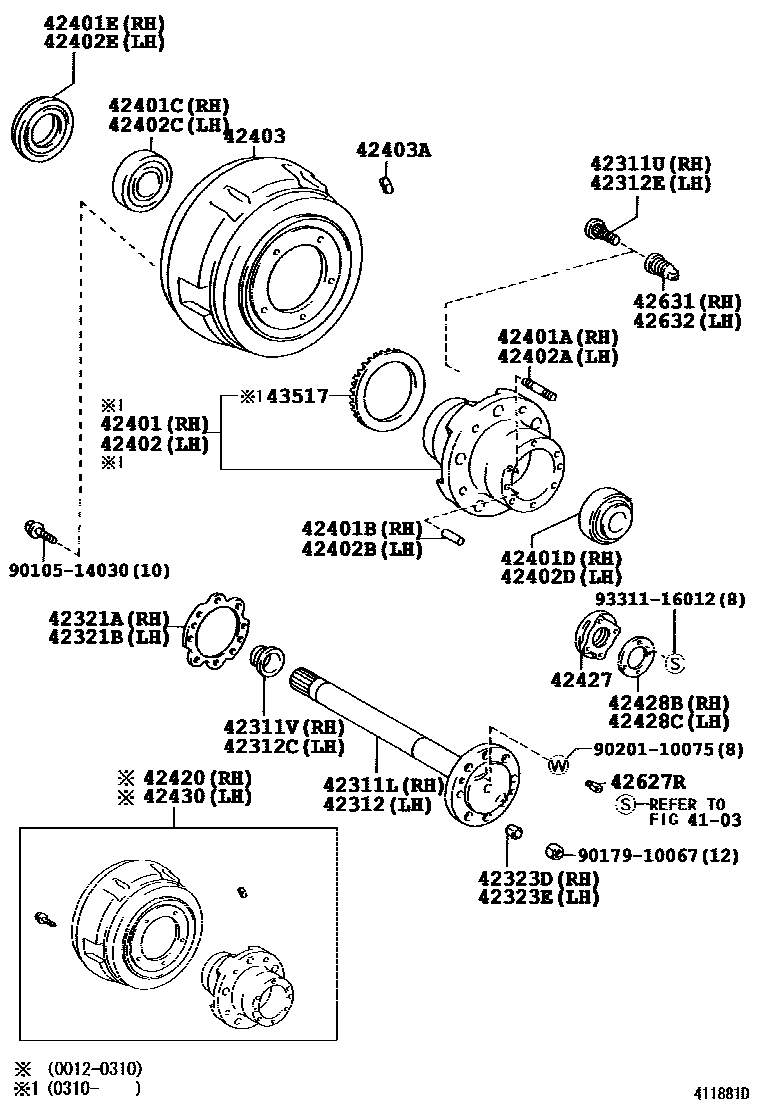

REAR AXLE SHAFT & HUB
4103DISC WHEEL & WHEEL CAP
42311LSHAFT, REAR AXLE, RH
42311UBOLT, HUB(FOR REAR AXLE RH)
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42312SHAFT, REAR AXLE, LH
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42321AGASKET, REAR AXLE SHAFT, RH
42321BGASKET, REAR AXLE SHAFT, LH
42323DWASHER, CONE (FOR REAR AXLE SHAFT RH)
42323EWASHER, CONE (FOR REAR AXLE SHAFT LH)
42401HUB, REAR AXLE, RH
42401ABOLT, STUD (FOR REAR AXLE HUB RH)
42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)
42401CBEARING (FOR REAR AXLE HUB INNER RH)
42401DBEARING (FOR REAR AXLE HUB OUTER RH)
42401ESEAL, OIL (FOR REAR AXLE HUB RH)
42402HUB, REAR AXLE, LH
42402ABOLT, STUD (FOR REAR AXLE HUB LH)
42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)
42402CBEARING (FOR REAR AXLE HUB INNER LH)
42402DBEARING (FOR REAR AXLE HUB OUTER LH)
42402ESEAL, OIL (FOR REAR AXLE HUB LH)
42403DRUM SUB-ASSY, REAR BRAKE
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
60G
40G
50G
60G
42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42427NUT, REAR AXLE BEARING LOCK
42428BPLATE, REAR AXLE LOCK NUT, RH
42428CPLATE, REAR AXLE LOCK NUT, LH
42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42627RBOLT, REAR WHEEL CAP SET
42631BOLT, DOUBLE WHEEL STOP, RH
42632BOLT, DOUBLE WHEEL STOP, LH
43517ROTOR, SKID CONTROL, REAR
9010514030
main90105-14030
9017910067
main90179-10067
9020110075
main90201-10075
9331116012
main93311-16012
38 parts on this diagram · 1 diagram in section
