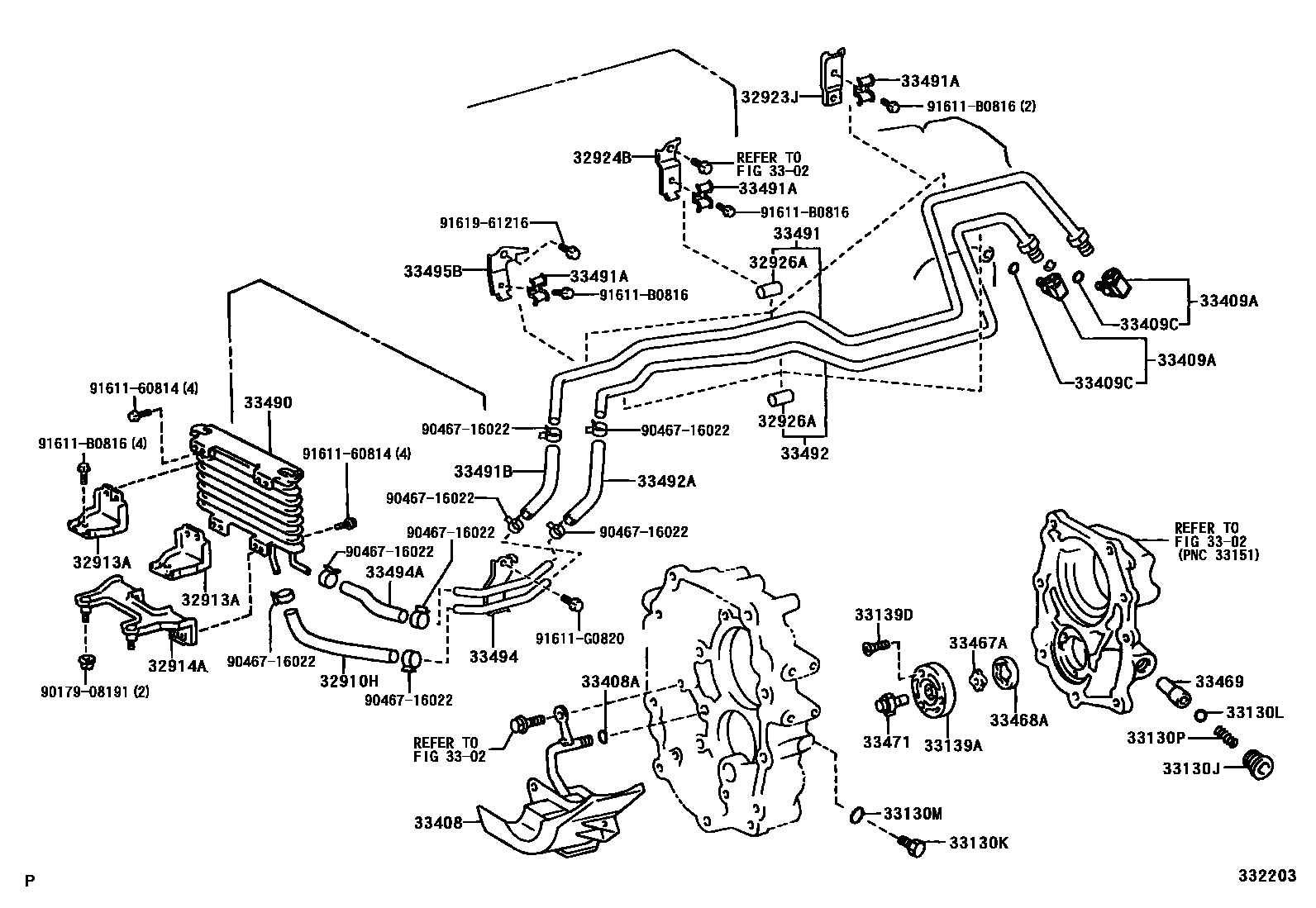

OIL PUMP, OIL COOLER & PIPE (MTM)

0001 1 0002 1 0003 1 0004 1

32910HHOSE(FOR MANUAL TRANSMISSION OIL COOLER)

main90445-17103iBB5#,XZB53200310-201108

32913ABRACKET, TRANSMISSION OIL COOLER

main32913-36050×2iBB5#200310-200701

main32913-36060×2iXZB53200701-201108

main32913-36070iXZB53201108-201301

NO.2

main32913-36080iXZB53201108-201301

NO.1

32914ASTAY, MANUAL TRANSMISSION OIL COOLER

main32914-36020iBB5#200310-200701

main32914-36060iXZB53200701-201108

32923JCLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.4

main32923-25010iBB5#200310-200701

main32923-36040iXZB53200701

NO.2

main32923-36060iXZB53200701

NO.3

main32923-65030iXZB53200701

NO.4

32924BCLAMP, OIL COOLER TUBE, NO.2

main32924-65010iBB5#200310-200701

32926ACUSHION, OIL COOLER TUBE(MTM)

main32926-60010×6iBB5#200310-200701

3302

33130JPLUG, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90341-18039iBB5#,XZB53200310

33130KPLUG, NO.2(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90341-08001iBB5#,XZB53200310

33130LBALL(FOR TRANSMISSION OIL PUMP COVER)

main90360-10003iBB5#,XZB53200310

33130MRING, O, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90301-06196iBB5#,XZB53200310

33130PSPRING, COMPRESSION(FOR TRANSMISSION OIL PUMP COVER)

main90501-08145iBB5#,XZB53200310

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-36010iBB5#,XZB53200310

33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)

main90149-60053×3iBB5#,XZB53200310

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-36010iBB5#,XZB53200310

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19009iBB5#,XZB53200310

33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90407-20004×2iBB5#,XZB53200310

33409CRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)

main90301-11006×2iBB5#,XZB53200310

33467AROTOR, OIL PUMP DRIVE (FOR MANUAL TRANSMISSION)

main33467-36010iBB5#,XZB53200310

33468AROTOR, OIL PUMP DRIVEN (FOR MANUAL TRANSMISSION)

main33468-36010iBB5#,XZB53200310

33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)

main33469-60010iBB5#,XZB53200310

33471SHAFT, MANUAL TRANSMISSION OIL PUMP DRIVE, NO.1

main33471-36010iBB5#,XZB53200310

33490COOLER ASSY, MANUAL TRANSMISSION OIL

main32910-36040iBB5#,XZB53200310-201108

main32910-36060iXZB53201108-201301

33491TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1

main33491-36040iBB53200310-200701

main33491-36050iBB54200310-200701

main33491-36060iXZB53200701-201108

NO PAINTED

main33491-36070iXZB53201108-201301

PAINTED=YELLOW

33491ACLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1

main90462-12076×3iBB5#200310-200701

33491BHOSE, NO.1 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main32941-36080×4iBB54200310-200701

main32941-36100iXZB53200701-201301

main32943-36050iBB53200310-200701

33492TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2

main33492-36040iBB53200310-200701

main33492-36050iBB54200310-200701

main33492-36060iXZB53200701

33492AHOSE, NO.2 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main32942-35070iBB53,XZB53200310

33494TUBE, MANUAL TRANSMISSION OIL COOLER, NO.3

main33494-36060iBB53200310-200701

main33494-36070iBB54200310-200701

NO.1

main33494-36080iBB54200310-200701

NO.2

main33494-36090iXZB53200701-201301

33494AHOSE, NO.3 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90445-17088iXZB53201108-201301

L=280

main90445-17101iBB5#200310-200701

33495BCLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.3

main32925-37010iBB5#200310-200701

9017908191

main90179-08191

9046716022

main90467-16022

9161160814

main91611-60814

91611B0816

main91611-B0816

91611G0820

main91611-G0820

9161961216

main91619-61216

37 parts on this diagram · 4 diagrams in section
