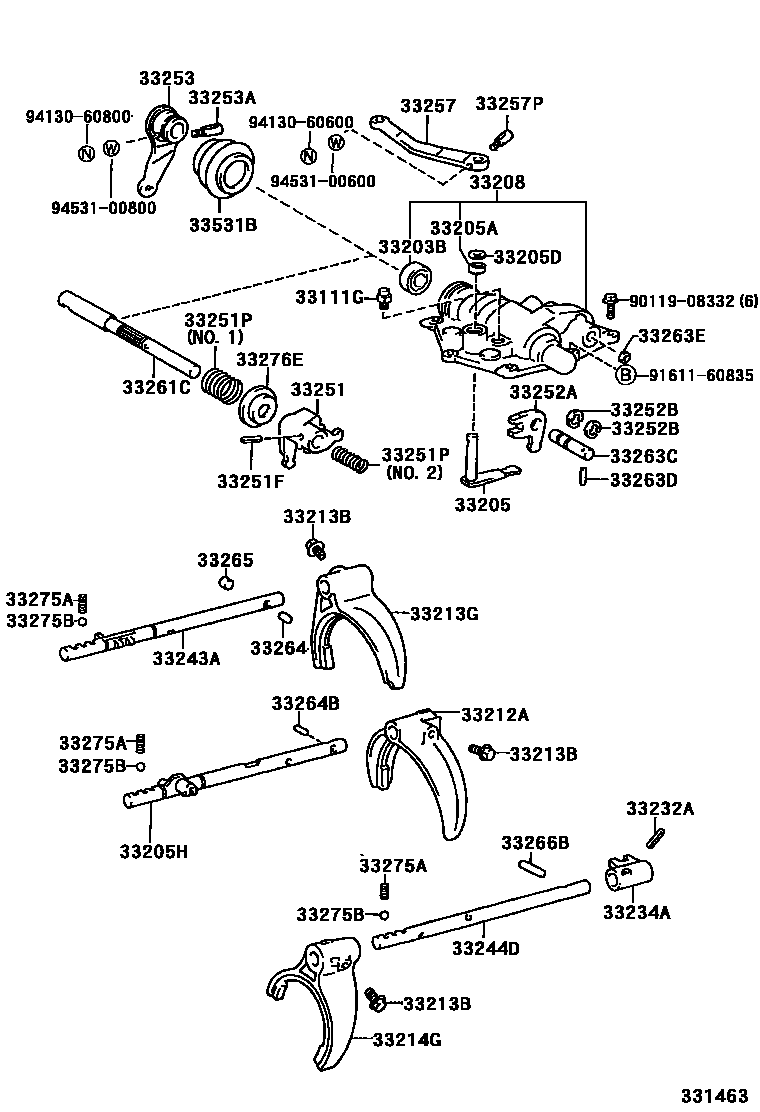

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
OD=28
33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33214GFORK, GEAR SHIFT, NO.3
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33234AHEAD, GEAR SHIFT, NO.3
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251LEVER, SHIFT & SELECT
33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)
33251PSPRING (FOR SHIFT & SELECT LEVER)
NO.2
NO.1
33252ALEVER, SHIFT, INNER NO.2
33252BRING, E (FOR SHIFT INNER LEVER)
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33261CSHAFT, SHIFT & SELECT LEVER
33263CSHAFT, SHIFT LEVER, NO.2
33263DPIN (FOR SHIFT LEVER SHAFT)
33263EPLUG (FOR SHIFT LEVER SHAFT)
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=13.4,OD=9.53
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13
33265PIN, SHIFT INTERLOCK, NO.2
L=7.5,OD=9.67
33266BPIN, SHIFT INTERLOCK, NO.3
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=28.8
33275BBALL, SHAFT DETENT
33276ESEAT, SELECT SPRING, NO.1
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9011908332
main90119-08332
9161160835
main91611-60835
9413060600
main94130-60600
9413060800
main94130-60800
9453100600
main94531-00600
9453100800
main94531-00800
42 parts on this diagram · 1 diagram in section
