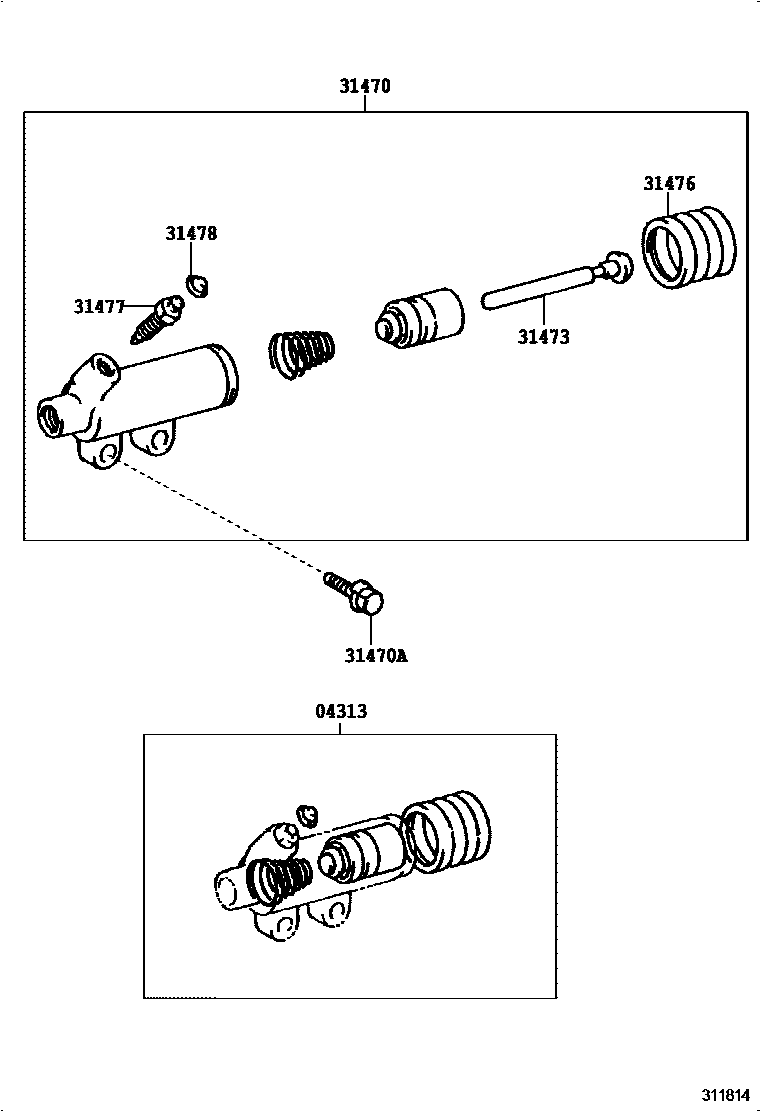

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-30130iRZB5#200012-200210

main04313-36210iXZB53200701

main04313-37030iBB5#200012-200701

main04313-53010iRZB5#,TRB53200210-200310

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36310iRZB5#200012-200210

sub31470-36311

main31470-36311iRZB5#200210-200310

main31470-36320iXZB53200701

main31470-37040iBB5#200012-200701

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iBB5#200012-200310

*8-1.25PX25-20.1

main91611-B0825iRZB5#200012-200310

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iBB5#200012-200310

main31473-32010iRZB5#200012-200210

main31473-35050iRZB5#200210-200310

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBB5#,RZB5#200012-200310

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBB5#,RZB5#200012-200310

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBB5#,RZB5#200012-200310

7 parts on this diagram · 1 diagram in section
