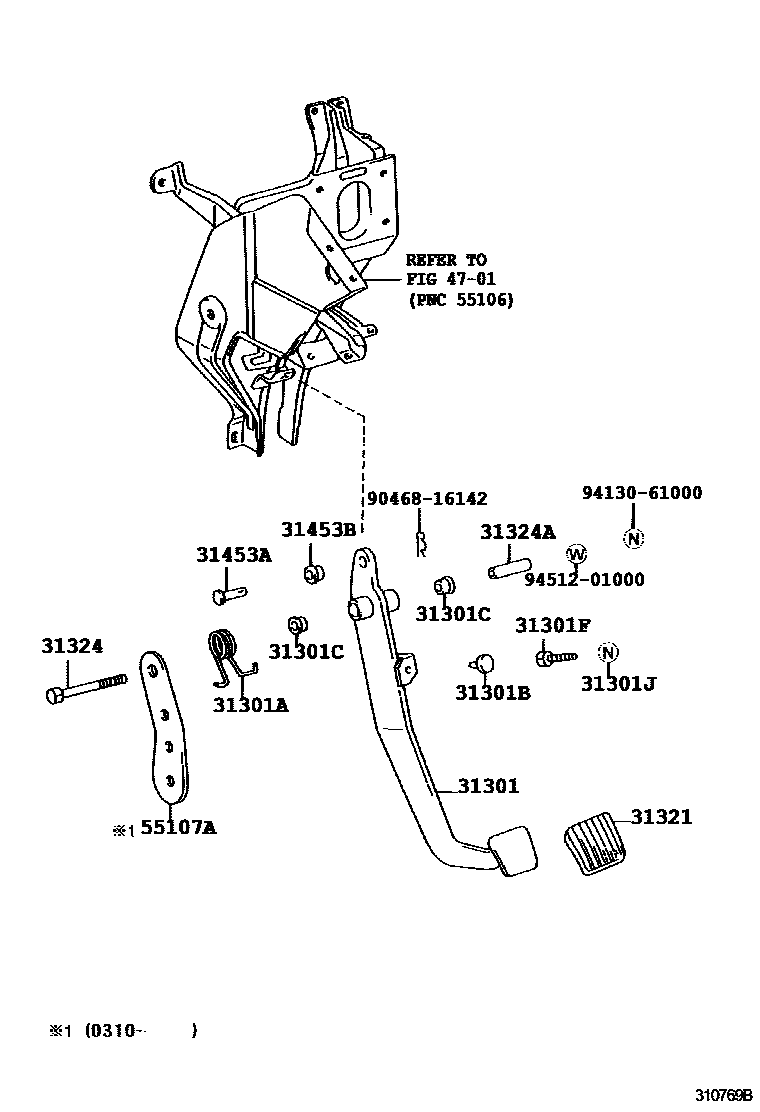

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-36230iBB5#,RZB5#200012-200310

main31310-36090iBB5#,XZB53200310

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35013iRZB5#,TRB53200310-201301

main90949-03010iBB5#,XZB53200310-201403

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iBB5#,RZB5#200012-200310

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iBB5#,RZB5#200012-200310

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iBB5#,RZB5#200012-200310

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iBB5#,RZB5#200012-200310

31321PAD, CLUTCH PEDAL

main31321-14020iBB5#,RZB5#200012-200310

31324SHAFT, CLUTCH PEDAL

main91112-61070iBB5#,RZB5#200012-200310

main91121-61070iBB5#,XZB53200310

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iBB5#,RZB5#200012-200310

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iBB5#,RZB5#200012-200310

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iBB5#,RZB5#200012-200310

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55105-36010iBB5#,XZB53200310

main55136-36010iRZB5#,TRB53200310

9046816142

main90468-16142

9413061000

main94130-61000

9451201000

main94512-01000

16 parts on this diagram · 6 diagrams in section
