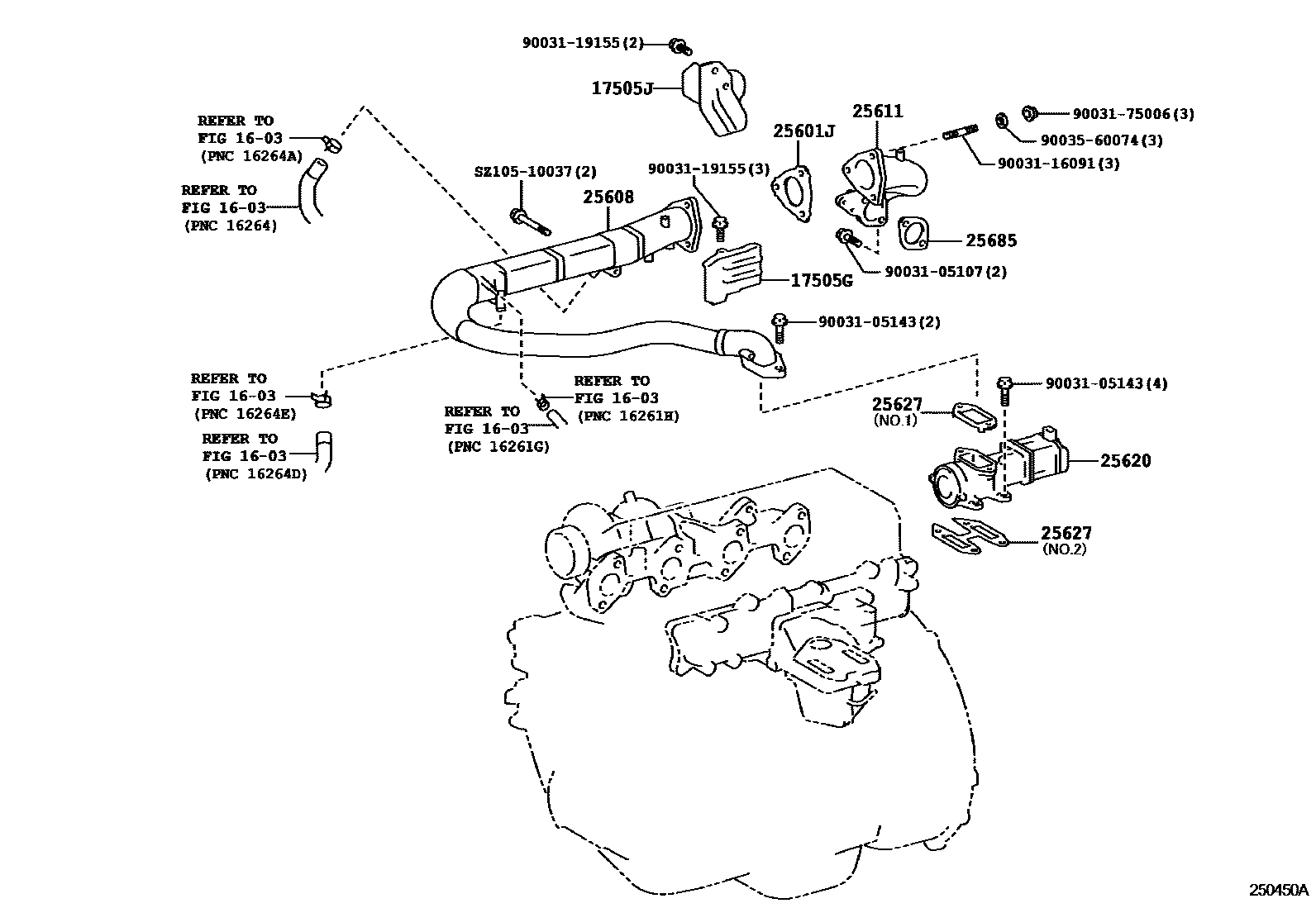

EXHAUST GAS RECIRCULATION SYSTEM

1603

17505GINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1

main17505-E0710iN04C..XZB53201108

17505JINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.3

main17505-E0730iN04C..XZB53201108

25601JGASKET(FOR EGR PIPE, NO.1)

main17451-E0110iN04C..XZB53201108

25608COOLER SUB-ASSY, EGR

main25608-E0201iN04C..XZB53201108

25611CONNECTOR, EGR PIPE

main25611-E0370iN04C..XZB53201108

sub25611-E0371

25620VALVE ASSY, EGR

main25620-E0261iN04C..XZB53201108-201112

sub25620-E0262

main25620-E0262iN04C..XZB53201112

sub25620-E0263

25627GASKET, EGR VALVE

main25627-E0130iN04C..XZB53201108

NO.1

main25627-E0140iN04C..XZB53201108

NO.2

25685GASKET, EGR COOLER, NO.1

mainS171042020iN04C..XZB53201108

9003105107

main90031-05107

9003105143

main90031-05143

9003116091

main90031-16091

9003119155

main90031-19155

9003175006

main90031-75006

9003560074

main90035-60074

SZ10510037

mainSZ105-10037

16 parts on this diagram · 1 diagram in section
