ALTERNATOR

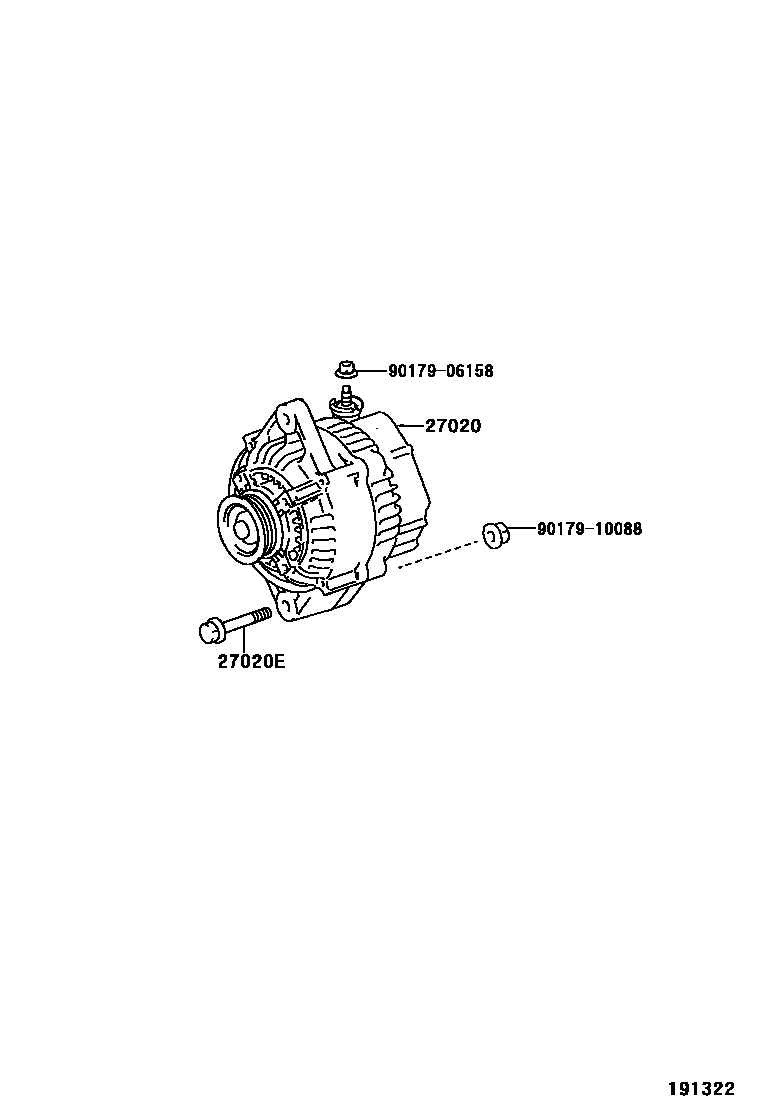

Parts diagram

27020ALTERNATOR ASSY

main27060-0C050i201010

12V 80A

main27060-58380i200012-200310

24V 60A

main27060-58430i200310-200701

24V 85A

main27060-75240i200310-200701

12V 80A

main27060-75390i200701-200904

12V 80A

main27060-78150i200701-201010

12V 130A

main27060-78200i201010

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90031-05093i200701

main90101-12173i200310-200701

main90105-10221i200012-200310

main90148-10001i200012-200310

main91552-81040i200701

NO.2

main91552-81085i200701

NO.1

9017906158

main90179-06158

9017910088

main90179-10088

4 parts on this diagram · 6 diagrams in section
