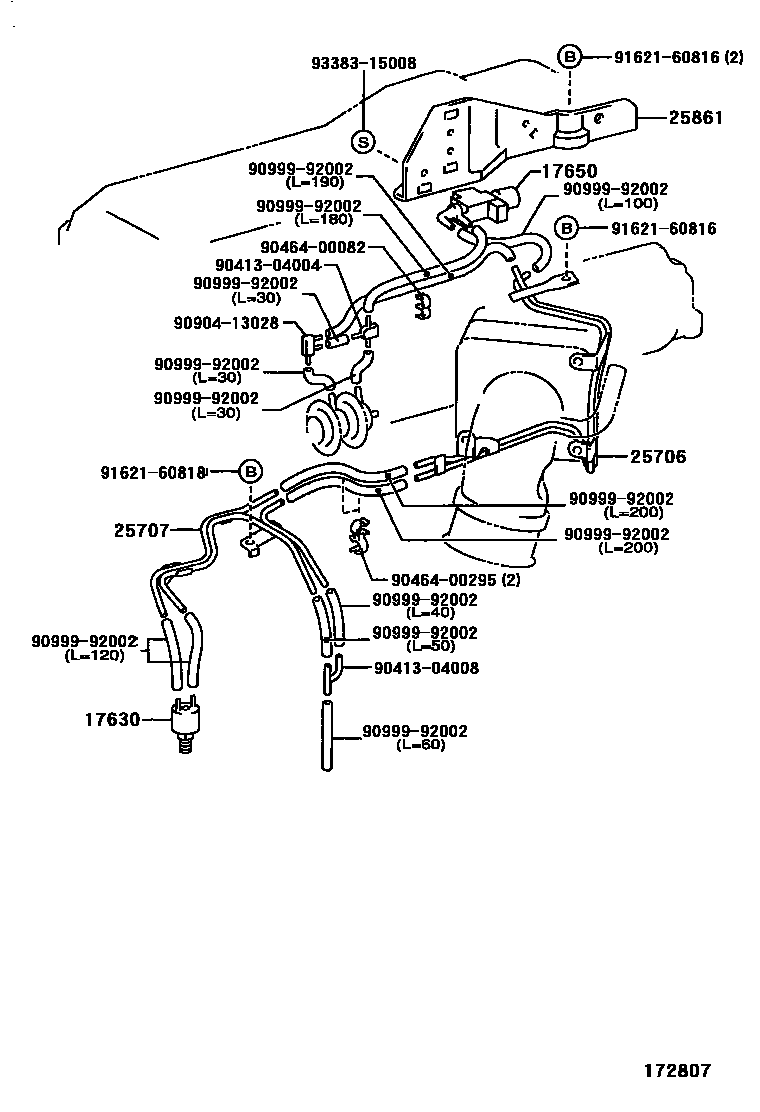

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17630VALVE ASSY, AIR CONTROL

main17630-15010i15BF..BB5#200012-200310

17650VALVE ASSY, VACUUM SWITCHING

main90910-12164i15BF..BB5#200012-200310

main90910-12167i15BFT..BB5#200310-200701

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-58080i15BFT..BB5#200310-200701

main25706-58120i15BF..BB5#200012-200310

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-58070i15BF..BB5#200012-200310

25861BRACKET, VACUUM SWITCHING VALVE

main25861-58020i15BF..BB5#200012-200310

9041304004

main90413-04004

9041304008

main90413-04008

9046400082

main90464-00082

9046400295

main90464-00295

9090413028

main90904-13028

9099992002

main90999-92002

9162160816

main91621-60816

9162160818

main91621-60818

9338315008

main93383-15008

14 parts on this diagram · 6 diagrams in section
