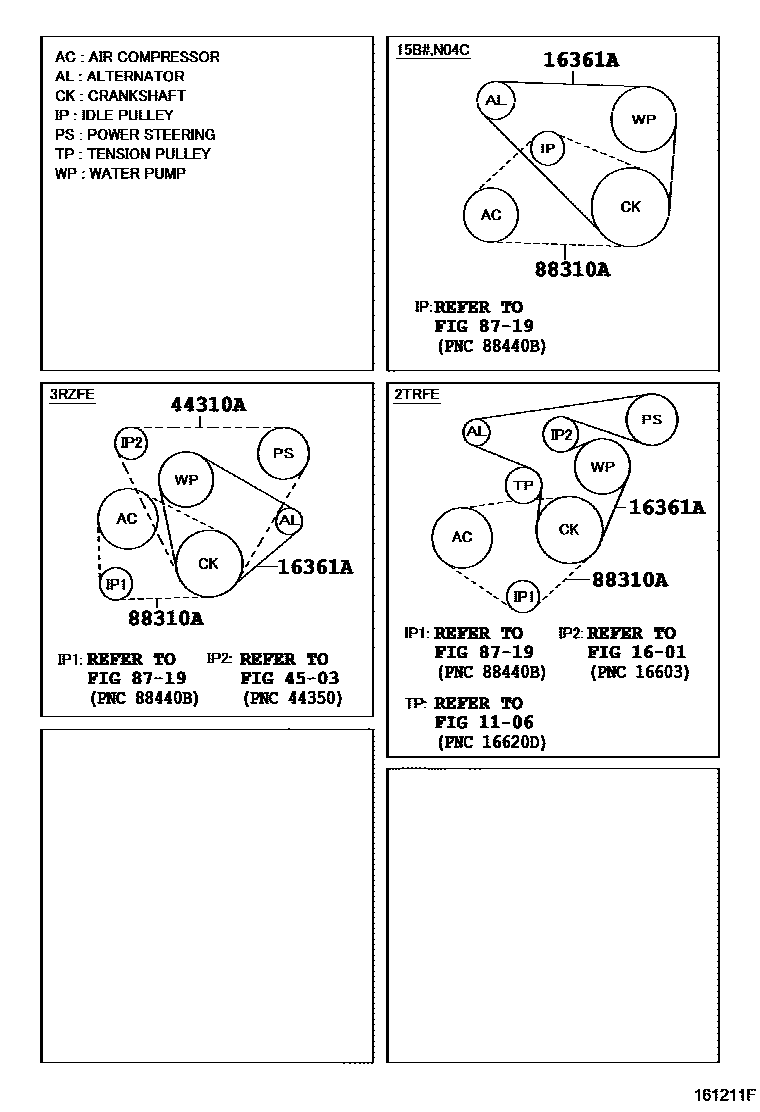

V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90038-39010iN04C..XZB53200701-200907

main90038-39016iN04C..XZB53200907

main90916-02215i15BF..BB5#200012-200310

L=1220X2

main90916-02336i3RZFE..RZB5#200310-200701

main90916-02375i15BFT..BB5#200310-200701

main90916-02639i2TRFE..TRB53200701-201111

main90916-02709i2TRFE..TRB53201112

44310ABELT, V(FOR VANE PUMP)

main99364-81100iRZB5#200012-200310

L=1100

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02227iBB5#200012-200310

L=1120

main90916-02444iXZB53200701

L=1160X2

main99365-20980iRZB5#200012-200310

L=980

main99365-H0990iTRB53200701

L=990

7 parts on this diagram · 1 diagram in section
