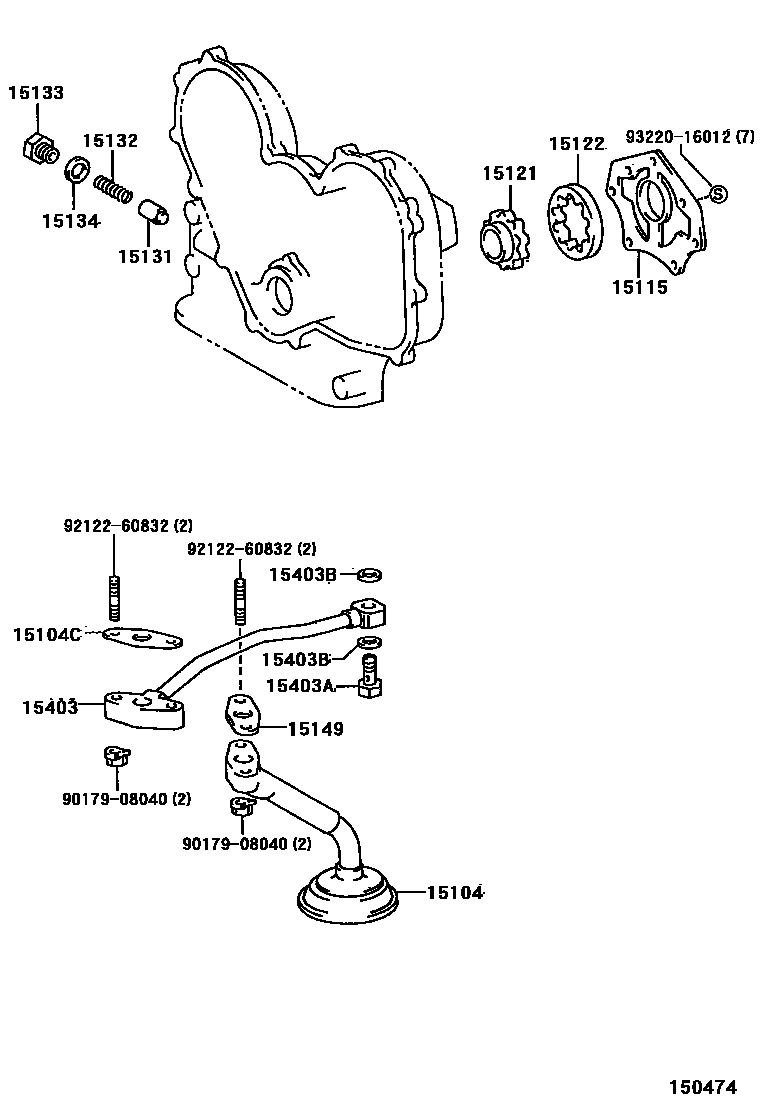

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15104STRAINER SUB-ASSY, OIL

main15104-58061i15BF..BB5#200012-200701

main15104-75030i3RZFE..RZB5#200012-200701

main15104-75140i2TRFE..TRB53200701

main15401-78050iN04C..XZB53200701

subS1510-41940

15104CGASKET(FOR OIL STRAINER)

main15149-58010i15BF..BB5#200012-200701

15115COVER, OIL PUMP

main15115-56090i15BF..BB5#200012-200701

main15115-75020i3RZFE..RZB5#200012-200701

15121GEAR, OIL PUMP DRIVE

main15121-56090i15BF..BB5#200012-200701

15122GEAR, OIL PUMP DRIVEN

main15122-56090i15BF..BB5#200012-200701

main15122-E0110iN04C..XZB53201108

15131VALVE, OIL PUMP RELIEF

main15131-24010i3RZFE..RZB5#200012-200701

main15131-46040i2TRFE..TRB53200701-201301

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080i15BF..BB5#200012-200701

main15132-75020i3RZFE..RZB5#200012-200701

NO.1

main15132-75021i3RZFE..RZB5#200012-200701

NO.2

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i15BF..BB5#200012-200701

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i15BF..BB5#200012-200701

main15134-67020i2TRFE..TRB53200701-201301

15149GASKET, OIL STRAINER FLANGE

main15149-58010i15BF..BB5#200012-200701

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050i15BF..BB5#200012-200701

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009i15BF..BB5#200012-200701

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018i15BF..BB5#200012-200701

9017908040

main90179-08040

9212260832

main92122-60832

9322016012

main93220-16012

16 parts on this diagram · 4 diagrams in section
