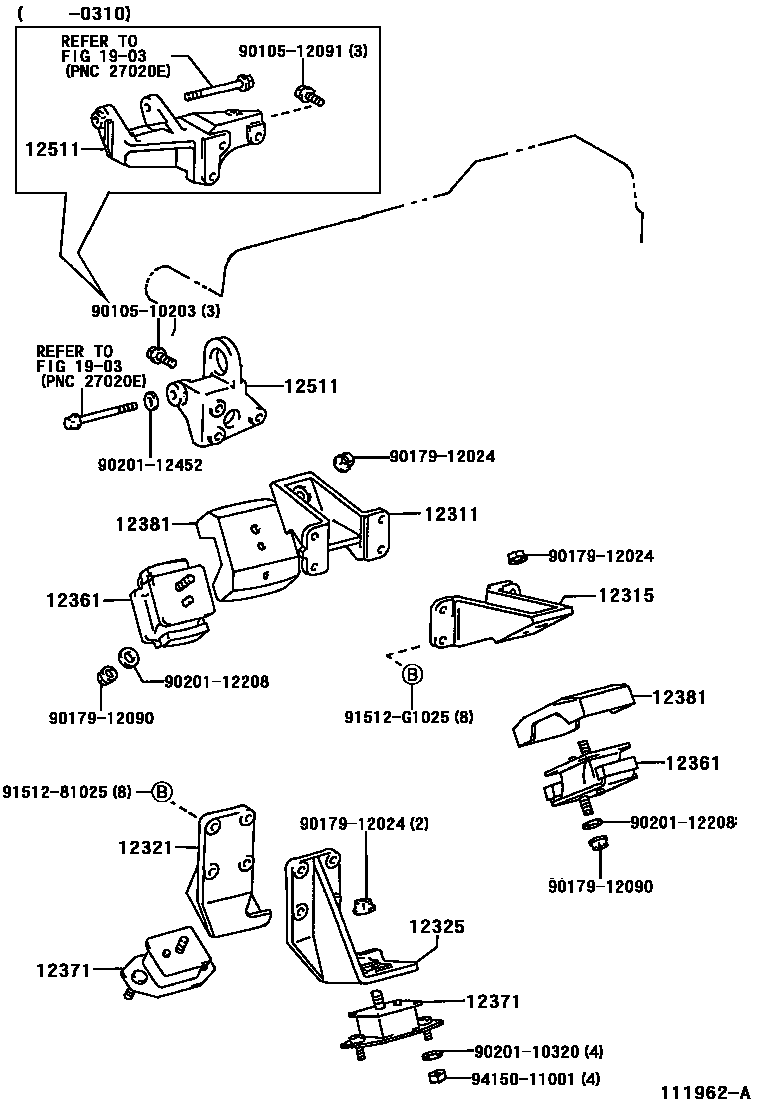

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-58080i15BFT..BB5#200012-200701

main12311-75030i3RZFE..RZB5#..20S,23S,24S200012-200701

main12311-78102iN04C..XZB53200701-201003

main12311-78120iN04C..XZB53201003

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-58040i15BF..BB5#200012-200701

main12315-75030i3RZFE..RZB54..30S200012-200701

main12315-78082iN04C..XZB53200701-201003

main12315-78100iN04C..XZB53201003

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-58260i15BFT..BB5#200012-201403

main12321-75020i3RZFE..RZB5#200012-201301

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-58220i15BF..BB5#200012-201403

main12325-75020i3RZFE..RZB5#200012-201301

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0C040i2TRFE..TRB53201011

main12361-58160i15BFT..BB5#200012-200701

main12361-75060i3RZFE..RZB5#200012-201011

main12361-78140iN04C..XZB53200701-201106

main12361-78141iN04C..XZB53201107-201108

main12361-78142iN04C..XZB53201109

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-58070i15BF..BB5#200012-201403

12381STABILIZER, ENGINE MOUNTING

main12381-0C060i2TRFE..TRB53201011

main12381-58020i15BFT..BB5#200012-200701

main12381-75060i3RZFE..RZB5#200012-201011

main12381-78070iN04C..XZB53200701-201001

main12381-78071iN04C..XZB53201002

12511BRACKET, ALTERNATOR, NO.1

main12501-58050i15BF..BB5#200012-200310

main12511-58050i15BFT..BB5#200310-200701

main12511-75041i3RZFE..RZB54..30S200012-200701

1903ALTERNATOR

→ Go to FIG 19-03

9010510203

main90105-10203

9010512091

main90105-12091

9017912024

main90179-12024

9017912090

main90179-12090

9020110320

main90201-10320

9020112208

main90201-12208

9020112452

main90201-12452

9151281025

main91512-81025

91512G1025

main91512-G1025

9415011001

main94150-11001

19 parts on this diagram · 4 diagrams in section
