CYLINDER HEAD

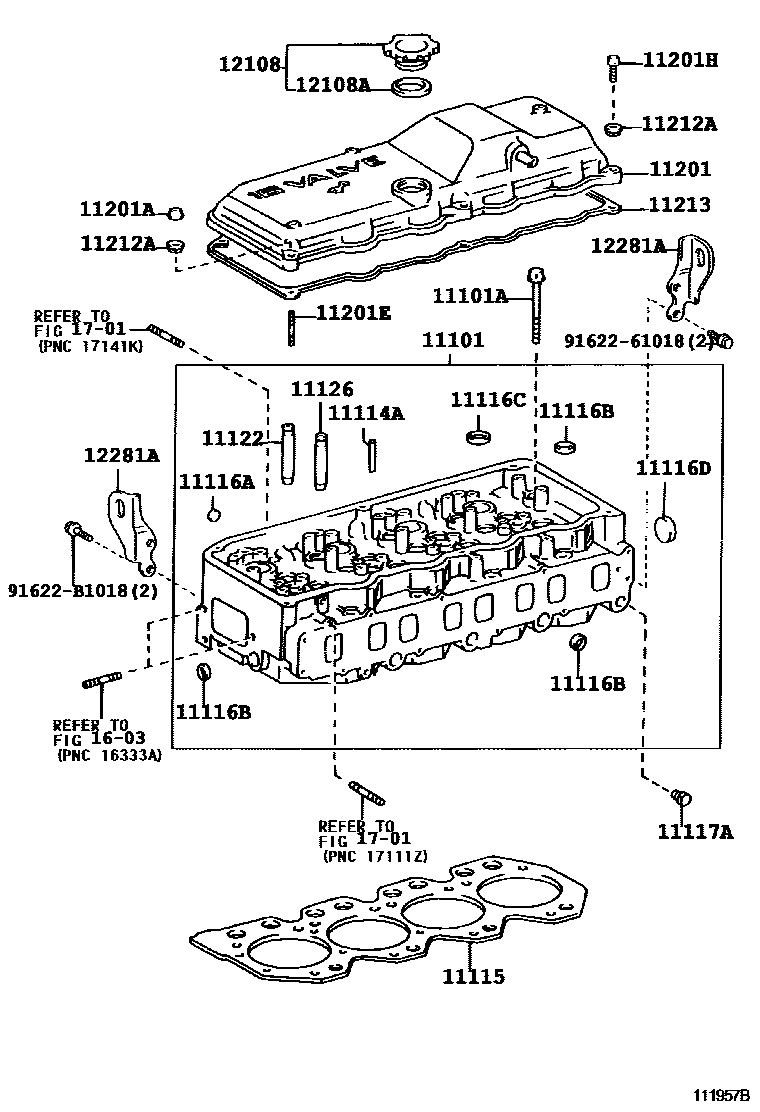

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-58081i200012-200310
main11101-58091i200310-200701
main11101-75200i200701-201301
sub11101-75201
main11101-78170i200701-200811
sub11101-78171
sub17107-78162
sub17505-78162
main11101-78171i200811-201009
sub11101-78210
main11101-78172i201009-201106
sub11101-78210
main11101-78210i201106
sub11101-78221
subSN411-02216
main11101-79295i200012-200701
11101ABOLT(FOR CYLINDER HEAD SET)
main90031-05144i200701
NO.1
main90910-02084i200012-200701
main90910-02091i200012-201301
sub90910-02187
main90910-02155i200701
NO.2
11114APIN, STRAIGHT
main90250-09007i200012-200701
L=53.5,OD=9
11115GASKET, CYLINDER HEAD
main11115-58131i200012-200701
T=1.20
main11115-58141i200012-200701
T=1.30
main11115-58151i200012-200701
T=1.40
main11115-75031i200012-200701
main11115-75050i200701-200710
sub11115-75051
main11115-75051i200710
sub11115-75052
main11115-78051i200701-201108
sub11115-78080
main11115-E0030i201108
sub11115-E0031
11116APLUG, TIGHT, NO.1
main90331-14006i200012-200310
main96411-62800i200012-200701
11116BPLUG, TIGHT, NO.2
main90033-31028i200701-201106
subSN411-01412
main96411-62500i200012-200310
mainSN41101412i201106
11116CPLUG, TIGHT, NO.3
main90033-31020i200701-201106
main96411-63000i200012-200310
mainSN41101712i201106
11116DPLUG, TIGHT, NO.4
main90033-31026i200701-201106
main96411-64000i200012-200310
mainSN41105016i201106
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90345-54005i200012-200310
11122BUSH, INTAKE VALVE GUIDE
main11122-16010i200012-200701
STD
sub11122-16020
main11122-58020i200012-200701
STD
main11122-75020i200701
STD
main11122-89101i200701-201106
STD
subS1112-21220
main11123-16010i200012-200404
O/S 0.05
main11123-16020i200404-200701
O/S 0.05
main11123-75020i200701
O/S 0.05
mainS111221220i201106
STD
11126BUSH, EXHAUST VALVE GUIDE
main11122-58020i200012-200701
STD
main11122-75020i200701
STD
main11122-89101i200701-201106
STD
subS1112-21220
main11123-75020i200701
O/S 0.05
main11126-50050i200012-200701
STD
main11127-50050i200012-200701
O/S 0.05
mainS111221220i201106
STD
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-58040i200012-200509
sub11201-58041
main11201-58041i200509-200701
main11201-75040i200012-200701
main11201-75070i200701-200909
sub11201-75071
main11201-75071i200909-201108
sub11201-75072
main11201-75072i201108-201301
sub11201-75073
main11201-78030i200701
sub11201-E0051
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
main90179-08040i200012-200701
11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)
main92112-60835i200012-200402
main92112-80835i200402-200701
11201HBOLT(FOR CYLINDER HEAD COVER)
main90031-05123i200701
NO.1
main90031-05133i200701
NO.2
main91511-60835i200012-200310
sub91511-B0835
main91511-B0835i200310-200701
sub90105-08200
main91511-J0625i200310-200701
main91513-J0628i200012-200310
sub91511-J0625
11212ACUSHION, CYLINDER HEAD COVER
main11228-56010i200012-200701
11213GASKET, CYLINDER HEAD COVER
main11213-58021i200012-200701
main11213-75030i200012-200701
main11213-75040i200701-200808
sub11213-75041
main11213-75041i200808
main11213-78030i200701-201108
sub11213-78070
main11213-78060i201108
12108CAP SUB-ASSY, OIL FILLER
main12108-78010i200701-200901
sub12180-78010
main12180-55010i200012-200701
main12180-65011i200012-200701
main12180-78010i200901-201108
sub12180-E0010
main12180-E0010i201108
12108AGASKET(FOR OIL FILLER CAP)
main90430-37004i200701
main90430-37140i200012-200701
12281AHANGER, ENGINE, NO.1
main12081-78040i200701-200707
sub12081-78041
main12081-78041i200707-201108
sub12081-E0021
main12081-E0080i201108
main12281-58010i200012-200701
1603
1701
9162261018
main91622-61018
91622B1018
main91622-B1018

24 parts on this diagram · 5 diagrams in section
