SHORT BLOCK ASSEMBLY

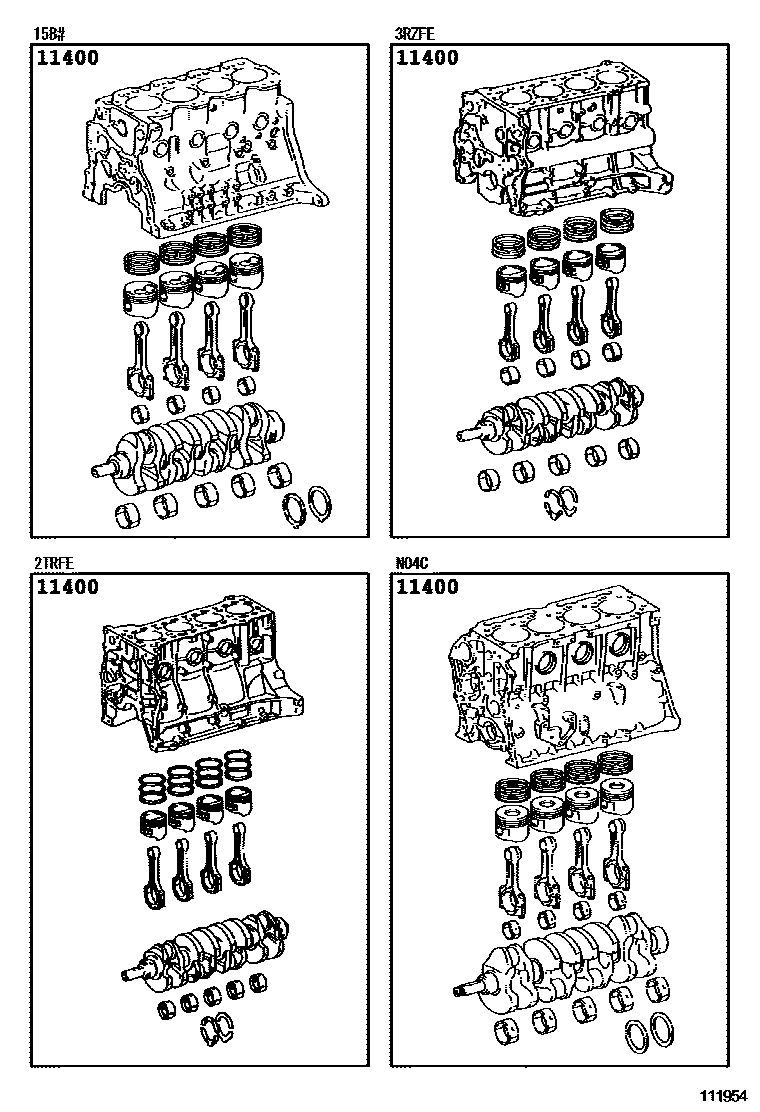

Parts diagram

11400BLOCK ASSY, SHORT

main11400-58130i200012-200310

main11400-58200i200310-200701

main11400-75120i200012-200310

main11400-75510i200701-200709

main11400-75511i200709-200712

main11400-75550i200712-201301

main11400-78420i200701-201008

main11400-78540i201008-201108

main11400-78770i201108-201403

1 parts on this diagram · 1 diagram in section
