NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

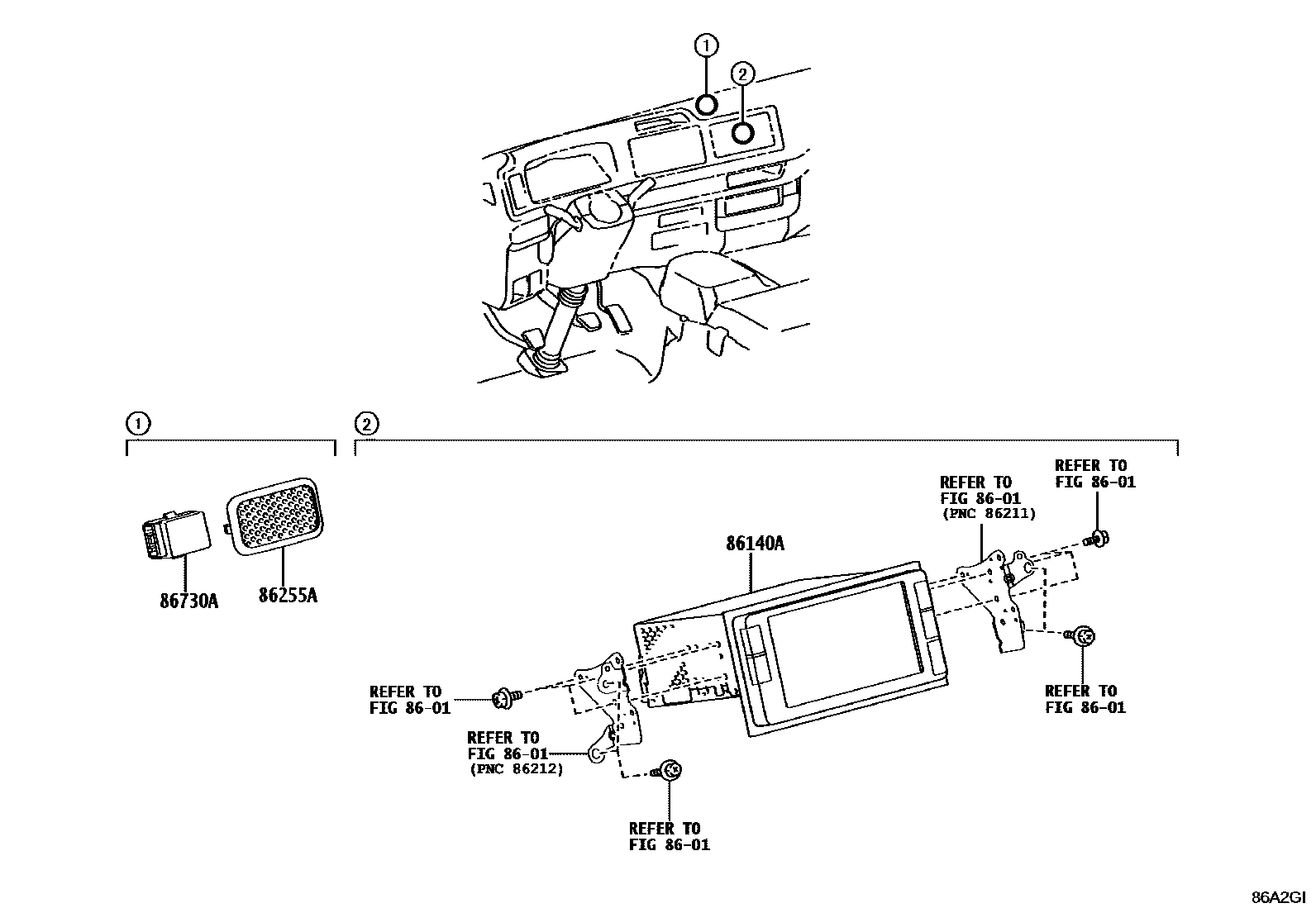

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-V4010i202401-202412

DENSO TEN,SAUDIARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER

main86140-V4020i202401-202412

DENSO TEN,BAHRAIN SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER; DENSO TEN,KUWAIT SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER; DENSO TEN,OMAN SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER; DENSO TEN,UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER

86255ACASE, MICROPHONE, NO.1

main86255-V4010i202501

86730AMICROPHONE ASSY, TELEPHONE

main86730-48110i202401-202412

AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER

4 parts on this diagram · 1 diagram in section
