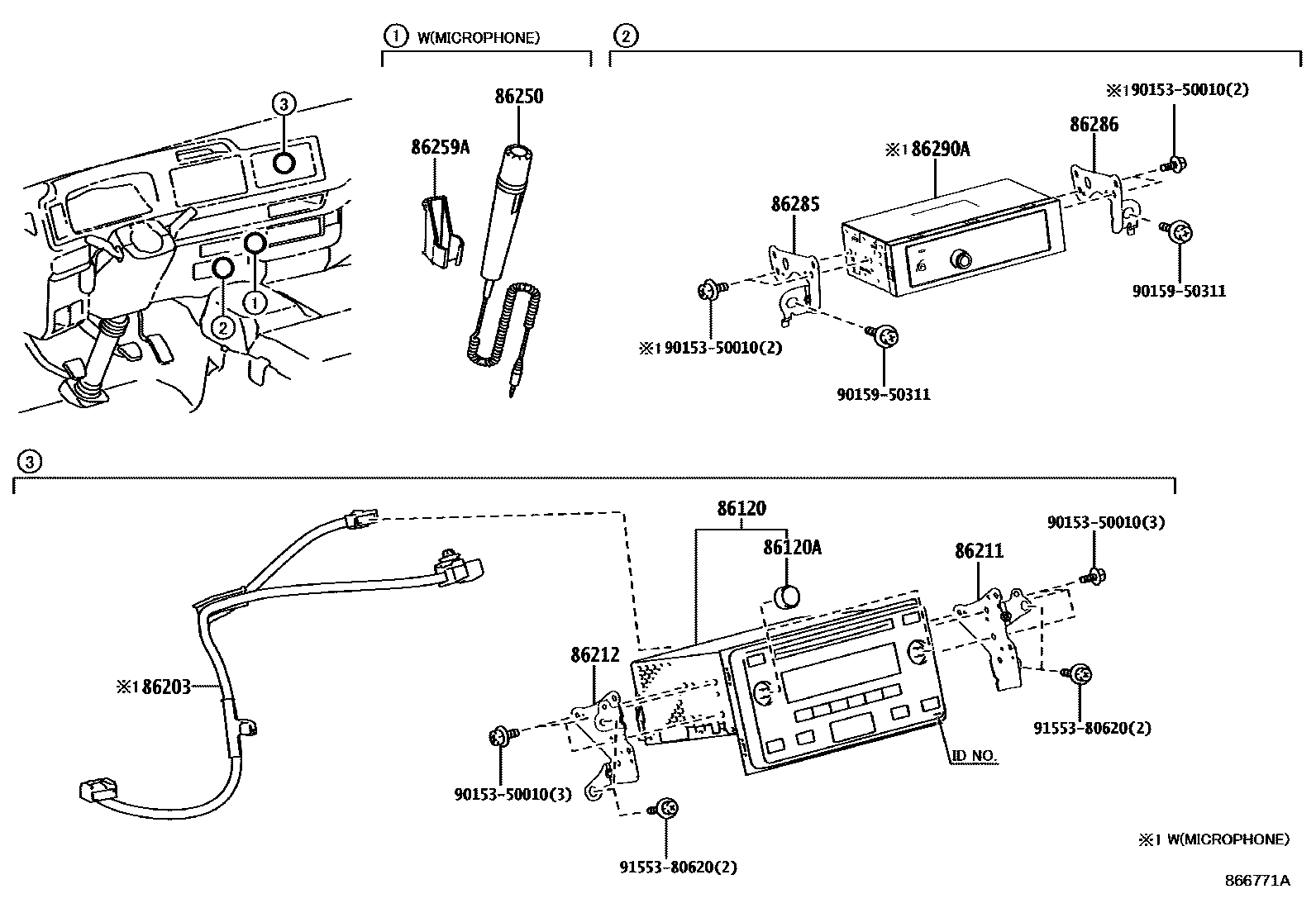

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
FUJITSU TEN,ID100648; FUJITSU TEN,ID100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER
main86120-26232iXZB70..EX;XZB70..TAIW;XZB70..RHD..29S; XZB70..LHD..(GCC,GEN);BB60,HZB70,TRB60,70,XZB60..19S,20S,23S,24S,25S,26S,30S201711-201811
FUJITSU TEN,ID100648; FUJITSU TEN,ID100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER
main86120-26233iHZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN); XZB70..RHD..29S; XZB70..TAIW;XZB70,80..EX;XZB70..RHD..29S201812-202005
DENSO TEN,ID=100648; DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER; DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS
main86120-26234iHZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN); XZB70..RHD..29S; XZB70..TAIW;XZB70,80..EX;XZB70..RHD..29S202006-202009
DENSO TEN,ID=100648; DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER; DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS
DENSO TEN,ID=100648
main86120-26236iHZB60,70..23S,25S,26S,30S;TRB60,70..19S,20S,23S,24S,30S;XZB70..LHD..(19S,23S,29S)..WC; XZB70..5F..EX;XZB70,80..RHD..(01S,29S); XZB70..RHD..29S202106-202201
DENSO TEN,ID=100648; DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER; DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS
DENSO TEN,ID100650
DENSO TEN
main86120-V3080iGDB70..TAIW;XZB70..5F..EX;XZB70..RHD..29S;GDB70,XZB80..EX; HZB70..30S..WOC;HZB70..(23S,25S,30S)..WC;GDB60,HZB60,TRB70..BTN,GEN;GDB70,XZB70..LHD..(19S,22S,23S,29S)..WC; XZB70..RHD..29S202309-202404
FUJITSU TEN; FUJITSU TEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER; FUJITSU TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS
DENSO TEN; DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER
FUJITSU TEN,ID100649,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
FUJITSU TEN,ID100649,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
DENSO TEN,ID=100649,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
DENSO TEN,ID=100649,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
main86120-V3031iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..GEN;XZB70..LHD..(23S,29S)..WC..GEN202309-202405
DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
86120AKNOB, RADIO RECEIVER SWITCH
86203WIRE, RADIO
main86203-36450iHZB70,TRB60..19S,26S;XZB70..(23S,25S,30S)..STD..GEN; TRB60,XZB70..(23S,25S,26S,30S)..STD..GEN; XZB70..TAIW201701
AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH; AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)&MICROPHONE-WITH
main86203-V4010iGDB70,TRB70..23S..(6F,6FC)..STD..GCC; TRB70..6F..DX;GDB70,TRB60,70..(19S,20S,22S)..(6F,6FC)..GCC202401
AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER&MICROPHONE-WITH; BAHRAIN SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER&MICROPHONE-WITH; KUWAIT SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER&MICROPHONE-WITH; SAUDIARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER&MICROPHONE-WITH; UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 4SPEAKER&MICROPHONE-WITH
86211BRACKET, RADIO, NO.1
main86211-36060iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201-202512
86212BRACKET, RADIO, NO.2
86250MICROPHONE ASSY, AMPLIFIER
86259AHANGER, MICROPHONE
86285BRACKET, AMPLIFIER, NO.1
86286BRACKET, AMPLIFIER, NO.2
86290AAMPLIFIER ASSY, MICROPHONE
main86290-36100iBB60,HZB70,TRB60,70,XZB70..STD..(GCC,GEN); BB60,HZB70,TRB60,70,XZB70..STD..GEN; XZB70..02S,20S201701-201710
AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH; AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)&MICROPHONE-WITH
9015350010
main90153-50010
9015950311
main90159-50311
9155380620
main91553-80620
13 parts on this diagram · 2 diagrams in section
