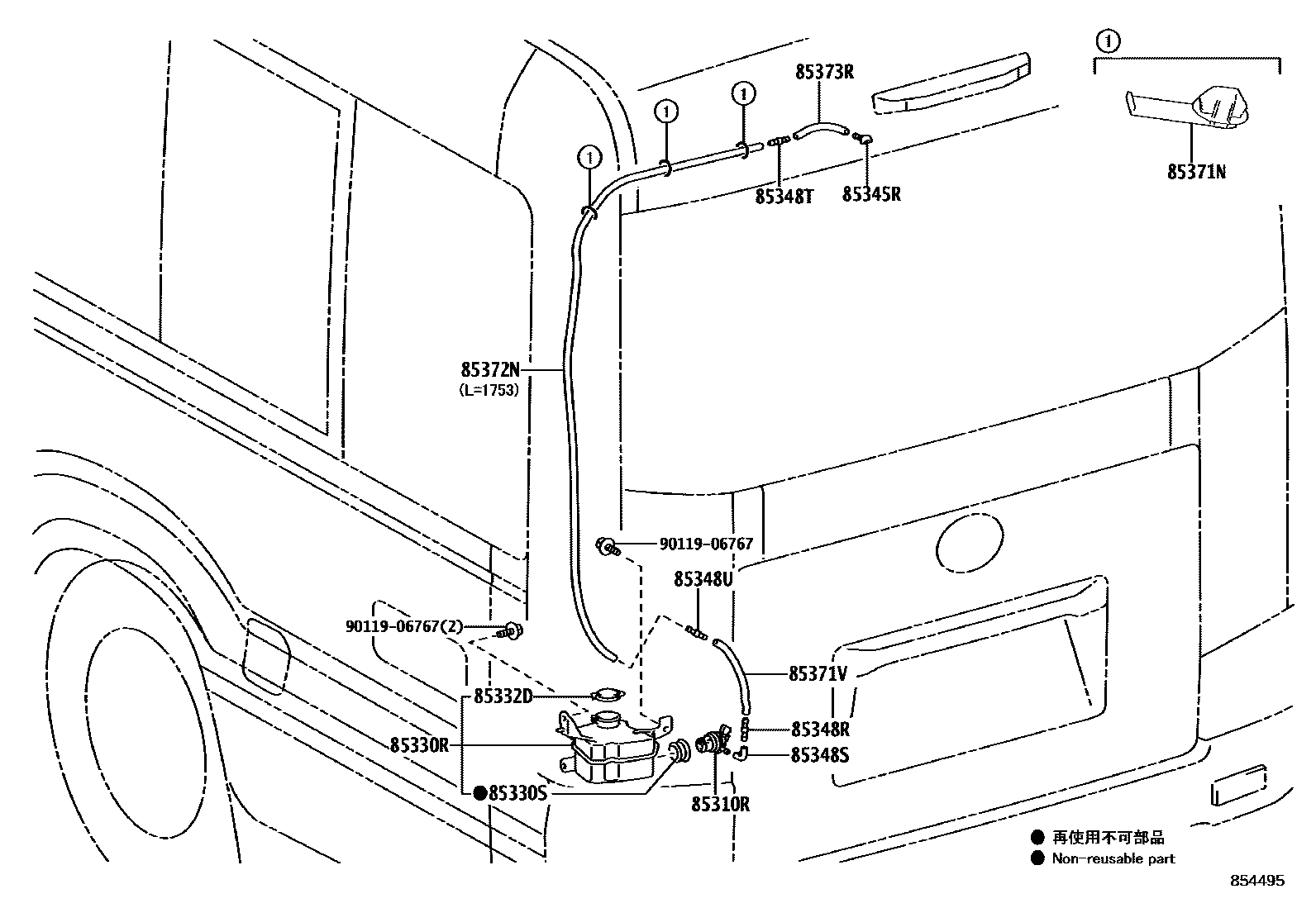

REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330RJAR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85332DCAP, REAR WASHER TANK
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85371NCLAMP, REAR WASHER HOSE
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=1450(*H,L=210)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800,*318:REFER ILLUST.
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=160)
9011906767
main90119-06767
14 parts on this diagram · 1 diagram in section
