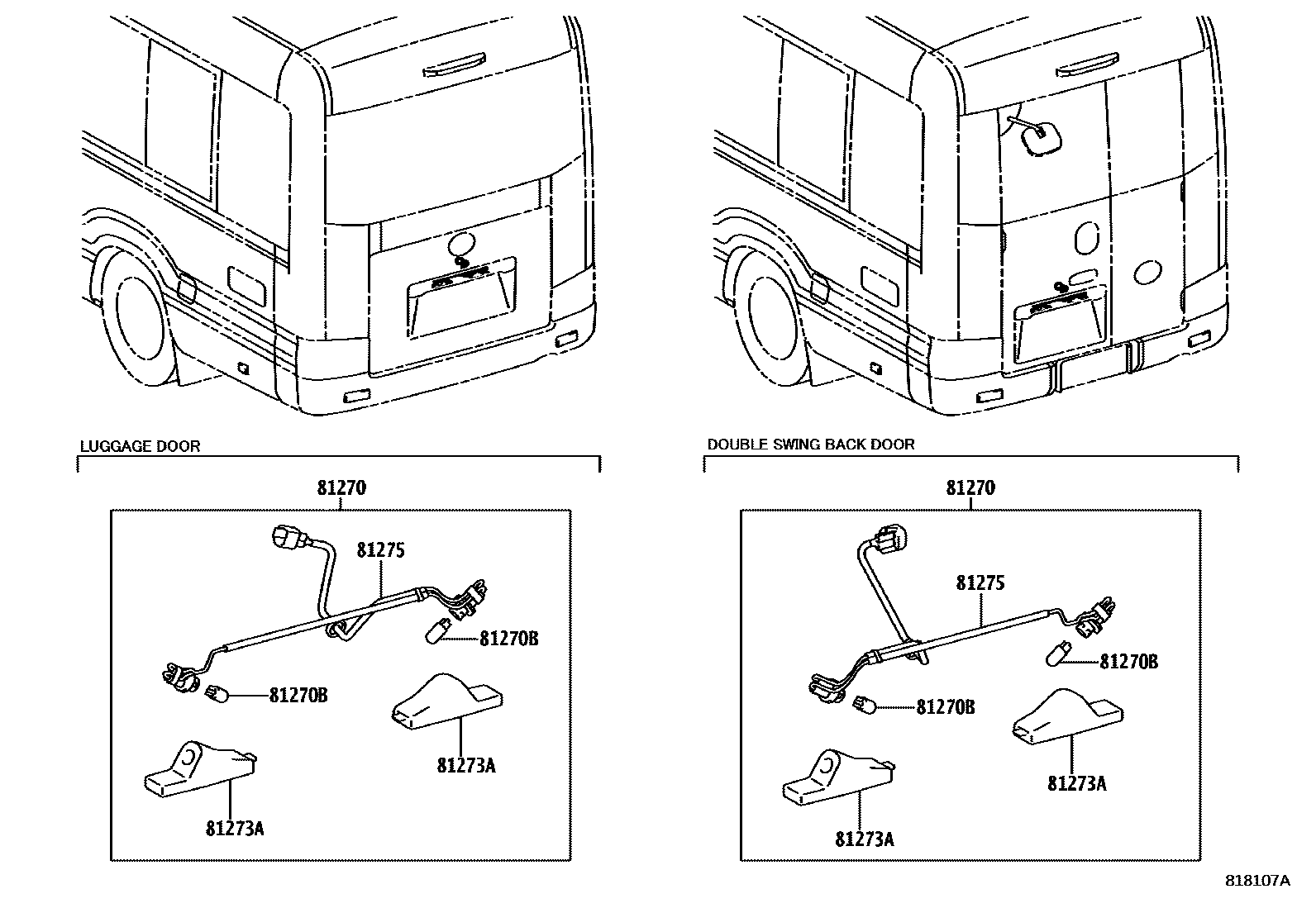

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-36260iTRB60,XZB70..(23S,26S,30S)..STD..GEN201701

main81270-36270iBZB60,XZB60201701-201712

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iBZB60,XZB60201701-201712

12V 5W

81273ABODY, LICENSE PLATE LAMP

main81273-48010×2iBZB60,XZB60201701-201712

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-36260iTRB60,XZB70..(23S,26S,30S)..STD..GEN201701

main81275-36270iHZB70..19S;XZB70..6FC;XZB70..02S,25S201701

4 parts on this diagram · 1 diagram in section
