SEAT & SEAT TRACK
55560DLOCK ASSY, SEAT UNDER TRAY
BLACK,TRIM1#
66990HOLDER ASSY, CUP
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP),BLACK,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP-PRETENSIONER SEAT BELT),BLACK,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&FRONT SEAT-WITH(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP),BLACK,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&FRONT SEAT-WITH(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP-PRETENSIONER SEAT BELT),BLACK,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&FRONT SEAT-WITH(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1#
66990RHOLDER ASSY, CUP, NO.1
main71398-36050-C0×2iHZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC; HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BLACK,TRIM1#; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER ONLY),BLACK,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO),BLACK,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BLACK,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
GRAY,TRIM1#
main71072-36130-E0supersedes 71072-36012-B9iHZB70,TRB60..20S,23S,25S;TRB70,XZB70..LHD..(19S,23S)..WC; HZB70,XZB70..LHD..(29S,30S)..WC; HZB70..LHD..30S; XZB70..LHD..29S;HZB60,70,TRB70..LHD..(24S,26S,30S)201908-202201
BROWN,TRIM1#; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; REAR SEAT-HIGH BACK TYPE,NO.8 SEAT=FOLDING SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#
main71072-36160-B0iHZB70,XZB70..LHD..(29S,30S)..WC; HZB70..DX..GCC;HZB70..(23S,25S)..STD..WC;TRB60,70,XZB70..(20S,23S)..GCC; HZB70..LHD..30S; HZB70..LHD..30S;XZB70..LHD..29S201807-201908
MEDIUM CHARCOAL,TRIM10; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT,MEDIUM CHARCOAL,TRIM10; REAR SEAT-HIGH BACK TYPE,NO.8 SEAT=FOLDING SEAT,MEDIUM CHARCOAL,TRIM10; REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S,MEDIUM CHARCOAL,TRIM10
main71072-36160-E0supersedes 71072-36012-B9iHZB70,XZB70..LHD..(29S,30S)..WC; HZB70..DX..GCC;HZB70..(23S,25S)..STD..WC;TRB60,70,XZB70..(20S,23S)..GCC; HZB70..LHD..30S; HZB70..LHD..30S;XZB70..LHD..29S201701-201807
MEDIUM BEIGE,TRIM1#; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT,MEDIUM BEIGE,TRIM1#; REAR SEAT-HIGH BACK TYPE,NO.8 SEAT=FOLDING SEAT,MEDIUM BEIGE,TRIM1#; REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S,MEDIUM BEIGE,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
ALGERIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#,NO.2:REFER ILLUST.; BROWN,TRIM1#,NO.2:REFER ILLUST.; TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#,NO.2:REFER ILLUST.; TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#,NO.2:REFER ILLUST.
main71074-36011-B7supersedes 71074-36190-E0iXZB70..LHD..29S;HZB60,70,TRB70..LHD..(24S,26S,30S)201701-202201
GRAY,TRIM1#
main71074-36190-B0iHZB70,XZB70..LHD..(29S,30S)..WC; HZB70..DX..GCC;HZB70..(23S,25S)..STD..WC;TRB60,70,XZB70..(20S,23S)..GCC; HZB70..LHD..30S; HZB70..LHD..30S;XZB70..LHD..29S201807-201908
MEDIUM CHARCOAL,TRIM10; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT,MEDIUM CHARCOAL,TRIM10; REAR SEAT-HIGH BACK TYPE,NO.8 SEAT=FOLDING SEAT,MEDIUM CHARCOAL,TRIM10; REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S,MEDIUM CHARCOAL,TRIM10
main71074-36190-E0supersedes 71074-36011-B7iHZB70,XZB70..LHD..(29S,30S)..WC; HZB70..DX..GCC;HZB70..(23S,25S)..STD..WC;TRB60,70,XZB70..(20S,23S)..GCC; HZB70..LHD..30S; HZB70..LHD..30S;XZB70..LHD..29S201701-201807
MEDIUM BEIGE,TRIM1#; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT,MEDIUM BEIGE,TRIM1#; REAR SEAT-HIGH BACK TYPE,NO.8 SEAT=FOLDING SEAT,MEDIUM BEIGE,TRIM1#; REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S,MEDIUM BEIGE,TRIM1#
ALGERIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#,NO.1:REFER ILLUST.; BROWN,TRIM1#,NO.1:REFER ILLUST.; TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#,NO.1:REFER ILLUST.; TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#,NO.1:REFER ILLUST.
BROWN,TRIM1#; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#
UAE SCHOOL BUS PACKAGE,MEDIUM CHARCOAL,TRIM10,NO.2:REFER ILLUST.
UAE SCHOOL BUS PACKAGE,MEDIUM BEIGE,TRIM10,NO.2:REFER ILLUST.
main71073-36420iHZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC; HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),NO.2:REFER ILLUST.; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST.; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER ONLY),NO.2:REFER ILLUST.; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO),NO.2:REFER ILLUST.; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST.; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),NO.2:REFER ILLUST.
UAE SCHOOL BUS PACKAGE,MEDIUM CHARCOAL,TRIM10,NO.1:REFER ILLUST.
ALGERIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),MEDIUM BEIGE,TRIM1#,NO.1:REFER ILLUST.; TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),MEDIUM BEIGE,TRIM1#,NO.1:REFER ILLUST.
main71074-36220-E0iHZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC; HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#,NO.1:REFER ILLUST.; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#,NO.1:REFER ILLUST.; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#,NO.1:REFER ILLUST.; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO),BROWN,TRIM1#,NO.1:REFER ILLUST.; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#,NO.1:REFER ILLUST.; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#,NO.1:REFER ILLUST.
71108BLEG SUB-ASSY, FRONT SEAT, RH
BLACK,TRIM1#
BLACK,TRIM1#
71149WIRE, FRONT SEAT CUSHION CONNECTING
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-36011iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201
71521PAD, FRONT SEAT CUSHION SILENCER, A
NEPAL SPEC&REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S&SEAT COVER MATERIAL-TRICOT(HIGH GRADE); PAKISTAN SPEC&REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE)
71524PAD, FRONT SEAT CUSHION SILENCER, D
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-36080supersedes 71640-36090iHZB70,XZB70..LHD..(29S,30S)..WC; HZB70..LHD..30S; XZB70..LHD..29S;HZB60,70,TRB70..LHD..(26S,30S); XZB70..LHD..DX..GEN;HZB70..(23S,25S)..WC..GEN;GDB70,TRB60,70..LHD..(6F,6FC)202201
REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE); REAR SEAT-HIGH BACK TYPE,NO.8 SEAT=FOLDING SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE); REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S&SEAT COVER MATERIAL-TRICOT(HIGH GRADE)
main71640-36100iHZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC; HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY); EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER & PASSENGER); EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER ONLY); HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO); TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER & PASSENGER); TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP),BROWN,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP-PRETENSIONER SEAT BELT),BROWN,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BROWN,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&FRONT SEAT-WITH(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP),BROWN,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&FRONT SEAT-WITH(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRP-PRETENSIONER SEAT BELT),BROWN,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&FRONT SEAT-WITH(SEAT BACK BOARD)&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BROWN,TRIM1#
71705BCAP(FOR FRONT SEATBACK BOARD)
EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER ONLY),BLACK,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&FRONT SEAT BELT-WITH(*DRP-PRETENSIONER SEAT BELT),BLACK,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BLACK,TRIM1#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-36060-C1iHZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC; HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO),BROWN,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#
71707BCOVER SUB-ASSY, FRONT SEATBACK BOARD
main71707-36060-E0iHZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC; HZB70..23S..WC..GEN; XZB70..LHD..DX..GEN202201
ALGERIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#; EGYPT SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRSAIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#; HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO),BROWN,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER & PASSENGER),BROWN,TRIM1#; TUNISIA SPEC&HIGH-GRADE PACKAGE(FRONT BLACK OUT SPEC)&CENTER DOOR-GLIDING(AUTO)&SRS AIR BAG-WITH(DRIVER ONLY),BROWN,TRIM1#
71750ATRAY ASSY, FRONT SEAT UNDER
BLACK,TRIM1#
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM1#
71910AHEADREST ASSY, FRONT SEAT
main71910-36081-E1supersedes 71910-60J30-B1iGDB60,HZB60..RHD..GEN; HZB60..RHD; HZB70..LHD..30S; HZB70..RHD..STD; TRB60,70..6F;HZB70..30S..DX;XZB70..LHD..DX..GEN;HZB70..(23S,25S)..WC..GEN;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW); XZB70..29S;HZB70..30S..STD;GDB60,HZB60,TRB70..25S,26S,30S; XZB70..LHD..29S;HZB70..30S..STD..WC202201
BROWN,TRIM1#; COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&SEATCOVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = 3S&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = FIXED SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; REAR SEAT-HIGH BACK TYPE,NO.8 SEAT=FOLDING SEAT&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=3S&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#; REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S&SEAT COVER MATERIAL-TRICOT(HIGH GRADE),BROWN,TRIM1#
main71910-60041-A1iHZB70..30S..DX;HZB70..23S..GEN;XZB70..(23S,25S)..GEN;HZB70,TRB70,XZB70..19S; XZB70..29S,30S;HZB70,XZB70..23S..GCC;HZB70..(25S,30S)..STD;TRB60,70..20S,23S,24S,26S,30S201701-201908
IVORY,TRIM1#; IVORY,TRIM10
GRAY,TRIM10
ALGERIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),IVORY,TRIM1#; IVORY,TRIM1#; TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER ONLY),IVORY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK)&W(BUTTON)
W(LOCK)&W(BUTTON),BLACK,TRIM1#
W(LOCK)&W/O(BUTTON)
W(LOCK)&W/O(BUTTON),BLACK,TRIM1#
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-36010iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201
72140ATRACK ASSY, FRONT SEAT,INNER LH
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-60020iXZB70..SA;XZB70..29S;TRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
BLACK,TRIM1#
9011905008
main90119-05008
9011908079
main90119-08079
9011908080
main90119-08080
9011908873
main90119-08873
9011910037
main90119-10037
9011910578
main90119-10578
9016740044
main90167-40044
9017608039
main90176-08039
9017906208
main90179-06208
9020214007
main90202-14007
9026904010
main90269-04010
9038612051
main90386-12051
9324056014
main93240-56014
9353014025
main93530-14025
9356054012
main93560-54012

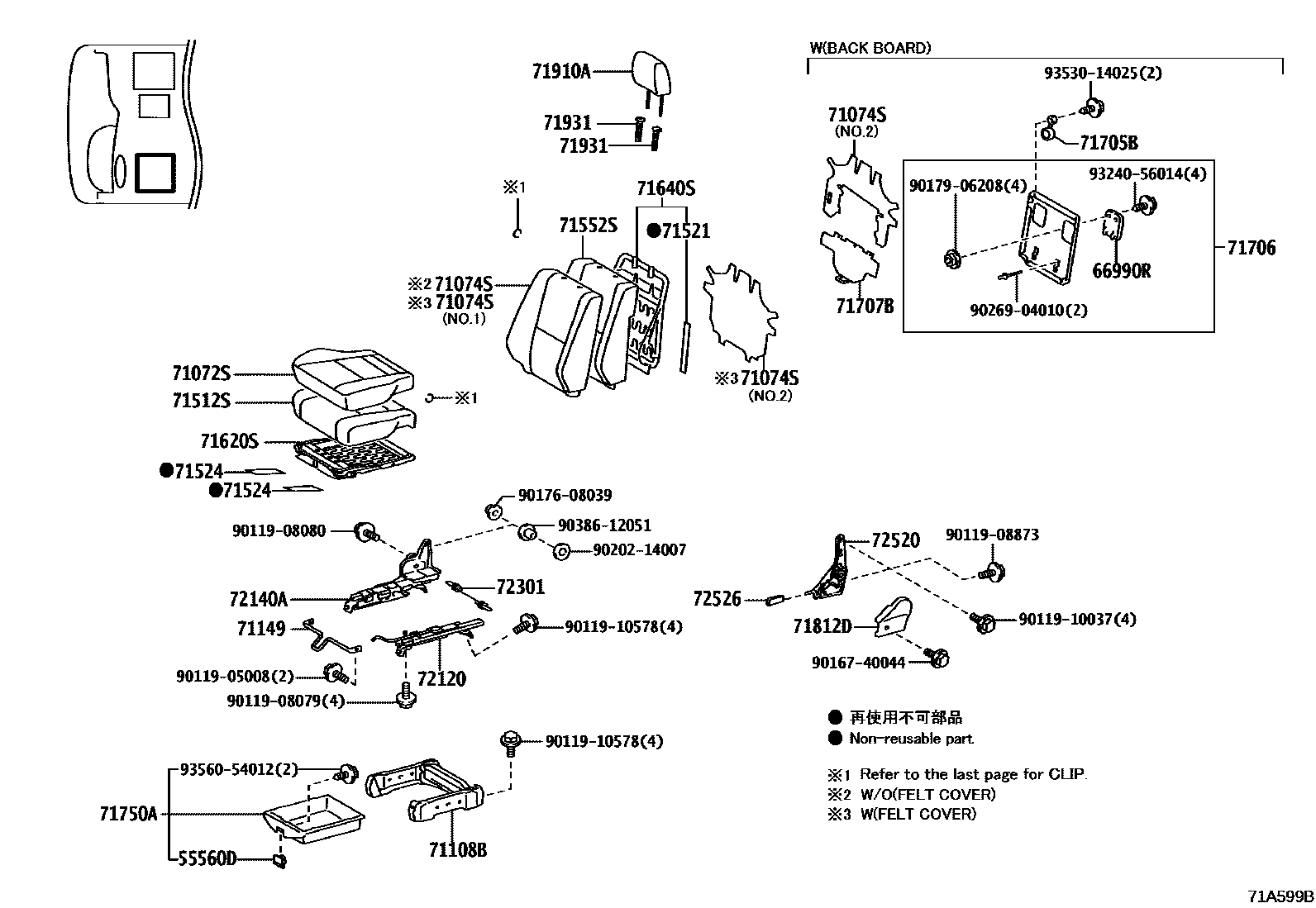

41 parts on this diagram · 48 diagrams in section
