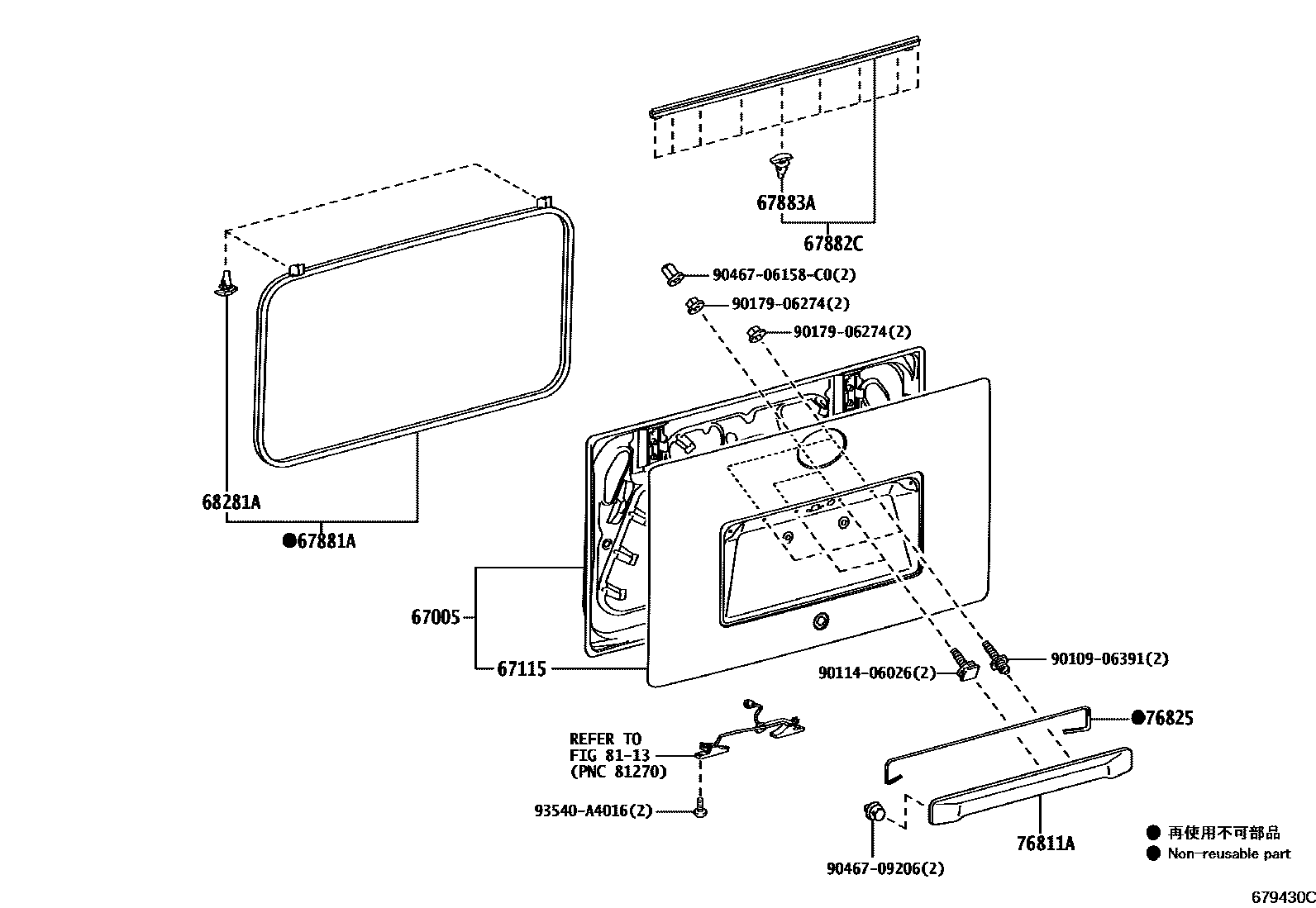

BACK DOOR PANEL & GLASS

0001 1LUGGAGE DOOR 0002 1*DSBD(PANEL) 0003 1*DSBD(BACK DOOR GLASS) 0004 1*DSBD(TRIM)

67005PANEL SUB-ASSY, BACK DOOR

main67008-36070iGDB70..SA202201

main67008-36080iHZB70..RHD..STD201701-202201

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67008-36080iGDB70,TRB70..23S..(6F,6FC)..STD..GCC201701-202201

LUGGAGE & BACK DOOR-*DSBD

main67008-36080iGDB70,TRB70..23S..(6F,6FC)..STD..GCC202201

SAUDIARABIA SPEC

main67008-36080iXZB70..23S..GCC;XZB70..RHD..23S..GEN201701-202412

67115PANEL, BACK DOOR, OUTER

main67118-36050iGDB70..SA202201

main67118-36060iTRB60..GCC;XZB70..(23S,29S)..WC;HZB60,70,TRB70..23S,24S,26S,30S201701-202201

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67118-36060iTRB60..GCC;XZB70..(23S,29S)..WC;HZB60,70,TRB70..23S,24S,26S,30S201701-202201

LUGGAGE & BACK DOOR-*DSBD

main67118-36060iTRB60,XZB70..(23S,26S,30S)..STD..GEN201701-202412

main67118-36060iXZB70..SA;XZB70..29S;HZB70..30S..WOC;XZB70..LHD..DX..GEN;HZB70..(23S,30S)..WC..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70,TRB60,70..LHD..(20S,22S,23S)..(6F,6FC)202201

SAUDIARABIA SPEC

67881AWEATHERSTRIP, BACK DOOR

main67881-36050iBZB60,XZB60201701-202512

main67881-36050iHZB70,XZB80..(01S,25S)..(5F,6FC);TRB70,XZB70..(19S,20S,22S)..5F..(GCC,GEN)201701-202312

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67881-36050iHZB70,XZB80..(01S,25S)..(5F,6FC);TRB70,XZB70..(19S,20S,22S)..5F..(GCC,GEN)201701-202312

LUGGAGE & BACK DOOR-*DSBD

main67881-36050iGDB70,TRB70..19S..(6F,6FC);GDB70,HZB70..(02S,22S,25S)..(GEN,TAIW)202201

FIJI SPEC

main67881-36060iTRB60..GCC;XZB70..(23S,29S)..WC;HZB60,70,TRB70..23S,24S,26S,30S201701-202201

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67881-36060iBB60,XZB60..20S,26S201701-202412

main67881-36060iTRB60..GCC;XZB70..(23S,29S)..WC;HZB60,70,TRB70..23S,24S,26S,30S201701-202201

LUGGAGE & BACK DOOR-*DSBD

main67881-36060iHZB70..RHD..STD202201

SAUDIARABIA SPEC

67882CWEATHERSTRIP, BACK DOOR, NO.2

main67882-36040iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

main67882-36040iHZB70,XZB80..(01S,25S)..(5F,6FC);TRB70,XZB70..(19S,20S,22S)..5F..(GCC,GEN)201701-202312

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67882-36040iHZB70,XZB80..(01S,25S)..(5F,6FC);TRB70,XZB70..(19S,20S,22S)..5F..(GCC,GEN)201701-202312

LUGGAGE & BACK DOOR-*DSBD

main67882-36040iGDB70,TRB70..19S..(6F,6FC);GDB70,HZB70..(02S,22S,25S)..(GEN,TAIW)202201

FIJI SPEC

main67882-36050iXZB70..SA;XZB70..29S;HZB70..30S..WOC;XZB70..LHD..DX..GEN;HZB70..(23S,30S)..WC..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70,TRB60..(20S,22S)..(6F,6FC)..GCC;GDB70,TRB70.201701-202201

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67882-36050iXZB70..SA;XZB70..29S;HZB70..30S..WOC;XZB70..LHD..DX..GEN;HZB70..(23S,30S)..WC..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70,TRB60..(20S,22S)..(6F,6FC)..GCC;GDB70,TRB70.201701-202201

LUGGAGE & BACK DOOR-*DSBD

main67882-36050iXZB70..SA;XZB70..29S;HZB70..30S..WOC;XZB70..LHD..DX..GEN;HZB70..(23S,30S)..WC..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70,TRB60..(20S,22S)..(6F,6FC)..GCC;GDB70,TRB70.202201

SAUDIARABIA SPEC

main67882-36050iTRB60,XZB70..(23S,26S,30S)..STD..GEN201701-202412

67883ARETAINER, BACK DOOR WEATHERSTRIP

main67867-12150iHZB70..RHD..STD201701-202201

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67867-12150iHZB70..RHD..STD202201

SAUDIARABIA SPEC

main67867-12150iXZB70..LHD..29S;HZB70..30S..STD..WC201701-202201

LUGGAGE & BACK DOOR-*DSBD

main67867-12150iXZB70..23S..GCC;XZB70..RHD..23S..GEN201701-202412

68281ARETAINER, BACK DOOR WEATHERSTRIP

main67867-12150iBB60,XZB60..20S,26S201701-202412

main67867-12150iTRB60..GCC;XZB70..(23S,29S)..WC;HZB60,70,TRB70..23S,24S,26S,30S201701-202201

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main67867-12150iTRB60..GCC;XZB70..(23S,29S)..WC;HZB60,70,TRB70..23S,24S,26S,30S201701-202201

LUGGAGE & BACK DOOR-*DSBD

main67867-12150iGDB70,TRB70..23S..(6F,6FC)..STD..GCC202201

SAUDIARABIA SPEC

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-36010iTRB60,70..20S,23S201701-202412

NO PAINT REQ.

main76811-36010iTRB60..GCC;XZB70..(23S,29S)..WC;HZB60,70,TRB70..23S,24S,26S,30S201701-202201

main76811-36020iGDB70..SA202201

NO PAINT REQ.

main76811-36030iTRB70..19S202201-202512

NO PAINT REQ.

main76811-36030iBZB60,XZB60201701-202012

main76811-36030iXZB70..22S..GEN201701-202312

NO PAINT REQ.,LUGGAGE & BACK DOOR-*DSBD

main76811-36030iGDB70..BTN201701-202312

NO PAINT REQ.,LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main76811-36040iGDB70..ARL202201-202512

NO PAINT REQ.

main76811-36040iXZB70..ARL201701-202012

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-36010iXZB70..SA;XZB70..29S;HZB70..30S..WOC;XZB70..LHD..DX..GEN;HZB70..(23S,30S)..WC..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70,TRB60..(20S,22S)..(6F,6FC)..GCC;GDB70,TRB70.201701-202412

main76825-36020iXZB70..22S..GEN201701-202312

LUGGAGE & BACK DOOR-*DSBD(EMERGENCY)

main76825-36020iXZB70..22S..GEN201701-202312

LUGGAGE & BACK DOOR-*DSBD

main76825-36020iXZB70..19S201701-202512

8113

9010906391

main90109-06391

9011406026

main90114-06026

9017906274

main90179-06274

9046706158C0

main90467-06158C0

9046709206

main90467-09206

93540A4016

main93540-A4016

15 parts on this diagram · 4 diagrams in section
