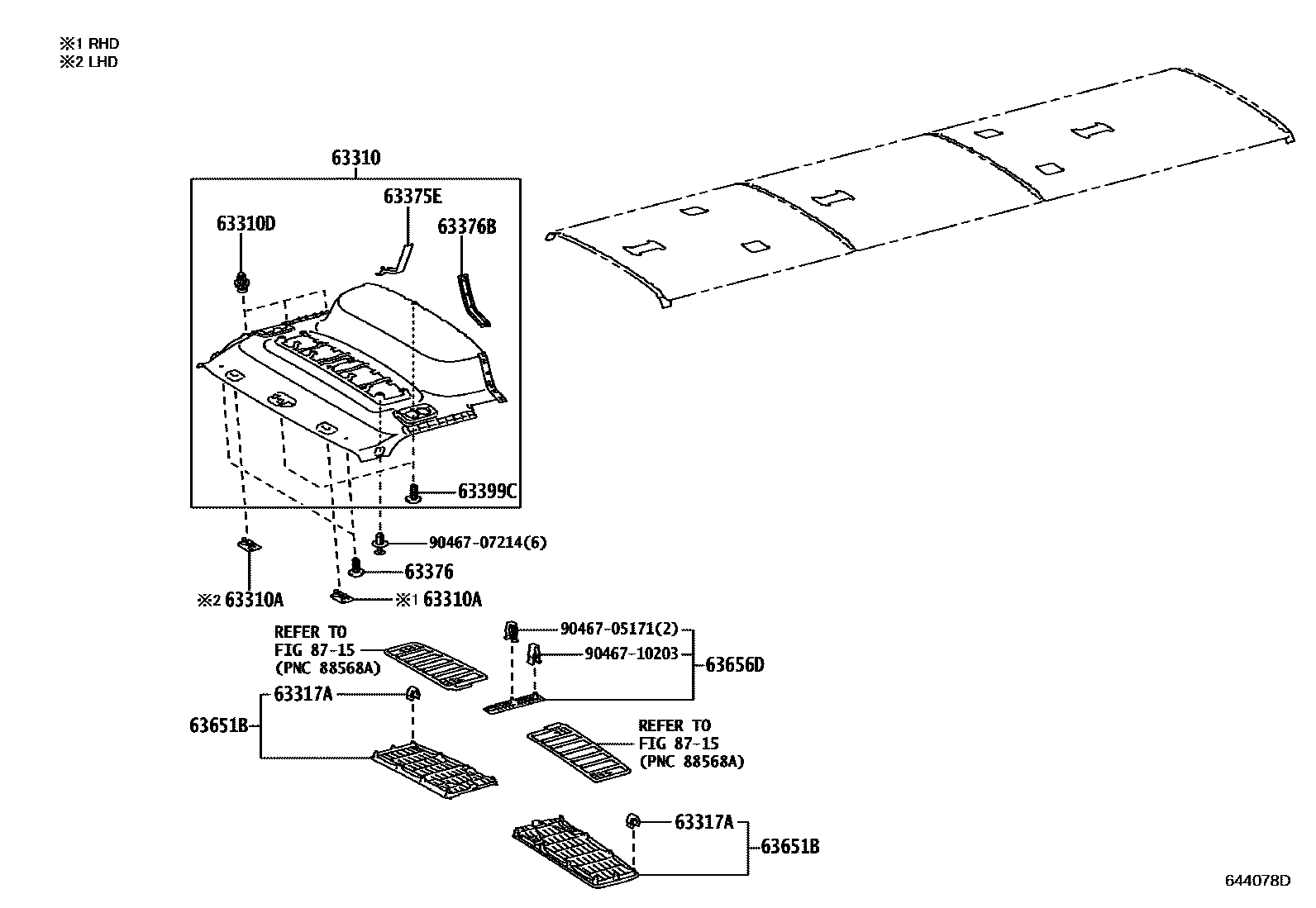

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
LT.GRAY,TRIM1#
main63310-36190-B0supersedes 63310-36070-B1iGDB60,HZB60,70..RHD..WC; GDB60,HZB70..RHD..(25S,30S); GDB70..SA; HZB60..RHD..WC; XZB70..RHD..29S202201
CLOCK-WITH,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&CLOCK-WITH,LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(DRIVER & PASSENGER)&CLOCK-WITH,LT.GRAY,TRIM1#
SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1#
SAUDIARABIA SPEC&FRONT SEAT-ONLY DRIVER SEAT,GRAY,TRIM1#; SAUDIARABIA SPEC&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&FRONT SEAT-ONLY DRIVER SEAT,GRAY,TRIM1#; SAUDIARABIA SPEC&SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&FRONT SEAT-ONLY DRIVER SEAT,GRAY,TRIM1#; SAUDIARABIA SPEC&SUN VISOR-WITH(DRIVER & PASSENGER)&FRONT SEAT-ONLY DRIVER SEAT,GRAY,TRIM1#; SAUDIARABIA SPEC&SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&FRONT SEAT-ONLY DRIVER SEAT,GRAY,TRIM1#; SAUDIARABIA SPEC&SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT& REAR)&FRONT SEAT-ONLY DRIVER SEAT,GRAY,TRIM1#
main63310-36110-B1supersedes 63310-36270-B0iGDB70,HZB70,TRB70..LHD..(23S,30S)..WC..GEN; GDB70,TRB60,70..(6F,6FC)..GCC; XZB70..LHD..(23S,29S)..WC..GEN;GDB70,HZB60,70,TRB70..LHD..WC..GEN; XZB70..LHD..(23S,29S)..WC..GEN;GDB70,HZB70,TRB70..LHD..WC..GEN202201
SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&SRS AIRBAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1#
main63310-36200-B0supersedes 63310-36400-B0iGDB60,HZB70..RHD..(25S,30S); HZB60..RHD..WC; XZB70..RHD..29S202201
CLOCK-WITH,LT.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER)&CLOCK-WITH,LT.GRAY,TRIM1#
main63310-36210-B0iGDB60,HZB60,70..RHD..WC; GDB60,HZB70..RHD..(25S,30S); HZB60..RHD..WC; HZB70..RHD; XZB70..RHD..29S202201
SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER)&CLOCK-WITH,LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&SRS AIRBAG-WITH(DRIVER & PASSENGER)&CLOCK-WITH,LT.GRAY,TRIM1#
CLOCK-WITH,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
main63310-36280-B0supersedes 63310-36270-B0iGDB70,HZB70,TRB70..LHD..(23S,30S)..WC..GEN; GDB70,TRB60,70..(6F,6FC)..GCC202201
SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1#
SAUDIARABIA SPEC&FRONT SEAT-ONLY DRIVER SEAT&CLOCK-WITH,LT.GRAY,TRIM1#; SAUDIARABIA SPEC&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&FRONT SEAT-ONLY DRIVER SEAT&CLOCK-WITH,LT.GRAY,TRIM1#; SAUDIARABIA SPEC&SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&FRONT SEAT-ONLY DRIVER SEAT&CLOCK-WITH,LT.GRAY,TRIM1#; SAUDIARABIA SPEC&SUN VISOR-WITH(DRIVER & PASSENGER)&FRONT SEAT-ONLY DRIVER SEAT&CLOCK-WITH,LT.GRAY,TRIM1#; SAUDIARABIA SPEC&SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&FRONT SEAT-ONLY DRIVER SEAT&CLOCK-WITH,LT.GRAY,TRIM1#; SAUDIARABIA SPEC&SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT& REAR)&FRONT SEAT-ONLY DRIVER SEAT&CLOCK-WITH,LT.GRAY,TRIM1#
CLOCK-WITH,LT.GRAY,TRIM1#
main63310-36310-B0iHZB60,70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN; HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN; HZB70..23S..GCC;TRB60,70,XZB70..GCC201701-202201
SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SUN VISOR-WITH(DRIVER & PASSENGER)&SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#
SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#
CLOCK-WITH,LT.GRAY,TRIM1#
SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER)&CLOCK-WITH,LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER)&CLOCK-WITH,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1#
63310APLUG, HOLE(FOR ROOF HEADLINING ASSY)
LT.GRAY,TRIM1#
63310DCLIP, ROOF HEADLINING
63317ARETAINER, ROOF HEADLINING
63375EMOULDING, ROOF HEADLINING, FRONT RH
LT.GRAY,TRIM1#
main63375-36050-B0iHZB60,70,TRB70..LHD..WC..GEN;GDB70,TRB60,70..LHD..(6F,6FC);XZB70..LHD..(23S,29S)..WC..GEN202201
LT.GRAY,TRIM1#
63376CLIP, HEADLINING
LT.GRAY,TRIM1#
63376BMOULDING, ROOF HEADLINIG, NO.1 LH
LT.GRAY,TRIM1#
main63376-36040-B0iHZB60,70,TRB70..LHD..WC..GEN;GDB70,TRB60,70..LHD..(6F,6FC);XZB70..LHD..(23S,29S)..WC..GEN202201
LT.GRAY,TRIM1#
63399CCLIP, ROOF HEADLINING
main63399-26050-B0×2iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512
LT.GRAY,TRIM1#
63651BNET, AIR INTAKE
LT.GRAY,TRIM1#
63656DCOVER, AIR INTAKE, CENTER
LT.GRAY,TRIM1#
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9046705171
main90467-05171
9046707214
main90467-07214
9046710203
main90467-10203
14 parts on this diagram · 9 diagrams in section
