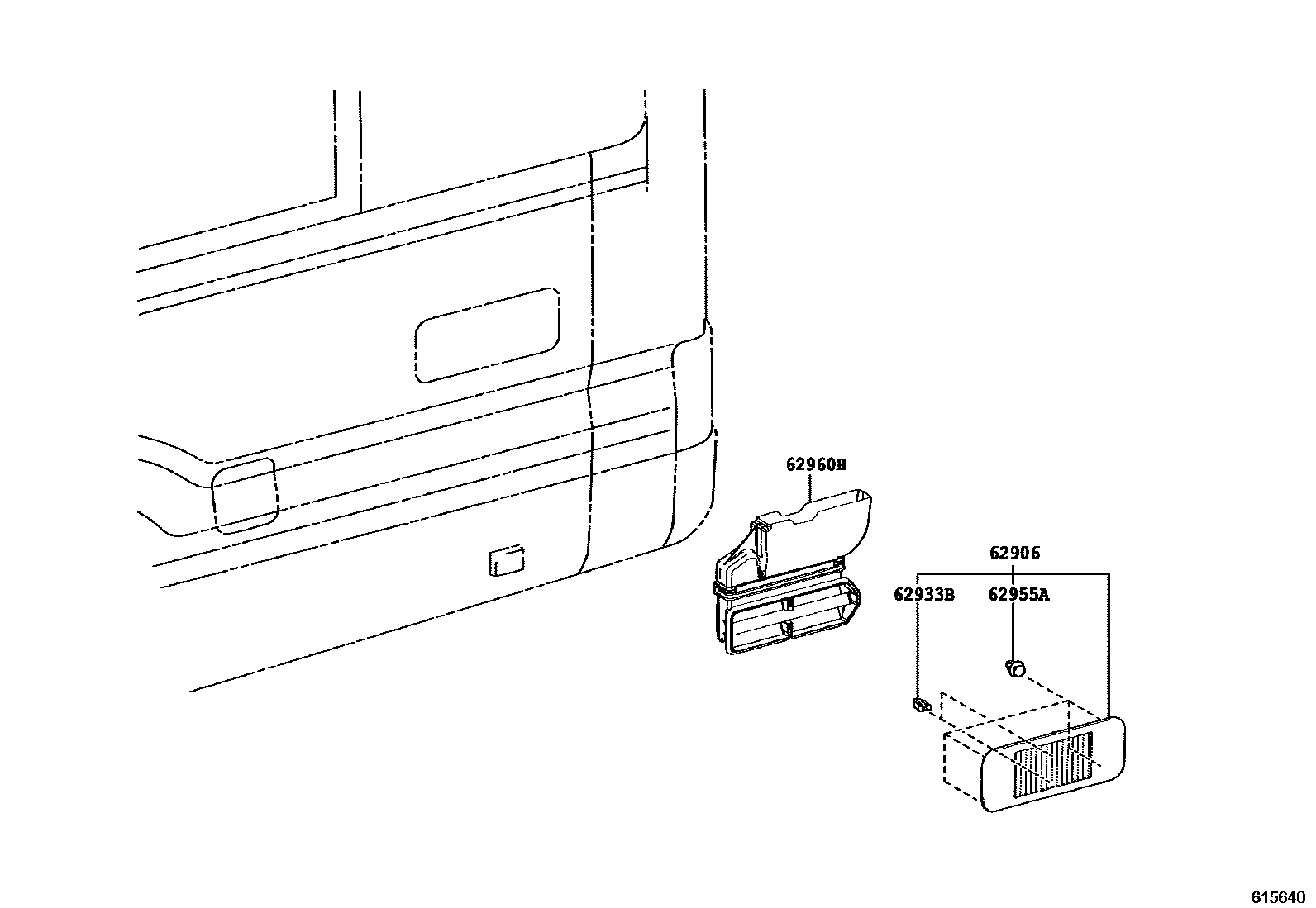

REAR VENTILATOR & ROOF VENTILATOR

62906LOUVER, QUATER VENTILATION, LH

main62906-36040-A0iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW); XZB70..6FC..DX; XZB70..6FC..GEN; XZB70..6FC..STD..ARL201701

WHITE,058; WHITE,058 ,2DT; WHITE,058 ,2DT ,2HL ,2JP; WHITE,058 ,2HL

main62906-36040-B0iTRB70..GCC;HZB70,XZB70..(20S,23S,30S)..5F..(DX,EX)..(GCC,GEN)201701-202201

SILVER M.M.,1E7

main62906-36040-E0iHZB70..DX..GEN;XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC202201

BEIGE ME.,4R4

main62906-36040-F0iXZB70..RHD..DX..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

YELLOW,541

main62906-36040-J0iTRB60,70..GCC202201-202303

LAVENDER BLUE,2KA

main62906-36040-K0iGDB70..STD..GEN;XZB70..20S..5F..STD202201-202409

P.L.B CREAM,9A8

62933BCLIP, QUARTER VENT DUCT

main90467-05171×2iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

62955ARETAINER, QUARTER VENT LOUVER

main62955-50010×4iBZB60,XZB60201701-201712

62960HDUCT ASSY, QUARTER VENT, NO.2 LH

main62960-36040iTRB70..WOC;XZB70..GCC;HZB70..23S..GCC202201-202412

4 parts on this diagram · 1 diagram in section
